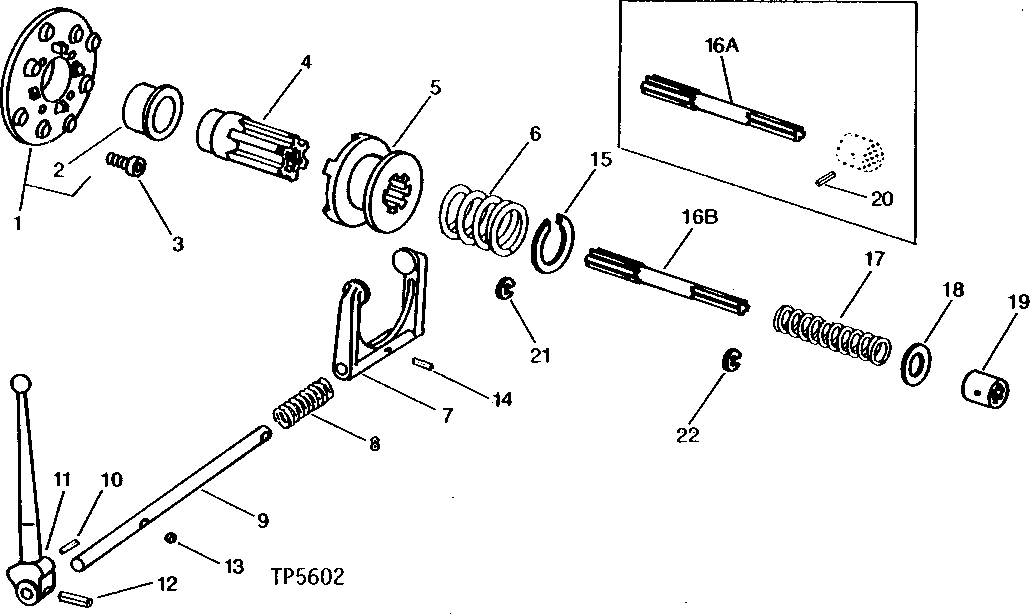

HYDRAULIC PUMP DRIVE AND DISCONNECT [G15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T21399	1	FITTING	(ALSO ORDER T21375)
1	-	1	Part 1	(MARKED T21399) (WHEN AT18368 IS NO LONGER AVAILABLE,ORDER T21399 AND T21375)
2	T21375	1	BUSHING	-
3	19H3295	4	Screw	(SUB FOR M2502T)
4	-	1	Part 5	(T21131 NO LONGER AVAILABLE)
5	T21132	1	SPLINED COUPLING	-
6	T19649	1	SPRING	-
7	T21135	1	FORK	-
8	M2085T	1	Spring	-
9	T21134	1	PIN FASTENER	-
10	34H276	1	SPRING PIN	3/16" X 9/16"
11	T21136	1	LEVER	-
12	25H52	1	GROOVE PIN	5/32" X 1"
13	R42849	1	Ball	-
14	25H50	1	Groove Pin	5/32" X 3/4"
15	-	1	Part 16	(H26253 NO LONGER AVAILABLE)
17	T21217	1	SPRING	(USED WITH T24852 OR T24851 SHAFT)
18	24H1378	1	Washer	11/16" X 1-15/32" X 0.134", (USED WITH T24852 SHAFT)
19	T24849	1	SPLINED COUPLING	(USED WITH DOZER) (9 SPLINES)
19	T24850	1	SPLINED COUPLING	(USED WITH LOADER) (13 SPLINES)
20	34H266	1	Spring Pin	5/32" X 1", (USED WITH DOZER)
20	34H283	1	Spring Pin	3/16" X 1-1/8", (USED WITH LOADER)
21	P46402	1	Snap Ring	-
22	F2863R	1	Snap Ring	(WITH DOZER) (USE WITH T105548)
22	P46402	1	Snap Ring	(WITH LOADER) (USE WITH T105547)
16A	T43581	1	SHAFT	(WITH DOZER) (SUB FOR T24852) (SUB T105548 AND F2863R)
16A	T43582	1	SHAFT	(WITH LOADER) (SUB FOR T24851) (SUB T105547 AND P46402)
16B	T105548	1	SHAFT	(SUB FOR T68156) (WITH DOZER)
16B	T105547	1	SHAFT	(SUB FOR T68158) (WITH LOADER)

HYDRAULIC PUMP DRIVE AND DISCONNECT [G15]
