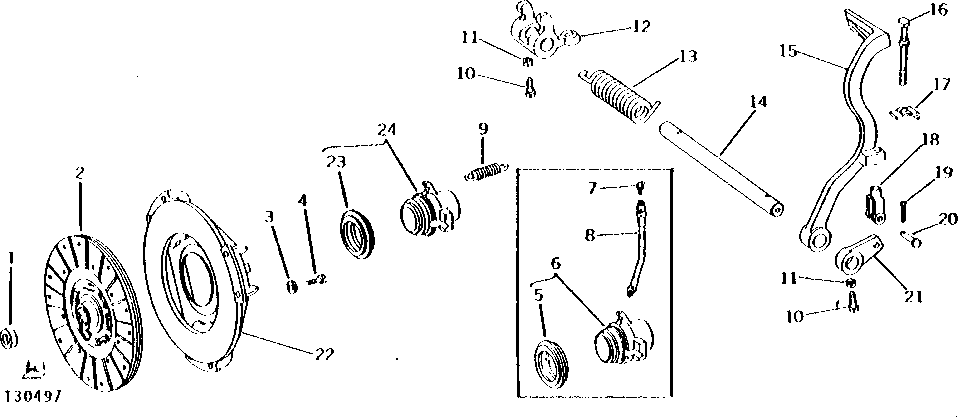

ENGINE CLUTCH AND PRESSURE PLATE 279 MM (11 IN.) [D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9449	1	Ball Bearing	(SUB FOR JD9281)
2	AT160477	1	CLUTCH DISK	(SUB FOR AT33424, AT82040 AND AT117816) (USE WITH AT30757, AT35213 AND AT43120)
3	12H303	6	Lock Washer	5/16"
4	L372T	6	CAP SCREW	5/16" X 7/8"
5	AM3983T	1	THRUST BEARING	-
6	AT32522	1	PLANET PINION CARRIER	WITH BEARING, (MARKED T33322)
7	JD7781	1	Lubrication Fitting	1/8"
8	T20900	1	Hose	-
9	M226T	1	Spring	-
10	T21321	2	SET SCREW	-
11	14H849	2	Nut	7/16"
12	T34846	1	FORK	-
13	T33883	1	SPRING	(SUB FOR T20837)
14	T23997	1	PIN FASTENER	-
15	T44340	1	PEDAL	(SUB FOR T20840) (WITH HAND STEERING)
16	AT18768	1	ADJUSTER	-
17	T21154	1	ANGLE	-
18	T21158	1	Yoke	-
19	11M7059	1	Cotter Pin	3.200 X 20 MM
20	R72855	1	Pin Fastener	(SUB FOR T10187)
21	T67054	1	LEVER	(SUB FOR T23996)
22	AT43120	1	CLUTCH PLATE	(SUB FOR AT30757 AND AT35213, THIS APPLICATION) (SUB AT104345, THIS APPLICATION)
23	AR41942	1	Thrust Bearing	-
24	AT35199	1	SUPPORT	WITH BEARING, (MARKED T36243)

ENGINE CLUTCH AND PRESSURE PLATE 279 MM (11 IN.) [D17]
