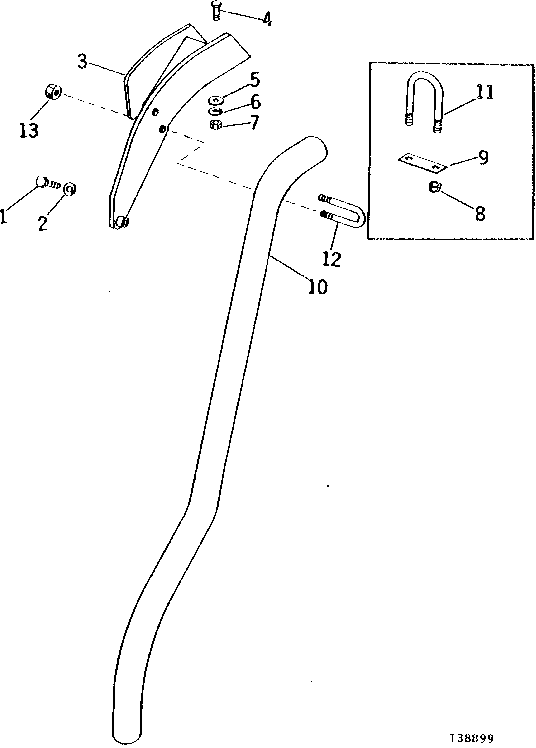

CANOPY MUFFLER STACK EXTENSION (WHEN TRACTOR IS EQUIPPED WITH DOZER) [B25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	2	Cap Screw	(A) 3/8" X 1"
2	12H304	2	Lock Washer	(A) 3/8"
3	AT19218	1	SHIELD	(A) (SUB T37048 AND AT35839)
3	AT35839	1	HEAT SHIELD	(C)
4	19H2898	1	Cap Screw	(A) (C) 1/2" X 1-1/4"
5	24H1211	1	Washer	(A) (C) 9/16" X 1-3/8" X 0.105"
6	12H301	1	Lock Washer	(A) (C) 1/2"
7	14H1040	1	Nut	(A) (C) 1/2", (SUB FOR 14H809)
8	T11234	2	Lock Nut	(A)
9	T23718	1	STRAP	(A)
10	T23719	1	EXTENSION	(A)
10	T37048	1	EXHAUST PIPE	(C)
11	T23717	1	U-BOLT	(A)
12	T23717	1	U-BOLT	(C)
13	U13184	2	Lock Nut	(C)
..	AT19221	1	EXTENSION	(SUB AT35842) (CONTAINS ALL PARTS IDENTIFIED BY (A) (AT35842 NO LONGER AVAILABLE)
..	AT35842	1	EXTENSION	(CONTAINS ALL PARTS IDENTIFIED BY (C) (AT35842 NO LONGER AVAILABLE)

CANOPY MUFFLER STACK EXTENSION (WHEN TRACTOR IS EQUIPPED WITH DOZER) [B25]
