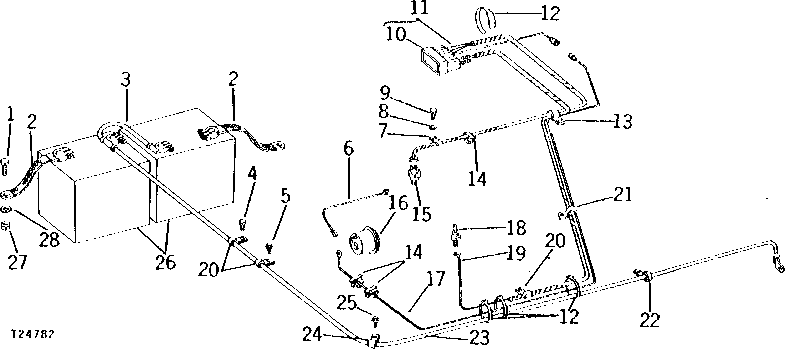

BATTERY CABLES AND HOUR METER WIRING HARNESS (SERIAL NO. -142199) [J06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03H1765	1	Bolt	3/8" X 3/4"
2	AT18702	1	GROUND CABLE	1 OR (AS REQUIRED)
3	AT25403	1	CABLE	8-1/2" LONG (USED WITH TWO BATTERIES) (SUB AT25420)
4	19H1813	1	CAP SCREW	5/16" X 5/8"
5	37H29	1	Screw	5/16" X 5/8"
6	AT18715	1	WIRING LEAD	GROUND, HOUR METER
7	R42357	1	CLAMP	(USED WITHOUT POWER STEERING)
7	R44302	1	Tie Band	(USED WITH POWER STEERING)
8	12H304	1	Lock Washer	3/8"
9	19H2038	1	Cap Screw	3/8" X 1/2"
10	T21203	1	TERMINAL	-
11	AT18705	1	WIRING HARNESS	SAFETY SWITCH AND HOUR METER
12	R44302	5	Tie Band	-
13	T13814	1	Clamp	-
14	T41072	4	CLIP	(SUB FOR M644T, THIS APPLICATION)
15	AT14407	1	SWITCH	-
16	AT160120	1	HOUR METER	(SUB FOR AT30152 OR AT61458)
17	AT18984	1	WIRING LEAD	-
18	AT28163	1	SENDER	TRANSMISSION TEMP.
19	AT18982	1	WIRING LEAD	TRANSMISSION TEMP. UNIT TO CONNECTOR
20	T21101	3	Clamp	-
21	T13913	1	Clip	-
22	T20985	1	CLIP	-
23	AT18703	1	BATTERY CABLE	92" LONG
24	T13073	1	Clip	-
25	19H1648	1	Cap Screw	3/8" X 3/4"
26	AT29159	1	DRY CHARGED BATTERY	12-VOLT, 475 COLD CRANKING AMPS AT 0° F., 150-MINUTE RESERVE CAPACITY AT 25 AMPS
27	14H812	1	NUT	3/8"
28	24H1302	1	Washer	13/32" X 11/16" X 0.035"

BATTERY CABLES AND HOUR METER WIRING HARNESS (SERIAL NO. -142199) [J06]
