Открытый узел

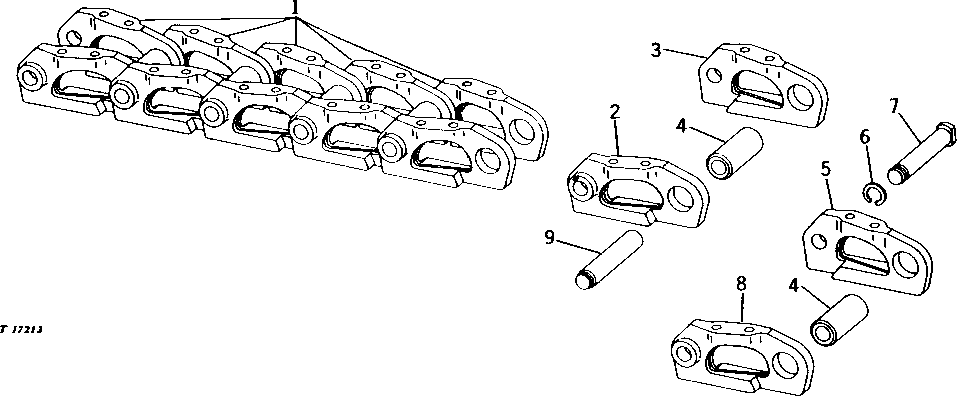

TRACK ASSEMBLY (WITH HEADED MASTER PIN) [02A17]

TRACK ASSEMBLY (WITH HEADED MASTER PIN) [02A17]

TRACK ASSEMBLY (WITH HEADED MASTER PIN) [02A17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

TRACK ASSEMBLY (WITH HEADED MASTER PIN) [02A17]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT41740	1	LINK CHAIN	(SUB FOR AT18826 AND AT30712) (SUB AT113052, T74185, (2) T105131 AND (4) T105117) (CHAIN ASSEMBLY WITH HEADLESS MASTER PIN)
2	T20605	1	TRACK LINK	LEFT (35 PER TRACK)
3	T20604	1	TRACK LINK	RIGHT (35 PER TRACK)
4	T23889	1	MASTER TRACK BUSHING	(36 PER TRACK)
5	T20606	1	MASTER LINK-RH	RIGHT
6	B1402R	1	SNAP RING	(SUB FOR F215R)
7	T20600	1	MASTER TRACK PIN	-
8	T20607	1	NON-STRUTTED LINK-LH	LEFT
9	T23888	1	TRACK PIN	(35 PER TRACK)
..	AT37314	1	RUBBER TRACK BELT	330 MM (13") RUBBER SHOES (36 SHOES) (SUB AT57225 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT22881 AND AT45091)
..	AT37316	1	RUBBER TRACK BELT	406 MM (16") OPEN CENTER TRIPLE SEMI-GROUSER SHOES (36 SHOES) (SUB AT57226 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT21902 AND AT45092)
..	AT37317	1	RUBBER TRACK BELT	406 MM (16") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (SUB AT57229 TRACK AND T104600 SPROCKET) (SUB FOR AT18937 AND AT45094)
..	AT37319	1	RUBBER TRACK BELT	457 MM (18") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (SUB AT57231 TRACK AND T104600 SPROCKET) (SUB FOR AT18889 AND AT45096)
..	AT37318	1	RUBBER TRACK BELT	457 MM (18") GROUSER HARDENED SHOES (SUB AT57230 TRACK AND T104600 SPROCKET) (SUB FOR AT18370 AND AT45095)
..	AT44166	1	FLAT SHOE	356 MM (14") OPEN CENTER TRIPLE SEMI-GROUSER SHOES (36 SHOES) (SUB AT57234 TRACK AND T104600 SPROCKET) (SUB FOR AT18363 AND AT45099)
..	AT37315	1	RUBBER TRACK BELT	406 MM (16") GROUSER HARDENED SHOE (36 SHOES) (SUB AT57228 TRACK AND T104600 SPROCKET) (SUB FOR AT18337 AND AT45093)
..	AT44167	1	FLAT SHOE	406 MM (16") NOTCHED GROUSER OPEN CENTER HARDENED SHOE (36 SHOES) (SUB AT57238 TRACK AND T104600 SPROCKET) (SUB FOR AT18336 AND AT45103)
..	-	1	Part 10	356 MM (14") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (SUB FOR AT18335 AND AT45101) (AT44168 NO LONGER AVAILABLE)
