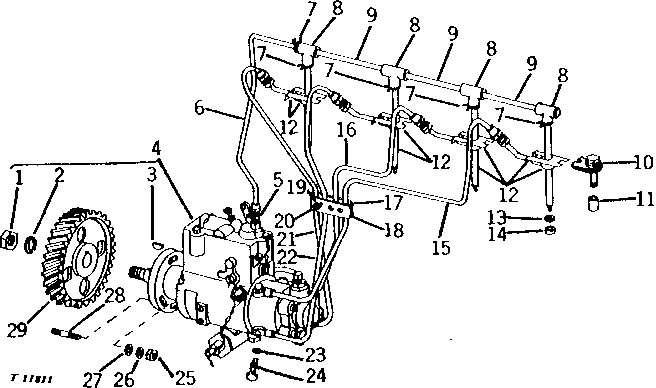

ROOSA-MASTER FUEL INJECTION SYSTEM (SERIAL NO. -35199) [01D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H832	1	Nut	9/16"
2	12H317	1	Lock Washer	9/16"
3	26H10	1	Shaft Key	5/32" X 5/8"
4	AT18026	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. DBGFC431-2DH) (SUB AR70144)
4	AR70144	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. DBGFC431-25AJ)
5	R35352	1	Fitting	-
6	AT20286	1	FUEL LINE	-
7	R34766	12	Clamp	-
8	T23425	4	BOOT	-
9	T23422	3	TUBE	-
10	R34760	4	CLAMP	(K) WITH SCREW AND WASHER
11	R34761	4	SPACER	(K) (SUB RE32011)
12	AR89564	4	INJECTION NOZZLE	(ROOSA-MASTER NOS. 17427, 17511, 17579, 18457, 18742, 19762, 20500, 20631, 22042, OR 22202) (SUB FOR AT18064, AT25502, AT30299, AR49877, AR56290 AND AR73673)
13	R34764	4	WASHER	(K) UPPER, (USE WITH AR56290 AND AR89564) (SUB RE32011)
13	R60746	4	WASHER	UPPER, (USE WITH AR73673 AND AR88239)
14	R48000	4	Seal	LOWER, (SUB FOR R34767)
15	AT18176	1	FUEL LINE	FUEL INJECTION NO. 4
16	AT18175	1	FUEL LINE	FUEL INJECTION NO. 3
17	T23463	1	STRAP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
17	R61146	1	STRAP	-
17	R59299	1	CLAMP	-
18	T23462	1	CLAMP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
18	R59299	1	CLAMP	-
18	R59300	1	STRAP	-
19	12H246	3	LOCK WASHER	0.190", (USE WITH T23462 AND T23463)
20	21H1317	3	SCREW	0.190" X 5/8", (USE WITH T23462 AND T23463)
20	AR76704	3	SCREW	WITH WASHER
21	AT18173	1	FUEL LINE	FUEL INJECTION NO. 1
22	AT18174	1	FUEL LINE	FUEL INJECTION NO. 2
23	T20055	8	WASHER	-
24	R26726	4	HOLLOW SCREW	-
25	14H812	2	NUT	3/8"
26	12H304	2	Lock Washer	3/8"
27	24M7096	2	Washer	0.413" X 0.709" X 0.063"
28	T20052	2	STUD	-
29	R84663	1	GEAR	(SUB FOR T20165) (48 TEETH)

ROOSA-MASTER FUEL INJECTION SYSTEM (SERIAL NO. -35199) [01D17]
