Открытый узел

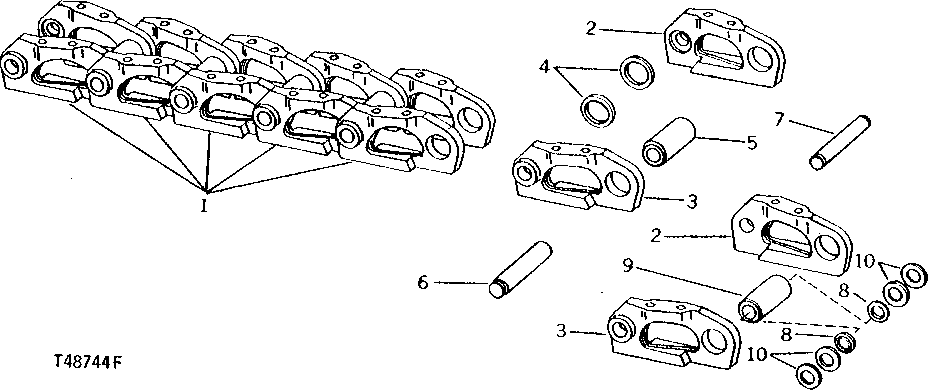

REPLACEMENT TRACK CHAIN (COUNTERBORE WITH HEADLESS MASTER PIN) [02A19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT113052	1	TRACK CHAIN W/O SHOES	(SUB FOR AT56689 AND AT113079) (ALSO ORDER T74185, (2) T105131 AND (4) T105117)
2	T42832	1	NON-STRUTTED LINK-RH	RIGHT (36 PER TRACK)
3	T42827	1	NON-STRUTTED LINK-LH	LEFT (36 PER TRACK)
4	T60841	2	WASHER	(USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN) (SUB FOR T49874)
5	T52362	1	BUSHING	(B) (35 PER TRACK)
6	T42838	1	TRACK PIN	(B) (35 PER TRACK)
7	-	1	Part 7	(B) (SUB AT56694 MASTER PIN KIT)
8	T60841	2	WASHER	(B) (SUB FOR T49874)
9	T42837	1	MASTER TRACK BUSHING	(B) (ONE USED WITH TRACK END LINK OR ONE USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN)
10	T42828	144	SPRING WASHER	(B)
..	AT56690	1	PIN & BUSHING KIT	PIN AND BUSHING REPAIR
..	AT56694	1	PIN, SEAL & BUSHING KIT	MASTER PIN
..	AT57225	1	RUBBER TRACK BELT	330 MM (13") RUBBER SHOES (36 SHOES) (ALSO ORDER T178481 SPROCKET)
..	AT57226	1	RUBBER TRACK BELT	406 MM (16") OPEN CENTER TRIPLE SEMI-GROUSER SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	AT57229	1	RUBBER TRACK BELT	406 MM (16") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	AT57231	1	RUBBER TRACK BELT	457 MM (18") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	AT57230	1	RUBBER TRACK BELT	457 MM (18") GROUSER HARDENED SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	AT57234	1	RUBBER TRACK BELT	356 MM (14") OPEN CENTER TRIPLE SEMI-GROUSER SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	AT57228	1	RUBBER TRACK BELT	406 MM (16") GROUSER HARDENED SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	AT57238	1	RUBBER TRACK BELT	406 MM (16") NOTCHED GROUSER OPEN CENTER HARDENED SHOE (36 SHOES) (ALSO ORDER T104600 SPROCKET)
..	-	1	Part 11	356 MM (14") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (ALSO ORDER T104600 SPROCKET) (AT57236 NO LONGER AVAILABLE)

REPLACEMENT TRACK CHAIN (COUNTERBORE WITH HEADLESS MASTER PIN) [02A19]

Нет текстового описания
