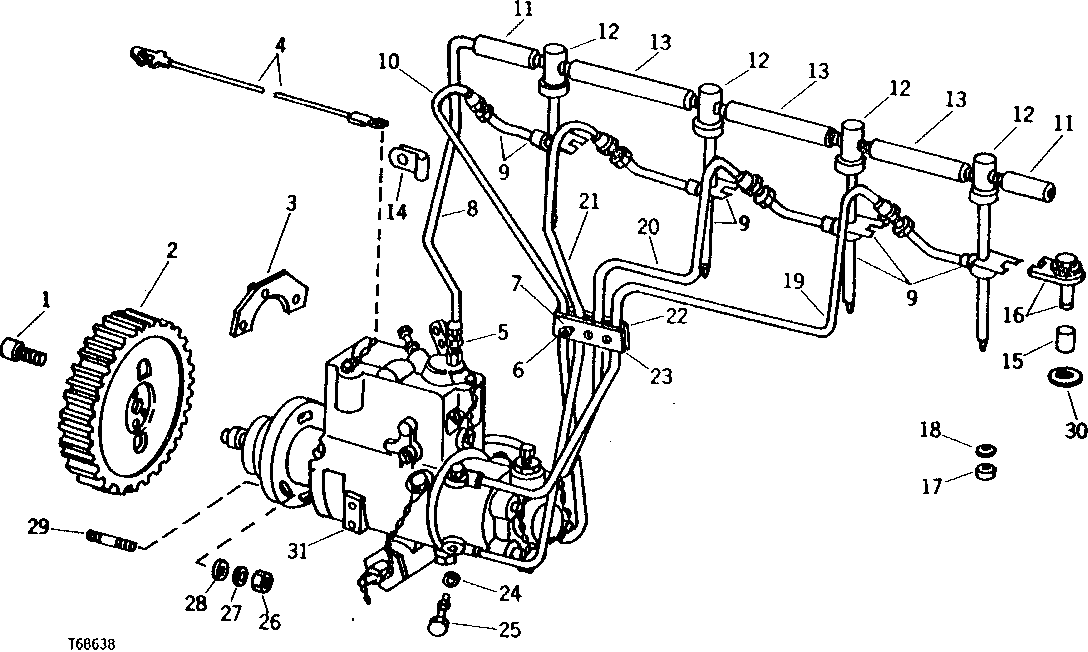

REPLACEMENT PARTS FOR FUEL INJECTION SYSTEM CONVERSION (SERIAL NO. 35200- ) [01D24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R58104	3	SCREW	-
2	T24772	1	GEAR	(48 TEETH)
3	AR69830	1	CLAMP	-
4	AR49907	1	WIRING LEAD	-
5	R35352	1	Fitting	-
6	21H1317	3	SCREW	0.190" X 5/8", (USE WITH T23462 AND T23463)
6	AR76704	3	SCREW	WITH WASHER
7	12H246	3	LOCK WASHER	0.190", (USE WITH T23462 AND T23463)
8	AT27616	1	FUEL LINE	-
9	AR89564	1	INJECTION NOZZLE	(SUB FOR AR56290, AR73673 AND AR88239)
10	AT18173	1	FUEL LINE	FUEL INJECTION NO. 1
11	-	2	Part 12	(MAKE FROM R68281, 1 524 MM (5 FT.) HOSE)
12	AT27622	4	CAP	-
13	-	3	Part 14	(MAKE FROM R68281, 1 524 MM (5 FT.) HOSE)
14	T29527	1	Clamp	-
15	R34761	4	SPACER	(K) (SUB RE32011)
16	R34760	4	CLAMP	WITH SCREW AND WASHER
17	R48000	4	Seal	LOWER
18	R60746	4	WASHER	UPPER, (USE WITH AR73673 AND AR88239)
18	R34764	4	WASHER	(K) UPPER, (USE WITH AR56290 AND AR89564) (SUB RE32011)
19	AT18176	1	FUEL LINE	FUEL INJECTION NO. 4
20	AT18175	1	FUEL LINE	FUEL INJECTION NO. 3
21	AT18174	1	FUEL LINE	FUEL INJECTION NO. 2
22	T23463	1	STRAP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
22	R59299	1	CLAMP	-
22	R61146	1	STRAP	-
23	R59300	1	STRAP	-
23	R59299	1	CLAMP	-
23	T23462	1	CLAMP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
24	T20055	8	WASHER	-
25	R26726	4	HOLLOW SCREW	-
26	14H785	2	Nut	5/16"
27	12H303	2	Lock Washer	5/16"
28	24H1685	2	Washer	11/32" X 47/64" X 0.083"
29	T23442	2	Stud	-
30	24H1685	4	Washer	11/32" X 47/64" X 0.083"
31	-	1	Part 37	(AR69820 NO LONGER AVAILABLE) (ROOSA-MASTER NO. JDB435AL2727) (WITH TURBOCHARGER)
31	AR69819	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. JDB431AL2731) (WITHOUT TURBOCHARGER)
