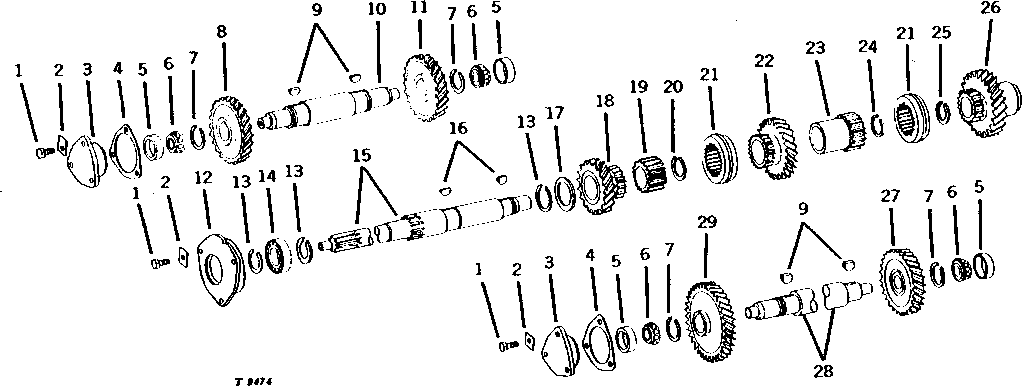

RANGE CHANGE GEARS AND SHAFTS (CONSTANT-MESH TRANSMISSION) [01G04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	9	Cap Screw	HS, SAE 8, 3/8" X 1"
2	R1888R	9	STRAP	-
3	T13162	2	BEARING HOUSING W/O BEARING	-
4	T12793	1	SHIM	0.05 MM (.002")
4	T12794	1	SHIM	0.13 MM (.005")
4	T12795	1	SHIM	0.25 MM (.010")
5	JD8226	4	Bearing Cup	-
6	JD8188	4	Bearing Cone	-
7	B1402R	4	SNAP RING	(SUB FOR F215R)
8	T18083	1	GEAR	FRONT (38 TEETH)
9	26H82	4	Shaft Key	1/4" X 7/8"
10	-	1	Part 12	(T18040 NO LONGER AVAILABLE) REVERSE
11	-	1	Part 13	(T18082 NO LONGER AVAILABLE) REAR (37 TEETH)
12	-	1	Part 14	(T20782 NO LONGER AVAILABLE)
13	F267R	3	Snap Ring	-
14	JD8510	1	Ball Bearing	-
15	T20780	1	DRIVE SHAFT	FRONT INPUT
16	26H78	2	Shaft Key	1/4" X 3/4"
17	-	1	Part 19	(T20781 NO LONGER AVAILABLE)
18	AT15767	1	PINION	(MARKED T17531) LOW RANGE, WITH BUSHINGS (18 AND 28 TEETH)
19	-	1	Part 21	(T15820 NO LONGER AVAILABLE) LOW AND REVERSE RANGE COLLAR (18 TEETH)
20	T14647	1	SNAP RING	-
21	T17532	2	SHIFT COLLAR	-
22	AT14897	1	PINION	(MARKED T16649) REVERSE, WITH BUSHINGS (18 AND 32 TEETH)
23	-	1	Part 25	HIGH RANGE COLLAR (18-TEETH) (T21314 NO LONGER AVAILABLE)
24	T14648	1	SNAP RING	-
25	T13179	1	SNAP RING	-
26	T16646	1	GEAR	REAR INPUT SHAFT, FRONT (18 AND 31 TEETH)
27	T18081	1	STEERING GEAR	REAR (38 TEETH)
28	-	1	Part 30	(T18039 NO LONGER AVAILABLE) UNDERDRIVE
29	T18085	1	GEAR	FRONT (42 TEETH)

RANGE CHANGE GEARS AND SHAFTS (CONSTANT-MESH TRANSMISSION) [01G04]

Нет текстового описания
