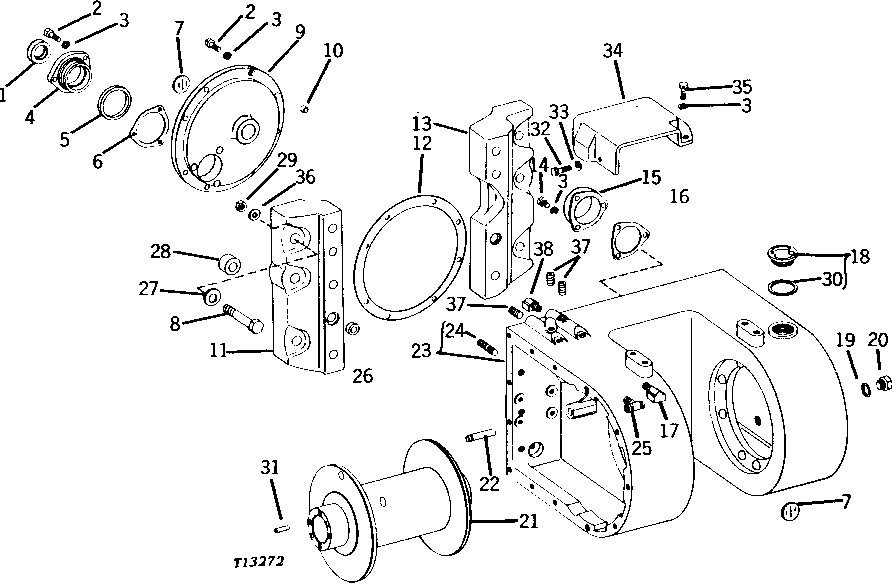

NO. 3320 MANUAL WINCH HOUSING, ADAPTERS AND DRUM [01G24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT14831	1	SEAL	-
2	19H3483	11	Cap Screw	3/8" X 1-1/8"
3	12H304	16	Lock Washer	3/8"
4	T16351	1	BEARING HOUSING W/O BEARING	(SUB T32265 AND M4237T)
4	T32265	1	BEARING HOUSING W/O BEARING	-
5	M2374T	1	WASHER	-
5	M4237T	1	O-Ring	-
6	-	1	Part 8	(A) 0.05 MM (.002") ( T16361 NO LONGER AVAILABLE)
6	-	1	Part 9	(A) 0.13 MM (.005") ( T16362 NO LONGER AVAILABLE)
6	-	1	Part 10	(A) 0.25 MM (.010") ( T16363 NO LONGER AVAILABLE)
7	30H23	2	PLUG	1-3/4"
8	19H1425	6	CAP SCREW	3/4" X 2-3/4"
9	T29778	1	COVER	(SUB FOR T17546)
10	M2152T	1	WASHER	-
11	T21209	1	ADAPTER	LEFT
12	-	1	Part 16	(MAKE FROM T43514 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T16388) GEAR COVER
13	T21208	1	ADAPTER	RIGHT
14	19H2021	3	Cap Screw	3/8" X 5/8"
15	T16365	1	COVER	-
16	T16370	1	GASKET	-
17	M3852T	1	ELBOW FITTING	-
18	AM1935T	1	FITTING PLUG	-
19	T13213	2	WASHER	-
20	M1746T	2	Drain Plug	-
21	-	1	Part 25	(T19620 NO LONGER AVAILABLE)
22	-	1	Part 26	(T18963 NO LONGER AVAILABLE)
23	-	1	Part 27	(AT21220 NO LONGER AVAILABLE) (MARKED T23645) WINCH, WITH STUDS AND PLUGS
24	T15662	9	STUD	5/8" X 2-5/8"
25	T23866	1	TEE FITTING	-
26	M14T	2	WASHER	-
27	T10510	6	Washer	(USE IF AVAILABLE)
27	R78019	6	Washer	(SUB FOR T10510)
28	T15239	2	BUSHING	-
29	14H760	9	Nut	5/8"
30	M2133T	1	GASKET	-
31	T19622	3	DOWEL PIN	-
32	19H2454	2	Cap Screw	7/16" X 1-5/8"
33	12H293	2	Lock Washer	7/16"
34	-	1	Part 39	(T18906 NO LONGER AVAILABLE)
35	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
36	F2783R	9	WASHER	-
37	15H558	3	Pipe Plug	1/8"
38	M3852T	1	ELBOW FITTING	-
