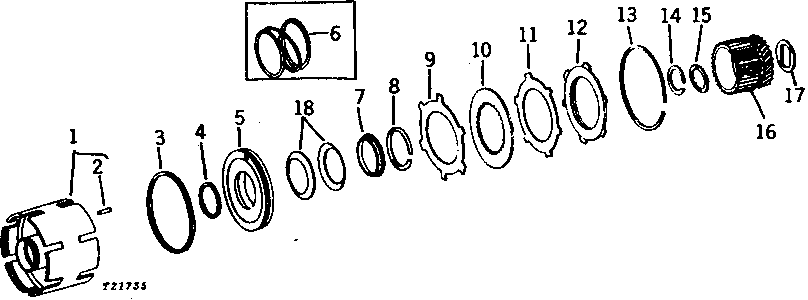

LOW RANGE PINION (HI-LO-REVERSE TRANSMISSION) [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR48376	1	DRUM	REVERSE AND LOW RANGE CLUTCH, WITH PIN
2	R32690	1	PIN	-
3	R27789	1	PISTON RING	OUTER, (USE WITH R40183)
3	R46218	1	Seal	OUTER, (USE WITH R46213)
4	R33246	1	Seal	INNER
5	R40183	1	PISTON	CLUTCH, (SUB R46213 AND R46218)
5	R46213	1	PISTON	(REPLACEMENT PART FOR R40183)
6	R31359	1	SPRING	(SUB R46213 AND (4) R33518)
7	R33114	1	ROUND RETAINER	-
8	R33247	1	Snap Ring	-
9	R90644	2	Clutch Plate	(SUB FOR R31373)
10	RE23000	4	CLUTCH DISK	(SUB FOR R31404, THIS APPLICATION)
11	R57345	3	Clutch Plate	(SUB FOR R39325 AND R32313, THIS APPLICATION)
12	R32692	1	CLUTCH PLATE	-
13	T141680	1	Snap Ring	(SUB FOR R31289, THIS APPLICATION)
14	F2197R	1	Snap Ring	-
15	T127304	1	Thrust Washer	(SUB FOR R31293)
16	-	1	Part 18	LOW RANGE, WITH CLUTCH HUB AND BUSHING (34 TEETH) (SUB AT104147) (ALSO ORDER R81735) (SUB FOR AR31951 AND AR40410)
16	-	1	Part 19	(SUB AT104147) (ALSO ORDER R81735) (SUB FOR AR48114)
17	R34895	1	THRUST WASHER	-
18	R67840	4	Disk Spring	(SUB FOR R33518)

LOW RANGE PINION (HI-LO-REVERSE TRANSMISSION) [01G03]
