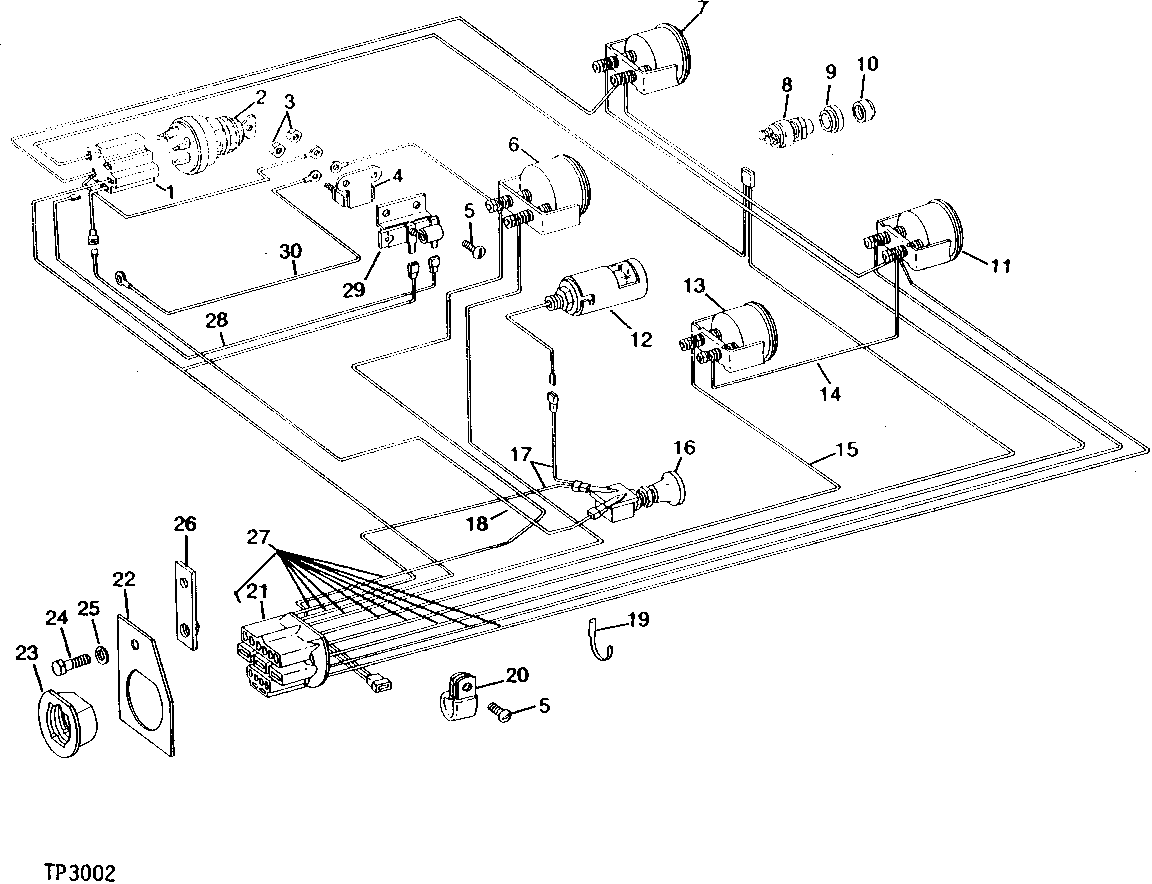

INSTRUMENT PANEL WIRING SYSTEM (HI-LO-REVERSE TRANSMISSION) (SERIAL NO. 71165- ) [02B19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T21201	1	ELECTRICAL CONNECTOR ASSY	-
2	AT21880	1	SWITCH	(FOR PARTS SEE PAGE 65-12)
3	14H631	2	Nut	0.190"
4	AR28403	1	CIRCUIT BREAKER	-
5	37H47	2	SCREW	NO. 8 X 1/2"
6	AT28166	1	AMMETER	(SUB FOR AT18719 AND AT26809) (USE IF AVAILABLE)
6	AT41802	1	AMMETER	(SUB FOR AT28166)
7	AT149014	1	KIT	ENGINE OIL PRESSURE, (SUB FOR AT24101 AND AT26810)
7	12H246	2	LOCK WASHER	0.190"
8	AR47373	1	SWITCH	(SUB FOR R39554)
9	R21157	1	NUT	(SUB T58440)
10	T58440	1	CAP	(SUB FOR AR47374, THIS APPLICATION) (SUB FOR T31142)
11	-	1	Part 13	ENGINE TEMPERATURE (STEWART-WARNER) ( AT22808 USE IF AVAILABLE) (SUB AT149018) (SUB FOR AT27365 AND AT18718)
11	-	1	Part 14	ENGINE TEMPERATURE (STEWART-WARNER) ( AT41010 USE IF AVAILABLE) (SUB AT149018) (SUB FOR AT28168)
11	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
12	AR33479	1	LAMP	DASH (FOR PARTS SEE PAGE 65-9)
13	AT18717	1	TEMPERATURE GAUGE	TRANSMISSION TEMPERATURE
14	AT18729	1	WIRING LEAD	-
15	AT18727	1	WIRING LEAD	-
16	AM31209	1	SWITCH	LIGHT, (SUB FOR AT18934) (FOR PARTS SEE PAGE 65-12)
17	-	1	Part 21	(AT18814 NO LONGER AVAILABLE)
18	-	1	Part 22	(MAKE FROM 152 MM (6") OF R66319, (2) T28583 AND (2) U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT26014)
19	R44302	1	Tie Band	(SUB FOR R27457)
20	AT13846	1	CLAMP	-
21	T25315	1	HOUSING	-
22	T24832	1	BRACKET	-
23	T24833	1	GROMMET	-
24	19H1919	1	Cap Screw	1/4" X 5/8", (WITH LOADER)
25	12H302	1	Lock Washer	1/4", (WITH LOADER)
26	AT22862	1	BRACKET	(WITH LOADER)
27	AT26015	1	WIRING HARNESS	(INCLUDES KEYS 2 AND 21)
28	-	1	Part 32	(GASOLINE) (MAKE FROM 408 MM (16") OF R65593, T28583 AND (2) U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT21891)
29	AA5791R	1	RESISTOR	(SUB FOR T23675) (ALSO ORDER (2) 57M7085) (GASOLINE)
30	AT18773	1	WIRING LEAD	(TO IGNITION SWITCH WITHOUT LIGHTS OR CIRCUIT BREAKER WITH LIGHTS)

INSTRUMENT PANEL WIRING SYSTEM (HI-LO-REVERSE TRANSMISSION) (SERIAL NO. 71165- ) [02B19]
