INSTRUMENT PANEL WIRING SYSTEM (CONSTANT-MESH TRANSMISSION) (SERIAL NO. -71164) [02B17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

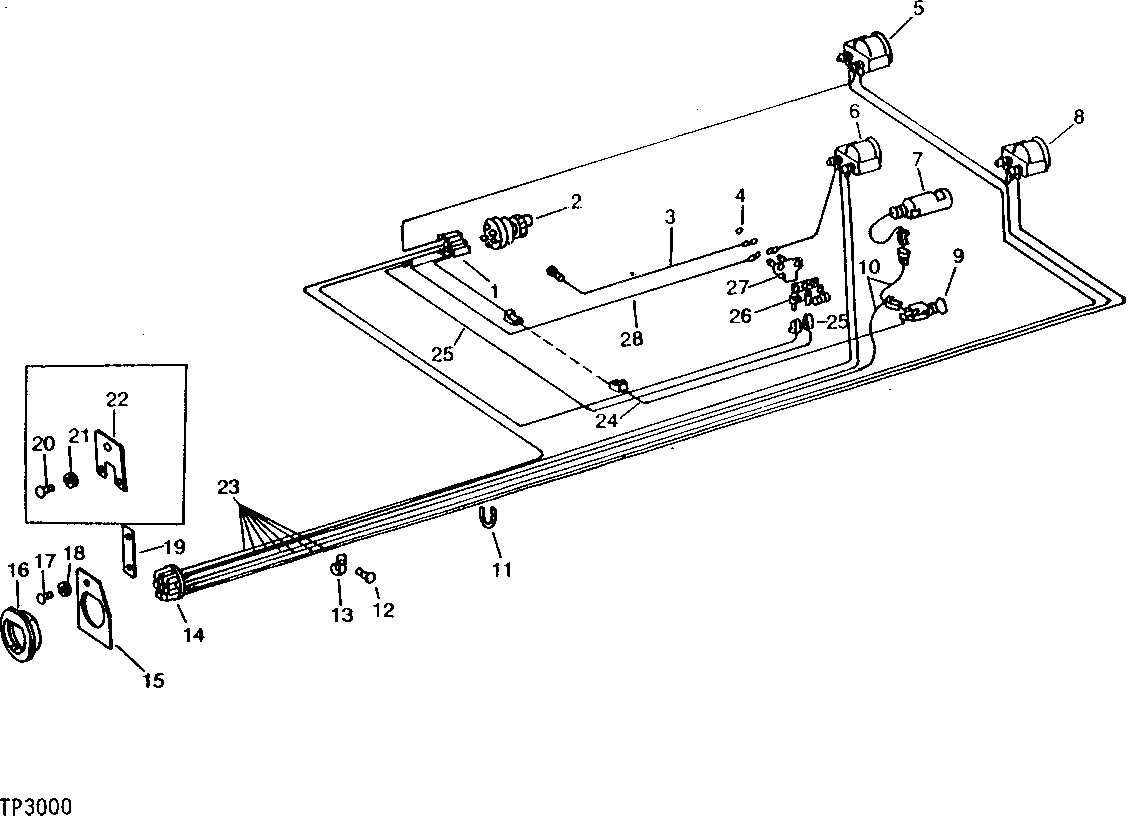

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T21201	1	ELECTRICAL CONNECTOR ASSY	-
2	AT18721	1	SWITCH	(SUB AT21880) (DIESEL)
2	AT21880	1	SWITCH	-
2	AT18721	1	SWITCH	(SUB AT21880, R32007, (2) R32018 AND AR68304) (MAKE R32007 AND R32018 FROM AR30963 LEAD WIRE KIT) (GASOLINE)
3	AT18773	1	WIRING LEAD	(TO IGNITION SWITCH WITHOUT LIGHTS OR CIRCUIT BREAKER HARNESS WITH LIGHTS)
4	14H631	2	Nut	0.190"
5	AT18720	1	GAUGE	(SUB AT24101 AND AT24102 SENDING UNIT)
5	AT149014	1	KIT	ENGINE OIL PRESSURE, (SUB FOR AT24101, AT26810 AND AT28167)
5	12H246	2	LOCK WASHER	0.190"
6	AT28166	1	AMMETER	(SUB FOR AT18719 AND AT26809) (USE IF AVAILABLE)
6	AT41802	1	AMMETER	(SUB FOR AT28166)
7	AR33479	1	LAMP	DASH
8	-	1	Part 13	ENGINE TEMPERATURE (STEWART-WARNER) ( AT22808 USE IF AVAILABLE) (SUB AT149018) (SUB FOR AT27365 AND AT18718)
8	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
9	AH85260	1	SWITCH	LIGHT, (SUB FOR AT18934) (SUB FOR AM31209, THIS APPLICATION)
10	-	1	Part 16	(AT18814 NO LONGER AVAILABLE) LIGHT SWITCH
11	R44302	1	Tie Band	(SUB FOR R27457)
12	37H47	1	SCREW	NO. 8 X 1/2"
13	AT13846	1	CLAMP	-
14	T25315	1	HOUSING	-
14	T21202	1	JUNCTION BLOCK	-
15	T24832	1	BRACKET	-
16	T24833	1	GROMMET	-
17	19H1919	1	Cap Screw	1/4" X 5/8", (WHEN EQUIPPED WITH LOADER)
18	12H302	1	Lock Washer	1/4", (WHEN EQUIPPED WITH LOADER)
19	AT22862	1	BRACKET	(WHEN EQUIPPED WITH LOADER)
20	-	2	Part 27	(T11637 NO LONGER AVAILABLE)
21	24H1283	2	Washer	7/32" X 1/2" X 0.049"
22	-	1	Part 29	(T23802 NO LONGER AVAILABLE)
23	AT18722	1	WIRING HARNESS	(DIESEL) (INCLUDES KEYS 1 AND 14)
23	-	1	Part 31	(AT19189 NO LONGER AVAILABLE) (GASOLINE) (INCLUDES KEYS 1 AND 14)
23	-	1	Part 32	(SUB AT26015, AT26016, R39554 AND T31142) (WITHOUT LIGHTS, ALSO ORDER AR28403 AND (2) 14H882) ( AT21890, NO LONGER AVAILABLE)
24	-	1	Part 33	(MAKE FROM 177 MM (7") OF R66319, R32018, T28583 AND U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18759)
25	-	1	Part 34	(GASOLINE) (MAKE FROM 408 MM (16") OF R65593, T28583, AND (2) U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT21891)
26	AA5791R	1	RESISTOR	(SUB FOR T23675) (ALSO ORDER (2) 57M7085) (GASOLINE)
27	AR28403	1	CIRCUIT BREAKER	-
28	-	1	Part 37	(AT18813 NO LONGER AVAILABLE) CIRCUIT BREAKER TO IGNITION SWITCH
