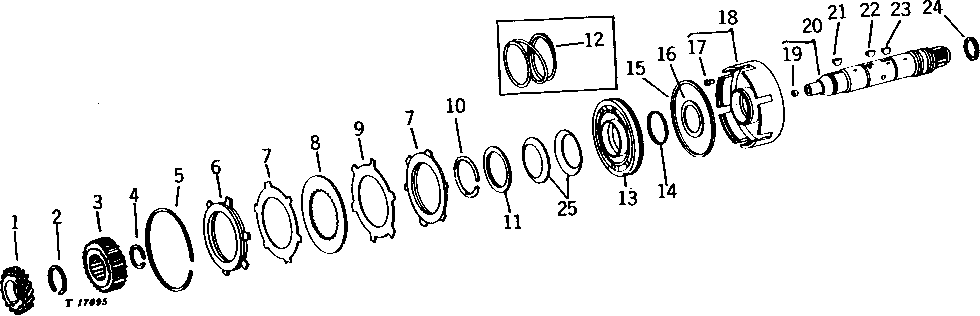

HI-LO-REVERSE HIGH RANGE CLUTCH DRUM (HI-LO-REVERSE TRANSMISSION) [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T18994	1	GEAR	(28 TEETH)
2	R71R	1	SNAP RING	-
3	R40170	1	HUB	HIGH RANGE, (SUB FOR R32695) ( R40184 THRUST WASHER, INSIDE OF HUB)
4	R31291	1	Snap Ring	-
5	T141680	1	Snap Ring	(SUB FOR R31289, THIS APPLICATION)
6	R32692	1	CLUTCH PLATE	OUTER
7	R57345	4	Clutch Plate	(SUB FOR R39325 AND R32313, THIS APPLICATION)
8	RE23000	4	CLUTCH DISK	(SUB FOR R31404, THIS APPLICATION)
9	R90644	1	Clutch Plate	(SUB FOR R31373)
10	R33247	1	Snap Ring	-
11	R33114	1	ROUND RETAINER	-
12	R31359	1	SPRING	(SUB R46213 AND (4) R33518)
13	R40183	1	PISTON	(SUB R46213 AND R46218) (SUB FOR R32691)
13	R46213	1	PISTON	(REPLACEMENT PART FOR R40183)
14	R33246	1	Seal	INNER
15	R27789	1	PISTON RING	OUTER, (USE WITH R40183)
15	R46218	1	Seal	OUTER, (USE WITH R46213)
16	R40184	1	Thrust Washer	(INSIDE OF R40170 HUB)
17	R32694	1	Pin Fastener	-
18	-	1	Part 20	( AR39707, NO LONGER AVAILABLE) (SUB AR39993 AND R40184)
18	AR39993	1	DRUM	HIGH RANGE CLUTCH, WITH PIN
19	R34567	1	PIN	-
20	AR44358	1	SHAFT	WITH PINS AND INNER RACE (ALSO ORDER TWO 26H89) (USE IF AVAILABLE) (SUB FOR AR39706 AND AR41177)
21	26H82	1	Shaft Key	1/4" X 7/8"
22	26H82	1	Shaft Key	1/4" X 7/8"
22	26H89	1	SHAFT KEY	1/4" X 1-1/8"
23	26H89	1	SHAFT KEY	1/4" X 1-1/8"
24	R31292	5	Piston Ring	-
25	R67840	4	Disk Spring	(SUB FOR R33518)

HI-LO-REVERSE HIGH RANGE CLUTCH DRUM (HI-LO-REVERSE TRANSMISSION) [01G01]
