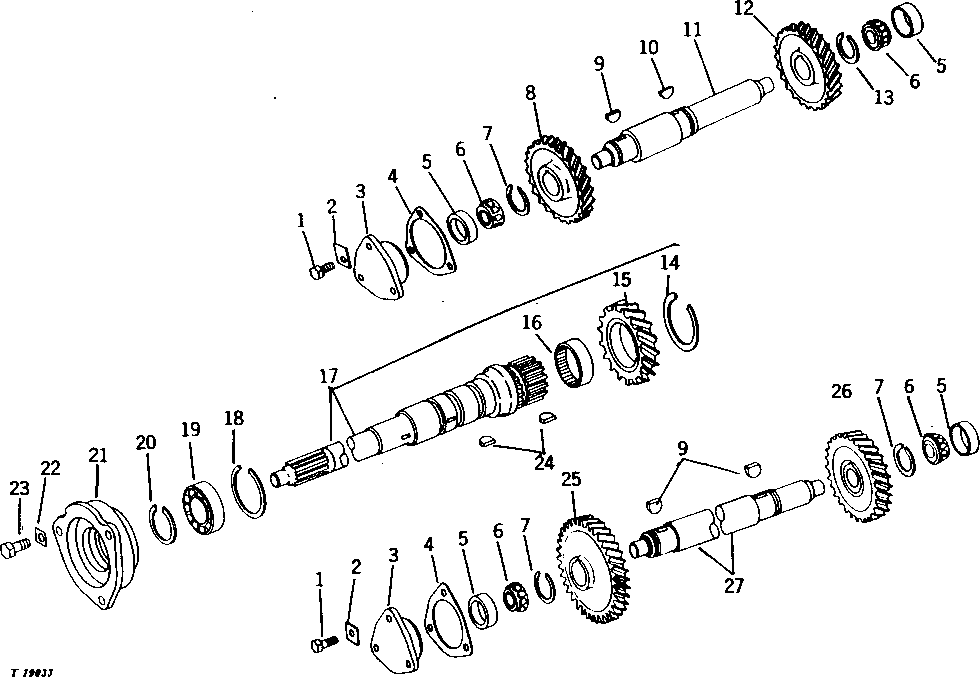

FRONT INPUT SHAFT AND COUNTERSHAFTS (HI-LO-REVERSE TRANSMISSION) [01F25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	6	Cap Screw	HS, SAE 8, 3/8" X 1"
2	R1888R	6	STRAP	-
3	T13162	2	BEARING HOUSING W/O BEARING	-
4	T12793	1	SHIM	0.05 MM (.002")
4	T12794	1	SHIM	0.13 MM (.005")
4	T12795	1	SHIM	0.25 MM (.010")
5	JD8226	4	Bearing Cup	-
6	JD8188	4	Bearing Cone	-
7	B1402R	3	SNAP RING	(SUB FOR F215R)
8	T18083	1	GEAR	FRONT (38 TEETH)
9	26H82	3	Shaft Key	1/4" X 7/8"
10	26H78	1	Shaft Key	1/4" X 3/4"
11	T19678	1	COUNTERSHAFT	REVERSE
12	T13698	1	GEAR	REAR (39 TEETH)
13	A3809R	1	SNAP RING	-
14	R71R	1	SNAP RING	-
15	T18994	1	GEAR	(28 TEETH)
16	JD8865	1	Needle Bearing	-
17	AT21511	1	UNIVERSAL JOINT	(MARKED T24366), FRONT DRIVE, WITH NEEDLE BEARING, SNAP RING AND KEY, (INCLUDES 26H78) (SUB FOR AT18939) ( ONE 26H78 USED WITH AT21511) (TWO 26H78 USED WITH AT18939)
18	T13513	1	SNAP RING	-
19	JD7692	1	Ball Bearing	-
20	F267R	1	Snap Ring	-
21	-	1	Part 23	( T23934, NO LONGER AVAILABLE)
22	R1888R	3	STRAP	-
23	19H2676	3	Cap Screw	HS, SAE 8, 3/8" X 1"
24	26H78	1	Shaft Key	1/4" X 3/4", (ONE INCLUDED WITH ASSEMBLY AT21511) (TWO USED WITH AT18939)
25	T18085	1	GEAR	FRONT (42 TEETH)
26	T18084	1	GEAR	REAR (36 TEETH)
27	T19677	1	COUNTERSHAFT	-

FRONT INPUT SHAFT AND COUNTERSHAFTS (HI-LO-REVERSE TRANSMISSION) [01F25]

Нет текстового описания
