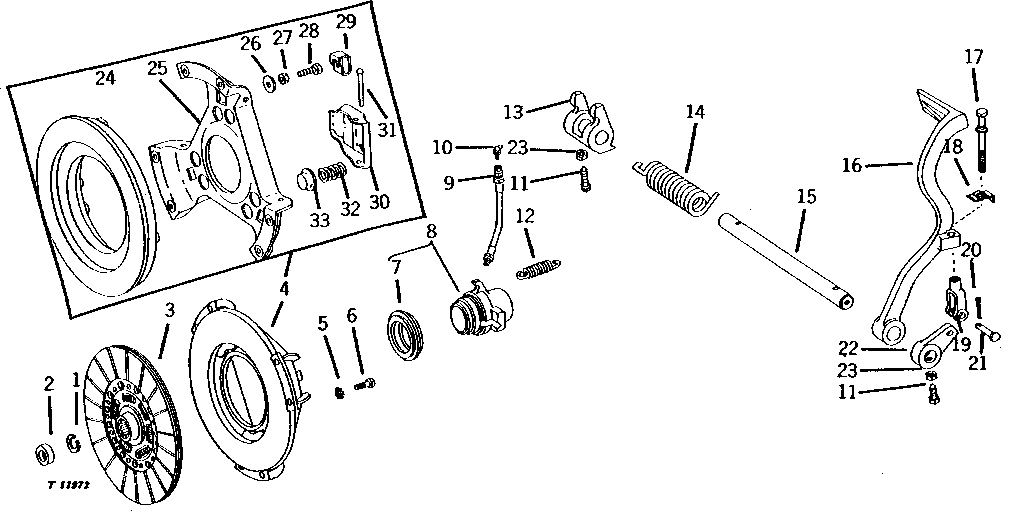

ENGINE CLUTCH AND PRESSURE PLATE (CONSTANT-MESH TRANSMISSION) [01F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26933	1	SNAP RING	-
2	AL28037	1	BALL BEARING	(SUB FOR JD8511, THIS APPLICATION) (SUB FOR AL24903)
3	AT21605	1	DRIVE DISK	(SUB FOR AT20700)
4	AT29610	1	PLATE	(SUB FOR AT18545)
5	12H304	6	Lock Washer	3/8"
6	T20843	6	CAP SCREW	-
7	AM3983T	1	THRUST BEARING	-
8	AT32522	1	PLANET PINION CARRIER	(MARKED T33322) (SUB FOR AT18544) (MARKED T20836)
9	T20900	1	Hose	-
10	JD7781	1	Lubrication Fitting	1/8"
11	T21321	2	SET SCREW	-
12	M226T	1	Spring	-
13	T23998	1	CLEVIS	-
14	T33883	1	SPRING	(SUB FOR T20837)
15	T23997	1	PIN FASTENER	-
16	T20840	1	T20840	-
17	AT18768	1	ADJUSTER	-
18	T21154	1	ANGLE	-
19	T21158	1	Yoke	-
20	11M7059	1	Cotter Pin	3.200 X 20 MM
21	R72855	1	Pin Fastener	(SUB FOR T10187)
22	T67054	1	LEVER	(SUB FOR T23996)
23	14H821	2	Nut	5/8"
24	T19953	1	PLATE	-
25	-	1	Part 25	( T24697 NO LONGER AVAILABLE)
26	T15940	3	WASHER	(USE IF AVAILABLE)
26	24H1657	1	Washer	21/64" X 1-1/4" X 7/64", (SUB FOR T15940)
27	14H882	3	Nut	5/16"
28	T18750	3	CAP SCREW	-
29	T13267	3	CLIP	(SUB FOR T19955)
30	-	3	Part 31	( T19957 NO LONGER AVAILABLE)
31	-	3	Part 32	( T19956 NO LONGER AVAILABLE)
32	T19954	6	SPRING	-
33	-	6	Part 34	( T15943 NO LONGER AVAILABLE)

ENGINE CLUTCH AND PRESSURE PLATE (CONSTANT-MESH TRANSMISSION) [01F19]

Нет текстового описания
