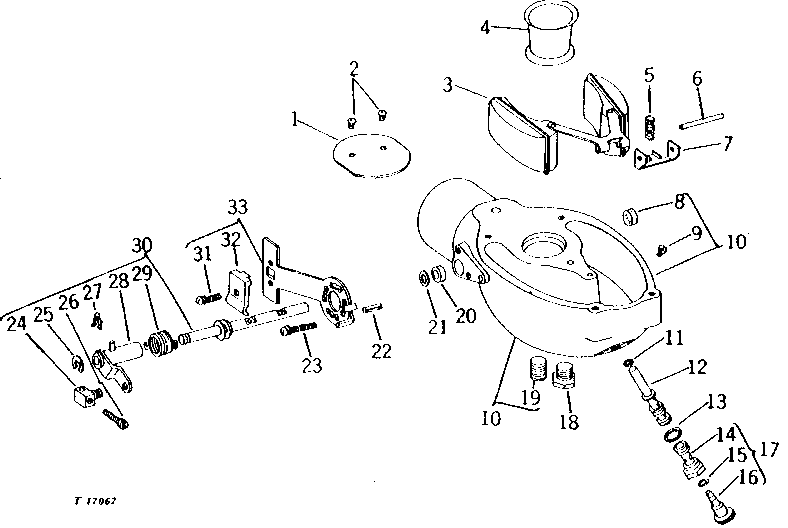

CARBURETOR BOWL ASSEMBLY (SERIAL NO. 10001-15914) [01F08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T23524	1	CHOKE	-
2	B17696	2	SCREW	(A) NO. 6 X 1/4"
3	30-739	1	FLOAT	-
4	R61642	1	VENTURI	(SUB FOR T23525)
5	T23532	1	SPRING	-
6	R10211	1	SHAFT	(A)
7	T23536	1	BRACKET	-
8	R10150	1	PLUG	(B)
9	15409	1	PLUG	(B) (NO LONGER AVAILABLE)
10	-	1	Part 10	(B) (AT21087 NO LONGER AVAILABLE)
11	GW46-16-456	1	GASKET	( 16-456 NO LONGER AVAILABLE)
12	T719T	1	NOZZLE	-
13	16-47	1	GASKET	-
14	T23535	1	PLUG	(SUB FOR T19980)
15	R27490	1	O-Ring	-
16	T16311	1	NEEDLE	-
17	AT21083	1	NEEDLE	(SUB FOR AT17437)
18	R10160	1	PIPE PLUG	(B)
19	99-4	1	PIPE PLUG	(B) 1/8" HEADLESS
20	R10186	1	SEAL	(A)
21	R10187	1	SHIM	.63 MM (.025")
22	34H242	1	Spring Pin	1/8" X 7/16"
23	21H1315	1	Screw	(SUB FOR T23522, ALSO ORDER 12H379)
23	12H379	1	Lock Washer	-
24	R10184	1	SWIVEL	-
25	T23529	1	Snap Ring	-
26	21H971	1	SCREW	0.164" X 5/16"
27	R10185	1	Spring Locking Pin	-
28	AR10096	1	LEVER	-
29	R10183	1	TORSION SPRING	-
30	-	1	Part 31	-
31	15A295	1	SCREW	-
32	R10188	1	CLIP	-
33	-	1	Part 34	( AR10302 - NO LONGER AVAILABLE)
..	-	1	Part 35	(C) (SUB AR71433 CARBURETOR, AT21083 NEEDLE AND SEAT AND 16-47 GASKET) (SUB FOR AT21186)
..	RE528308	1	KIT	CARBURETOR REPAIR, (SUB FOR AT21091) ( AR52589 NO LONGER AVAILABLE)
