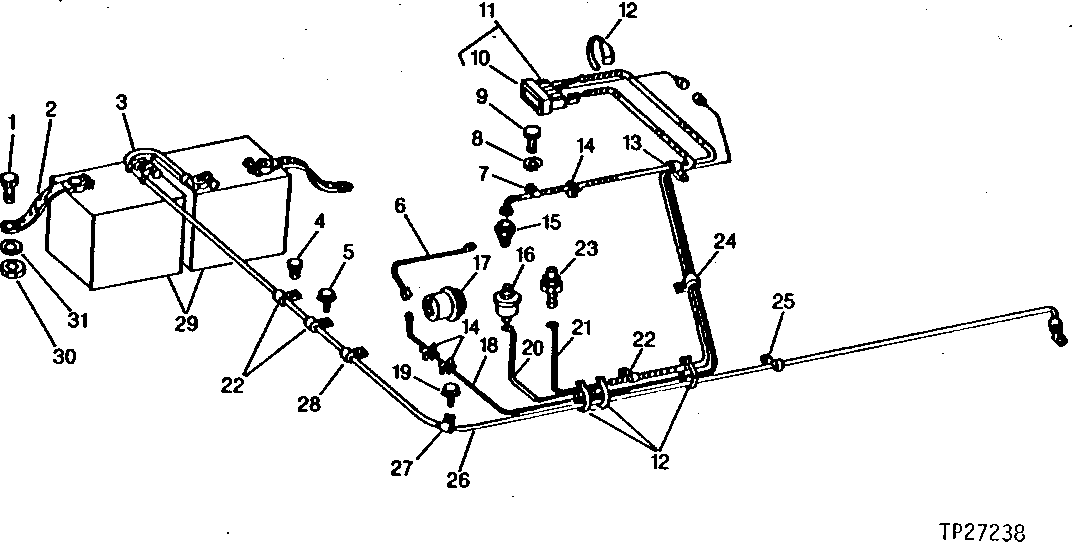

BATTERY CABLES AND HOUR METER WIRING HARNESS [02B15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03H1765	1	Bolt	3/8" X 3/4"
2	AT18702	2	GROUND CABLE	(WITH TWO BATTERIES)
3	AT25403	1	CABLE	216 MM LONG (8-1/2") (USED WITH TWO BATTERIES)
4	19H1813	1	CAP SCREW	5/16" X 5/8"
5	37H29	1	Screw	5/16" X 5/8"
6	AT18715	1	WIRING LEAD	-
7	R42357	1	CLAMP	(WITHOUT POWER STEERING) (SUB FOR R27545)
7	R44302	1	Tie Band	(WITH POWER STEERING) (SUB FOR R27457)
8	12H304	1	Lock Washer	3/8"
9	19H2038	1	Cap Screw	3/8" X 1/2"
10	T21203	1	TERMINAL	-
11	AT18705	1	WIRING HARNESS	SAFETY SWITCH AND HOUR METER
12	R44302	5	Tie Band	(SUB FOR R27457)
13	T13814	1	Clamp	-
14	T41072	3	CLIP	(SUB FOR M644T, THIS APPLICATION)
15	AT14407	1	SWITCH	SAFETY STARTER
16	AT18775	1	SENDER	TRANSMISSION OIL PRESSURE (HI-LO-REVERSE)
16	15H638	1	Pipe Plug	1/8"
17	AT160120	1	HOUR METER	(SUB FOR AT30152 OR AT61458)
18	-	1	Part 20	HOUR METER EXTENSION (WITHOUT LOADER) (MAKE FROM 1 930 MM (76") OF R65593, R65597, T28583, T28585, U46662, (2) R65604 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18984)
19	19H1648	1	Cap Screw	3/8" X 3/4"
20	-	1	Part 22	TRANSMISSION OIL PRESSURE SENDING UNIT TO CONNECTOR (HI-LO REVERSE) (MAKE FROM 1 092 MM (43") OF R65593, R32018, R65597, AND R65604 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18762)
21	-	1	Part 23	TRANSMISSION TEMPERATURE SENDING UNIT TO CONNECTOR (HI-LO REVERSE) (MAKE FROM 1 397 MM (55") OF R65593, R32018, AND R65597 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18982)
22	T21101	3	Clamp	-
23	AH21292	1	SENDER	(TRANSMISSION TEMPERATURE)
23	AT28163	1	SENDER	(TRANSMISSION TEMPERATURE)
24	T13913	1	Clip	-
25	T20985	1	CLIP	-
26	AT18736	1	CABLE	2 508 MM (98.74") (USED WITH TWO BATTERIES) (SUB AT18703 AND AT25403) (BATTERY TO STARTER)
26	AT18703	1	BATTERY CABLE	2 337 MM (92") (USED WITH TWO BATTERIES) (BATTERY TO STARTER)
26	AT18703	1	BATTERY CABLE	2 337 MM (92") (USED WITH ONE BATTERY) (BATTERY TO STARTER)
27	T13073	1	Clip	-
28	T21101	1	Clamp	-
29	AT29159	1	DRY CHARGED BATTERY	12 VOLT, 475 COLD CRANKING AMPS AT 0° F (-18°C), 150-MINUTE RESERVE CAPACITY AT 25 AMPS
30	14H812	1	NUT	3/8"
31	24H1302	1	Washer	13/32" X 11/16" X 0.035"

BATTERY CABLES AND HOUR METER WIRING HARNESS [02B15]

Нет текстового описания
