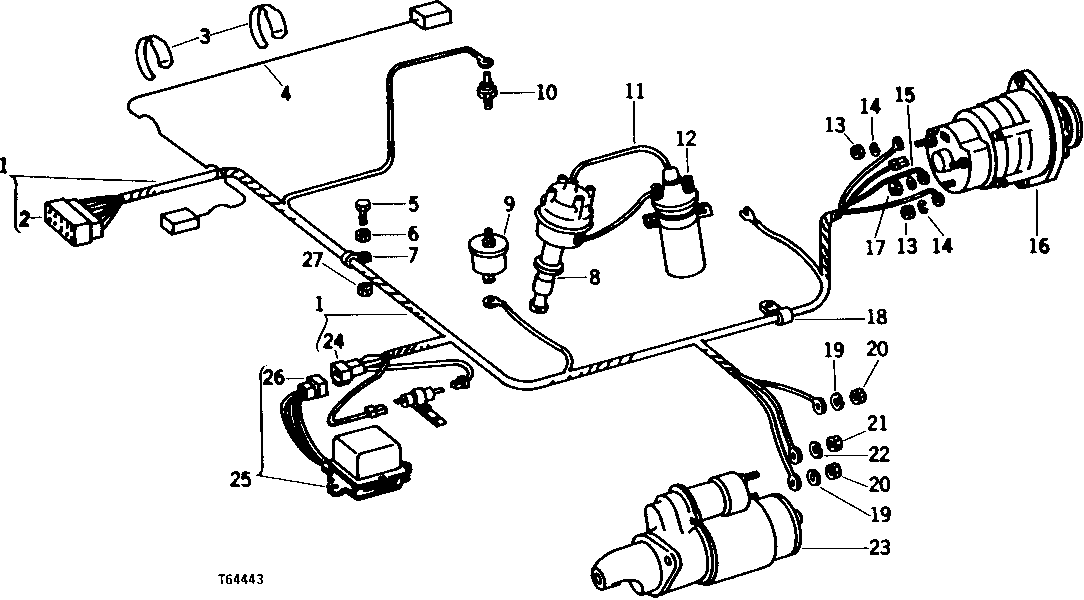

ALTERNATOR, STARTING MOTOR AND FRONT WIRING HARNESS [02B09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT21894	1	WIRING HARNESS	FRONT
1	AT19188	1	WIRING HARNESS	FRONT
2	T25316	1	ELECTRICAL CONNECTOR ASSY	(SUB FOR T25313)
2	T23851	1	HOUSING	-
3	R44302	2	Tie Band	(SUB FOR R27457) (DIESEL)
3	R44302	2	Tie Band	(SUB FOR R27457) (GASOLINE)
4	AT23389	1	WIRING LEAD	(DIESEL)
4	-	1	Part 8	(GASOLINE) (MAKE FROM 940 MM (37") OF R65593, R65597, T28583, AND U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT21892)
5	19H2705	1	Cap Screw	5/16" X 1"
5	19H2661	1	Cap Screw	5/16" X 1-3/8", (WITH LOADER)
6	24M7096	1	Washer	0.413" X 0.709" X 0.063"
7	T13814	2	Clamp	-
8	AT21351	1	IGNITION DISTRIBUTOR	(PRESTOLITE NO. IBT4101S AND IBT4101U) (SUB FOR AT18116)
9	-	1	Part 14	( AT18716 - NO LONGER AVAILABLE)
9	AT84200	1	SENDER	(SUB FOR AT24102)
10	AH21292	1	SENDER	-
10	AT28163	1	SENDER	ENGINE TEMPERATURE (USE WITH STEWART-WARNER)
10	AT124052	1	SENDER	ENGINE TEMPERATURE (USE WITH VDO)
11	-	1	Part 19	229 MM (9") (MAKE FROM R32006, (2) R32013 AND (2) A3539R FROM AR84006 WIRE REPAIR KIT) (SUB FOR T23428)
12	AT14385	1	ELECTRICAL COIL	(PRESTOLITE NO. 200627)
13	14H778	2	Nut	0.190"
14	12H295	2	Lock Washer	0.190"
15	12H297	1	Lock Washer	1/4"
16	AR38458	1	ALTERNATOR	(MOTOROLA NO. RA12NJD453-S) (SUB FOR AT21619, MOTOROLA NO. A12NJD452)
16	TY24306	1	ALTERNATOR	(SUB FOR TY1427) (35 AMPERE) (MOTOROLA) (REMANUFACTURED)
16	TY1900	1	ALTERNATOR	LESS PULLEY AND REGULATOR (MOTOROLA NO. TA12NJD325 OR 8TA2003D) (SUB FOR AT36220)
16	TY1900	1	ALTERNATOR	(22 AMPERE) (MOTOROLA) (REMANUFACTURED)
16	-	1	Part 24	(AT21229 NO LONGER AVAILABLE) (SUB AR38458 ALTERNATOR, T24474 PULLEY, AND T24473 FAN BELT)
17	14H860	1	Nut	1/4"
18	T14264	1	Clamp	-
19	T19603	2	LOCK WASHER	-
20	14H605	2	Nut	0.164"
21	14H732	1	Nut	3/8"
22	12H304	1	Lock Washer	3/8"
23	RE62916	1	Starter Motor Kit	(SUB FOR RE50095) (DELCO-REMY NO. 1998367) (DIESEL) (SUB FOR AT25619, DELCO-REMY NOS. 1107863 AND 1107871 AND AT18150, DELCO-REMY NOS. 1107577 AND 1107599) (DIESEL) (SUB FOR RE19187, DELCO-REMY NO. 1998367) (SUB FOR RE42730)
23	SE501436	1	STARTER MOTOR	-
23	TY26037	1	STARTER MOTOR	(DELCO-REMY NO. 1107339 AND 1108319) (GASOLINE) (SUB FOR AT18025 OR TY6706)
23	TY6702	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (INCLUDES SOLENOID COVER KIT)
24	T24167	1	Electrical Connector Assy	-
24	T25314	1	Connector	-
25	AT19253	1	REGULATOR	(MOTOROLA NO. R2J1) (SUB FOR T23674)
25	AT42450	1	VOLTAGE REGULATOR	(MOTOROLA NO. RS2J1 AND 8RD2017) (DO NOT USE AT41069, THIS APPLICATION) (SUB FOR AT21816 AND AT29078)
26	T24166	1	Electrical Connector Assy	-
26	T25316	1	ELECTRICAL CONNECTOR ASSY	-
27	14H611	1	Nut	5/16"

ALTERNATOR, STARTING MOTOR AND FRONT WIRING HARNESS [02B09]

Нет текстового описания
