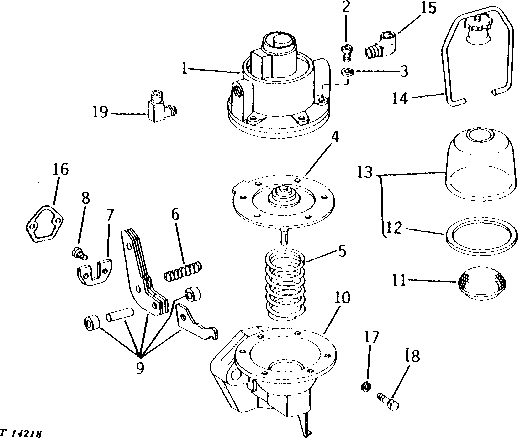

AC FUEL TRANSFER PUMP ASSEMBLY (SERIAL NO. 15655- ) [01D12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB RE43274 OR RE42211) (ALSO ORDER R520618)
2	21H1295	6	Screw	0.190" X 5/8"
3	12H246	6	LOCK WASHER	0.190"
4	-	1	Part 4	(C) (SUB RE38578)
5	R30410	1	SPRING	(C)
6	T10804	1	SPRING	(C)
7	-	1	Part 7	(SUB RE43274 OR RE42211) (ALSO ORDER R520618)
8	21H1308	2	Screw	0.138" X 3/8"
9	AR47304	1	KIT	(SUB FOR AR28330) (SUB RE42211) (ALSO ORDER R520618)
10	-	1	Part 10	(SUB RE43274 OR RE42211) (ALSO ORDER R520618)
11	AT10635	1	SCREEN	-
12	R40565	1	WASHER	(C)
13	AR40407	1	SEDIMENT BOWL	WITH GASKET
14	AT10638	1	BAIL	-
15	T30738	1	ELBOW FITTING	(DIESEL) (SUB FOR AR26674, THIS APPLICATION)
15	T12938	1	Elbow Fitting	(GASOLINE)
16	R520618	1	Gasket	(C) (SUB FOR R97350, R27285)
17	T27860	2	Washer	(SUB FOR R26498, THIS APPLICATION)
18	19H1849	2	Cap Screw	5/16" X 1-1/4"
19	AR26674	1	ELBOW FITTING	(SUB FOR T30738, THIS APPLICATION)
..	AR40259	1	FUEL PUMP	(DIESEL) (SUB RE42211) (ALSO ORDER AT34816, AT34880, T12938, R520618 AND R27346)
..	AR40258	1	FUEL PUMP	(SUB RE43274) (ALSO ORDER AT34816 STRAINER, AT34880 LINE, T12938 ELBOW AND R27346 CONNECTOR) (GASOLINE)
..	RE38578	1	KIT	FUEL PUMP OVERHAUL

AC FUEL TRANSFER PUMP ASSEMBLY (SERIAL NO. 15655- ) [01D12]
