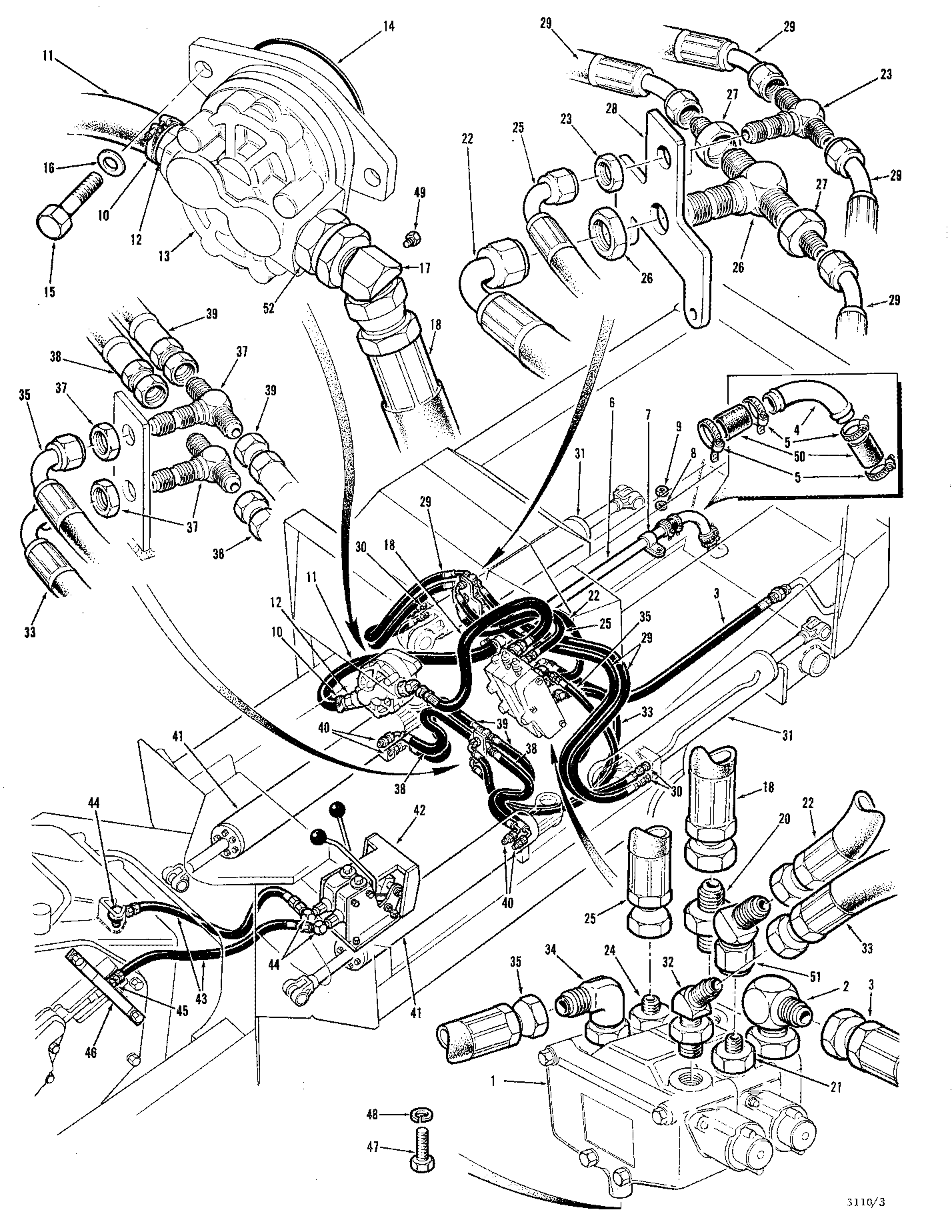

HYDRAULIC SYSTEM (2000) G P E A X 2000 HYDRAULIC SYSTEM( 450767 - ) 2000-025/13 [2000-025/13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Refer to Page: SKIDDER, LOG\450 SKIDDER, LOG\450 - 350 TO 450-SERIES (Timberjack < AA)\VALVE (2400)\VALVE (2400) G P E A X 2433 VALVE ASSEMBLY( 451208 - ) 2433-011/11
2	810566000	1	ELBOW - 90 DEG	-
3	810777600	1	HOSE-HYD*1.25X51	-
4	824468000	1	TUBE, PRESSURE - TANK TO TUBE - SEE NOTE	-
5	207202700	2	CLAMP - ADJUSTABLE	-
6	823258600	1	TUBE - SUCTION	-
7	810701000	2	CLAMP*1-9/16	-
8	810002600	2	LOCKWASHER 3/8	-
9	810006200	2	NUT 3/8 - 16 UNC	-
10	209724800	2	CLAMP	-
11	823037400	1	HOSE, PRESSURE - TUBE TO PUMP	-
12	810692800	1	ADAPTER - PUMP	-
13	-	1	Part 13	Refer to Page: SKIDDER, LOG\520 CABLE SKIDDER, LOG\520 CABLE - 480 TO 550-SERIES (Timberjack < AA)\PUMP (2100)\PUMP (2100) G P R T X 2112 PUMP ASSEMBLY( 520001 - ) 2112-010/12
14	810605100	1	O-RING	-
15	810005000	2	BOLT 1/2 - 13 UNC X 1.1/2	-
16	810007700	2	FLAT WASHER 1/2	-
17	823782800	1	FITTING-45 DEG.	-
18	810481300	1	HOSE - PUMP TO VALVE	-
19	-	1	Part 19	-
20	810115500	1	FITTING	-
21	810490900	1	FITTING 1/2 MJIC 3/4 -	-
22	810721900	1	HOSE - VALVE TO TEE	-
23	810787500	1	TEE	-
24	810115800	1	FITTING 3/4 MJIC 3/4	-
25	810497000	1	HOSE - VALVE TO TEE	-
26	810799200	1	Tee Fitting	-
27	810471600	2	FITTING MJIC/FJIC -	-
28	823925700	1	PLATE	-
29	810787600	4	HOSE - TEE TO DOZER CYLINDER	-
30	810070000	4	FITTING 1/2 MJIC 1/2	-
31	-	1	Part 31	-
32	810459300	1	FITTING-45 DEG.	-
33	230357100	1	HOSE - VALVE TO TEE	-
34	810292900	1	ELBOW-90 DEG. -	-
35	230054400	1	HOSE - VALVE TO BULKHEAD	-
36	-	1	Part 36	-
37	810787500	2	TEE	-
38	810872900	2	HOSE - TEE TO CYLINDER	-
39	810851900	2	HOSE - TEE TO CYLINDER	-
40	810070000	4	FITTING 1/2 MJIC 1/2	-
41	-	1	Part 41	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\CYLINDER (2800)\CYLINDER (2800) G P E K L 2800 HYDRAULIC CYLINDER( 520001 - ) 2800-011/12
42	-	1	Part 42	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\CYLINDER (2800)\CYLINDER (2800) G P E K L 2800 HYDRAULIC CYLINDER( 520001 - ) 2800-011/12
43	810692000	2	HOSE ASSEMBLY - VALVE TO WINCH	-
44	810273500	3	Elbow Fitting	-
45	810301700	1	ADAPTER -	-
46	821040300	1	GUARD	-
47	810024000	3	BOLT 1/2 - 13 UNC X 1	-
48	810002400	3	LOCKWASHER*1/2	-
49	810520200	1	PLUG	-
50	824374900	2	HOSE - SUCTION	-
51	810466600	1	FITTING-45 DEG.	-
52	810293100	1	FITTING -	-
