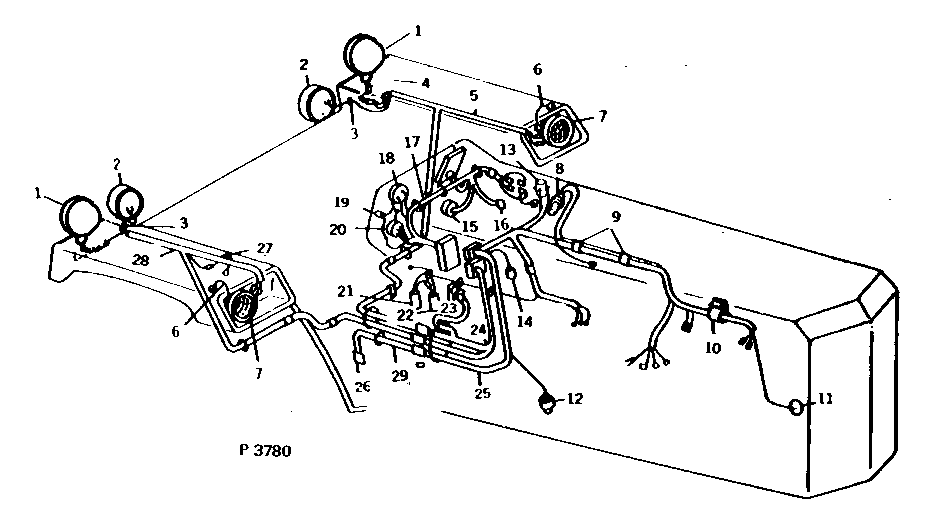

LAMP AND ENGINE WIRING HARNESS [01E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AP28463	2	LAMP	-
1	AR38456	2	LAMP	-
2	AP28459	2	LAMP	-
3	R27583	2	Grommet	-
4	R45936	2	Lens	-
5	AP28465	1	WIRING HARNESS	-
6	AR30963	2	KIT	-
7	AP28445	2	LAMP	-
8	RE12176	1	Air Restriction Sensor	-
9	R72853	2	Clamp	-
10	R72853	1	Clamp	-
11	RE19409	1	Fuel Sender	FUEL INDICATOR (FURNISH WITH 14H631 AND 12M7060)
12	RE15583	1	Engine Oil Pressure Sender	ENGINE OIL PRESSURE INDICATOR
13	AT68973	1	Relay	STARTING SWITCH
13	AP29620	1	POWER CORD	-
14	AR58233	1	ENGINE COOLANT TEMP SENDER	WATER TEMPERATURE INDICATOR
15	AR48724	1	Rotary Switch	LIGHTS
16	AR73717	1	INSTRUMENT CLUSTER	-
16	RE12768	1	INSTRUMENT CLUSTER	-
17	AP31908	1	WIRING HARNESS	-
17	AP31263	1	WIRING HARNESS	-
17	AP31907	1	WIRING HARNESS	INSTRUMENT PANEL
17	AP28907	1	WIRING HARNESS	INSTRMUENT PANEL
17	AP29724	1	WIRING HARNESS	INSTRUMENT PANEL (FURNISH AP31907 & AP31908).
18	AR80827	1	TACHOMETER	-
18	AR103645	1	Tachometer	ANALOG
18	AP31261	1	TACHOMETER	ANALOG
19	AR56766	1	Housing	CIGAR LIGHTER
20	AR58126	1	Rotary Switch	KEY SWITCH
20	R52725	1	Electrical Connector Assy	-
21	AR61610	1	PRESSURE SWITCH	THERMO
22	AR61969	1	SENSOR	PRESSURE
23	AR48725	1	Switch	DIMMER
24	AP28398	1	WIRING HARNESS	-
25	AP28906	1	WIRING HARNESS	ENGINE
25	AP29725	1	WIRING HARNESS	ENGINE
26	AR89691	1	SWITCH	NEUTRAL START SWITCH
26	RE38390	1	SWITCH	NEUTRAL START SWITCH
27	AR70699	1	LAMP	-
28	AP28427	1	WIRING HARNESS	R.H.
29	AR56203	1	WIRING HARNESS	NEUTRAL START SWITCH
29	R34557	1	Clamp	-
29	R45137	1	CLIP	-
29	R44302	1	Tie Band	-
29	AP28429	1	WIRING LEAD	-
-	RE38391	1	Starter Relay	-

LAMP AND ENGINE WIRING HARNESS [01E19]
