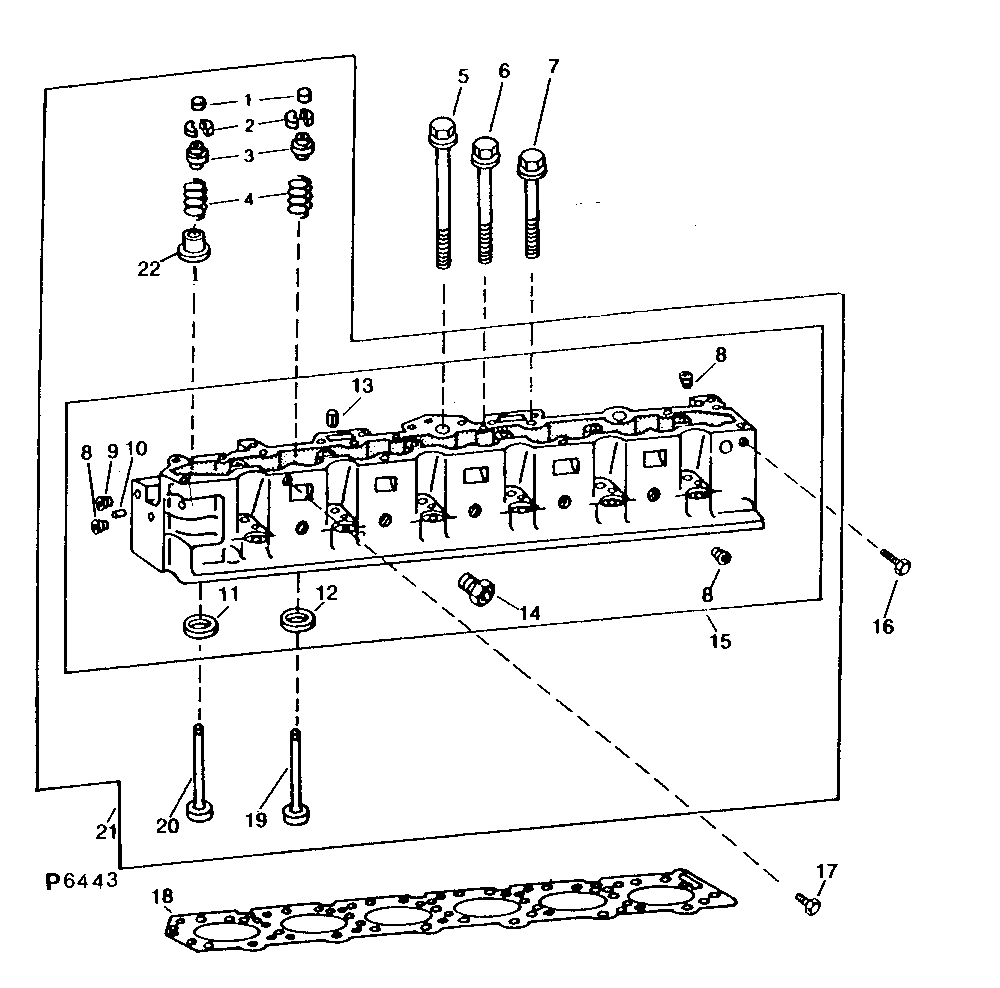

CYLINDER HEAD AND GASKET (ENGINE 6076) [01B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20129	12	Cap	-
2	T20077	24	Retainer	-
3	RE11410	12	Rotator	-
4	R91822	12	Spring	-
5	R121322	7	SCREW	-
6	R121321	8	Screw	-
7	R121320	11	Cap Screw	-
8	15H665	10	PIPE PLUG	19.050 MM
9	15H624	3	Pipe Plug	12.700 MM
10	F1743R	1	Dowel Pin	-
11	R84976	6	Valve Seat Insert	-
12	R84977	6	Valve Seat Insert	-
13	34H387	1	Spring Pin	4.775 X 19.050 MM
14	R76491	1	Pipe Plug	-
15	RE42738	1	Cylinder Head	WITH PLUGS, PINS AND INSERTS MARKED R102932
15	RE26380	1	Cylinder Head	WITH PLUGS, PINS AND INSERTS MARKED R86427
16	R45692	1	Cap Screw	-
16	12H294	1	Lock Washer	15.875 MM
17	R77372	1	SCREW	-
18	RE47336	1	Engine Cylinder Head Gasket	-
19	R84618	6	Intake Valve	STANDARD
19	R93308	6	Intake Valve	.003" OVERSIZE
19	R93312	6	Intake Valve	.015" OVERSIZE
19	R93314	6	Intake Valve	.030" OVERSIZE
20	R84619	6	Exhaust Valve	STANDARD
20	R93311	6	Exhaust Valve	.003" OVERSIZE
20	R93313	6	Exhaust Valve	.015" OVERSIZE
20	R93315	6	Exhaust Valve	.030" OVERSIZE
21	RE42741	1	Cylinder Head	WITH VALVES
21	RE58516	1	Cylinder Head	WITH VALVES (SUB FOR RE42741)
22	R102882	6	Shield	ON EXHAUST VALVE

CYLINDER HEAD AND GASKET (ENGINE 6076) [01B03]
