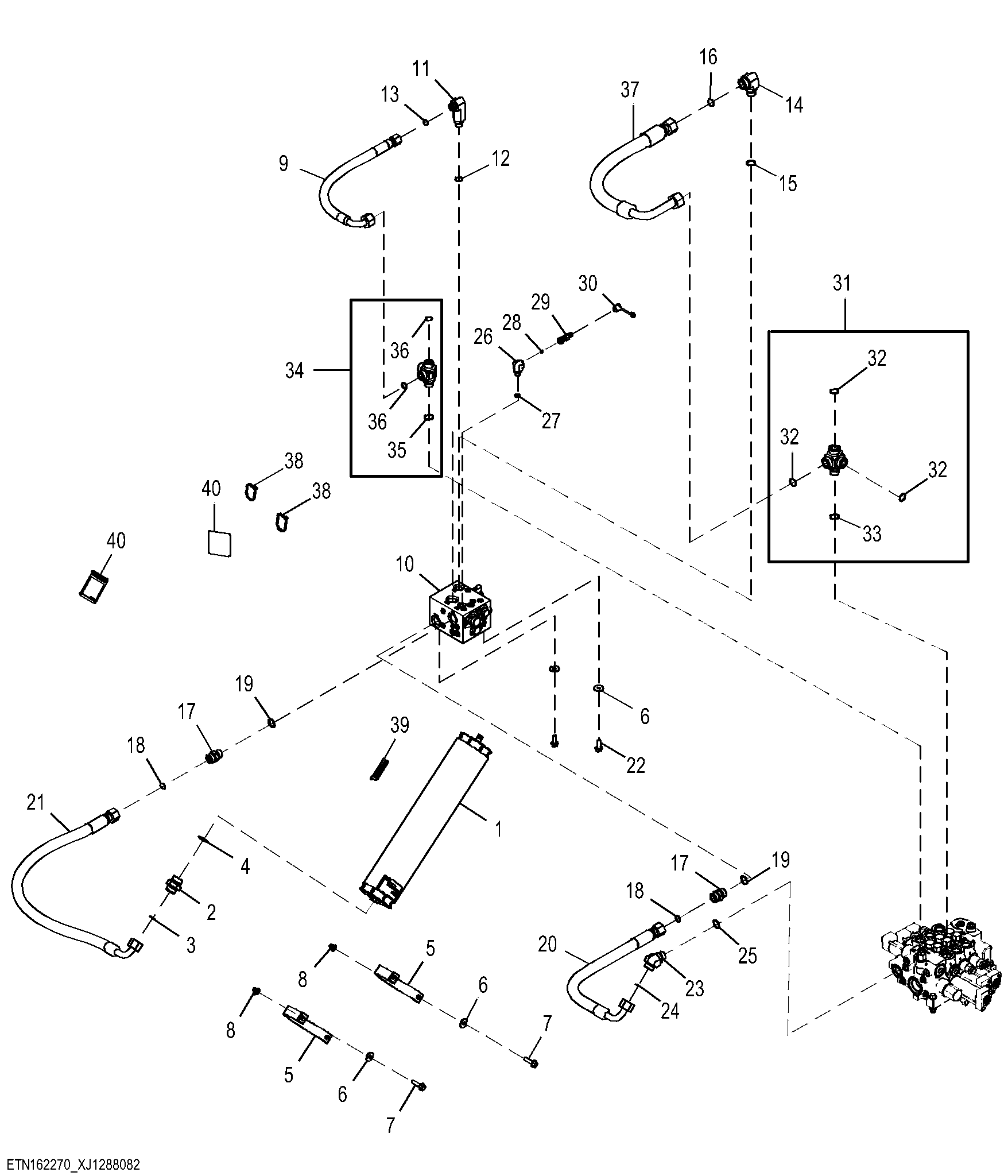

Ride Control Valve and Hydraulic Lines, Z-Bar

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT513930	1	Accumulator Kit	Ride Control Accumulator Service Kit, INCLUDES T225376, T225375, T225374,AND AT451188
1	AT490169	1	Accumulator Kit	Ride Control Accumulator Service Kit, ORDER AT513930; INCLUDES T225384, T225385,AND T225386
1	T150961	1	O-Ring	USE WITH AT451188
1	AT451188	1	Valve Kit	Gas Valve, USE WITH AT513930
1	T26209	1	Ring	USE WITH AT196760
1	AT196760	1	Valve Kit	Gas Valve, USE WITH AT490169
1	T225386	1	Safety Sign	Accumulator French, USE WITH AT490169
1	T225384	1	Safety Sign	Accumulator English, USE WITH AT490169
1	T225374	1	Label	Accumulator English, USE WITH AT513930
1	T225375	1	Label	Accumulator French, USE WITH AT513930
1	T225376	1	Label	Accumulator Spanish, USE WITH AT513930
1	T225385	1	Safety Sign	Accumulator Spanish, USE WITH AT490169
2	38H5013	1	Adapter Fitting	-
3	T77858	1	O-Ring	-
4	51M7048	1	O-Ring	29.600 X 2.900 mm
5	T146490	2	Clamp	-
6	24M7296	6	Washer	10.500 X 30 X 2.500 mm
7	19M7804	4	Screw	M10 X 40
8	14M7400	4	Lock Nut	M10
9	AT471313	1	Hydraulic Hose	-
10	AT466476	1	Hyd Actuated Control Valve	Ride Control Valve Components on Separate Page
11	38H5519	1	Adapter Fitting	-
12	51M7045	1	O-Ring	19.300 X 2.200 mm
13	T77932	1	O-Ring	-
14	38H5028	1	Elbow Fitting	-
15	51M7047	1	O-Ring	23.600 X 2.900 mm
16	T76938	1	O-Ring	-
17	38H5005	2	Adapter Fitting	-
18	T77858	2	O-Ring	-
19	51M7047	2	O-Ring	23.600 X 2.900 mm
20	AT471314	1	Hydraulic Hose	-
21	AT471316	1	Hydraulic Hose	-
22	19M7786	2	Screw	M10 X 30
23	38H5129	1	Elbow Fitting	-
24	T77858	1	O-Ring	-
25	51M7047	1	O-Ring	23.600 X 2.900 mm
26	38H5244	1	Elbow Fitting	-
27	51M7042	1	O-Ring	13.300 X 2.200 mm
28	T77814	1	O-Ring	-
29	RE60700	1	Diagnostic Coupling	-
30	R77175	1	Cover	-
31	AT466954	1	Fitting	-
32	T76938	3	O-Ring	-
33	51M7047	1	O-Ring	23.600 X 2.900 mm
34	AT466955	1	Fitting	-
35	51M7047	1	O-Ring	23.600 X 2.900 mm
36	T77858	3	O-Ring	-
37	AT486249	1	Hydraulic Hose	-
38	R44302	3	Tie Band	-
39	T225374	1	Label	Accumulator English
40	T146792	2	Safety Sign	Warning Ride Control

Ride Control Valve and Hydraulic Lines, Z-Bar
