Axle Cooling and Filtration System for Z-Bar Configurations

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1031	2	Tee Fitting	-
2	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
3	AT312932	2	Fitting	-
4	AT318157	2	Oil Filter	Axle Oil Recirculation Screen
5	T213505	4	Fitting	-
6	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	R82198	4	O-Ring	21 X 2 mm (0.827" X 0.079")
8	AT318300	1	Plate	-
9	AT318377	1	Hydraulic Hose	Fabricate
10	AT318377	1	Hydraulic Hose	Fabricate
11	AT318569	1	Hydraulic Hose	Fabricate
12	AT322735	1	Seal Kit	-
12	AT338293	1	Oil Pump	Axle Oil Circulation
12	AT338292	1	Pump	Fan Drive
12	-	1	Part 12	ORDER AT338292, AT338293 OR AT322735
13	T225866	1	Dipstick Tube	-
14	AT329269	1	Dipstick	Engine Oil
15	AT371084	1	Hydraulic Hose	Fabricate
16	AT334170	1	Hydraulic Hose	Fabricate
17	AT320846	1	Hydraulic Hose	Fabricate
18	AT332601	1	Hydraulic Hose	Fabricate
19	AT332602	1	Hydraulic Hose	Fabricate
20	AT332605	1	Hydraulic Hose	13/16" X 2500 mm (98-1/2") X 13/16"
21	AT332606	1	Hydraulic Hose	Fabricate
22	AT330592	1	Oil Cooler	Axle Oil Cooler
23	AT330606	1	Bracket	-
24	AT330678	1	Bracket	-
25	38H1004	1	Elbow Fitting	-
26	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	38H1005	1	Elbow Fitting	-
29	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
30	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	38H1161	2	Adapter Fitting	-
32	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
33	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
34	38H1291	1	Tee Fitting	-
35	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
36	T214468	1	Plate	-
37	38H1503	1	Tee Fitting	-
38	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
39	38H1094	2	Elbow Fitting	-
40	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
41	38H1095	2	Elbow Fitting	-
42	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
43	T81029	2	Nut	17.475 mm (11/16")
44	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
45	24M7296	10	Washer	10.500 X 30 X 2.500 mm
46	24M7361	2	Washer	19 X 34 X 3 mm
47	19M7785	10	Screw	M10 X 25
48	19M7786	4	Screw	M10 X 30
49	19M7835	4	Screw	M10 X 35
50	R136495	3	Gasket	-
51	R116296	1	Cover	-
52	19M7866	2	Screw	M8 X 20
53	19M8857	2	Cap Screw	M18 X 70
54	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
55	R136514	1	Spacer	-
56	R517353	1	Filler Neck	-
57	R504604	2	Cap Screw	M8 X 95
58	R44302	12	Tie Band	-
59	T218003	2	Label	Axle/Gearbox Oil
60	T238029	1	Adjusting Strap	-
61	AT371099	2	Filter	Assembly
61	AT367635	1	Filter Element	Element
62	R70921	2	Adapter Fitting	-
63	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
64	62H1012	2	Adapter Fitting	-
65	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
66	62H1019	1	Adapter Fitting	-
67	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
68	62H1011	1	Adapter Fitting	-
69	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
70	AT410385	1	Hydraulic Hose	Fabricate
71	AT410386	1	Hydraulic Hose	Fabricate
72	38H1338	2	Adapter Fitting	-
73	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
74	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
75	AT410388	1	Hydraulic Hose	Fabricate
76	AT410389	1	Hydraulic Hose	Fabricate
77	AT400471	2	Tee Fitting	-
77	T354929	2	Tee Fitting	-
78	R27474	2	Drain Plug	-
79	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
80	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
81	RE537637	2	Coolant Temperature Sensor	Axle Oil
82	T76252	1	Clamp	-
83	19M7865	1	Screw	M8 X 16

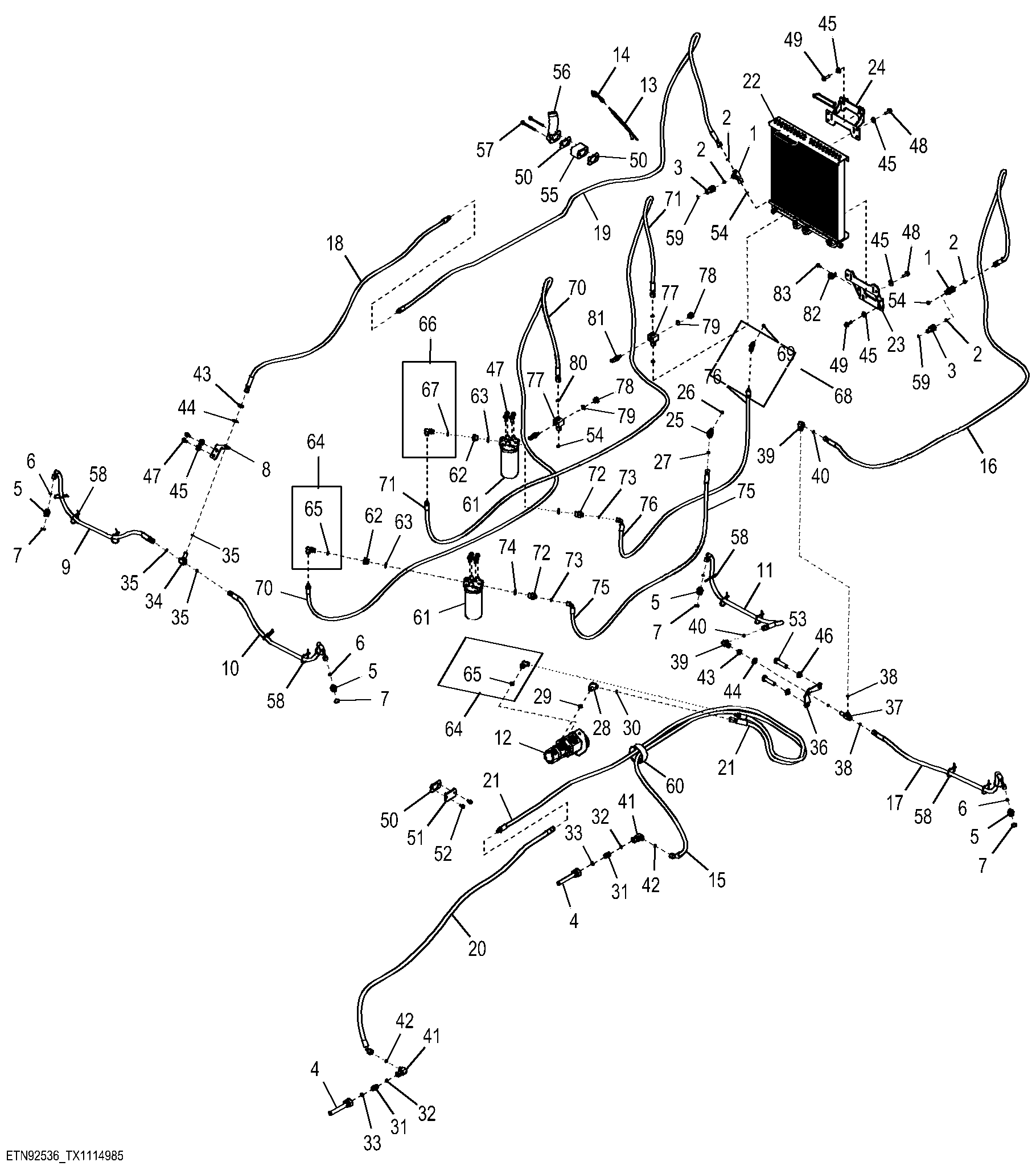

Axle Cooling and Filtration System for Z-Bar Configurations
