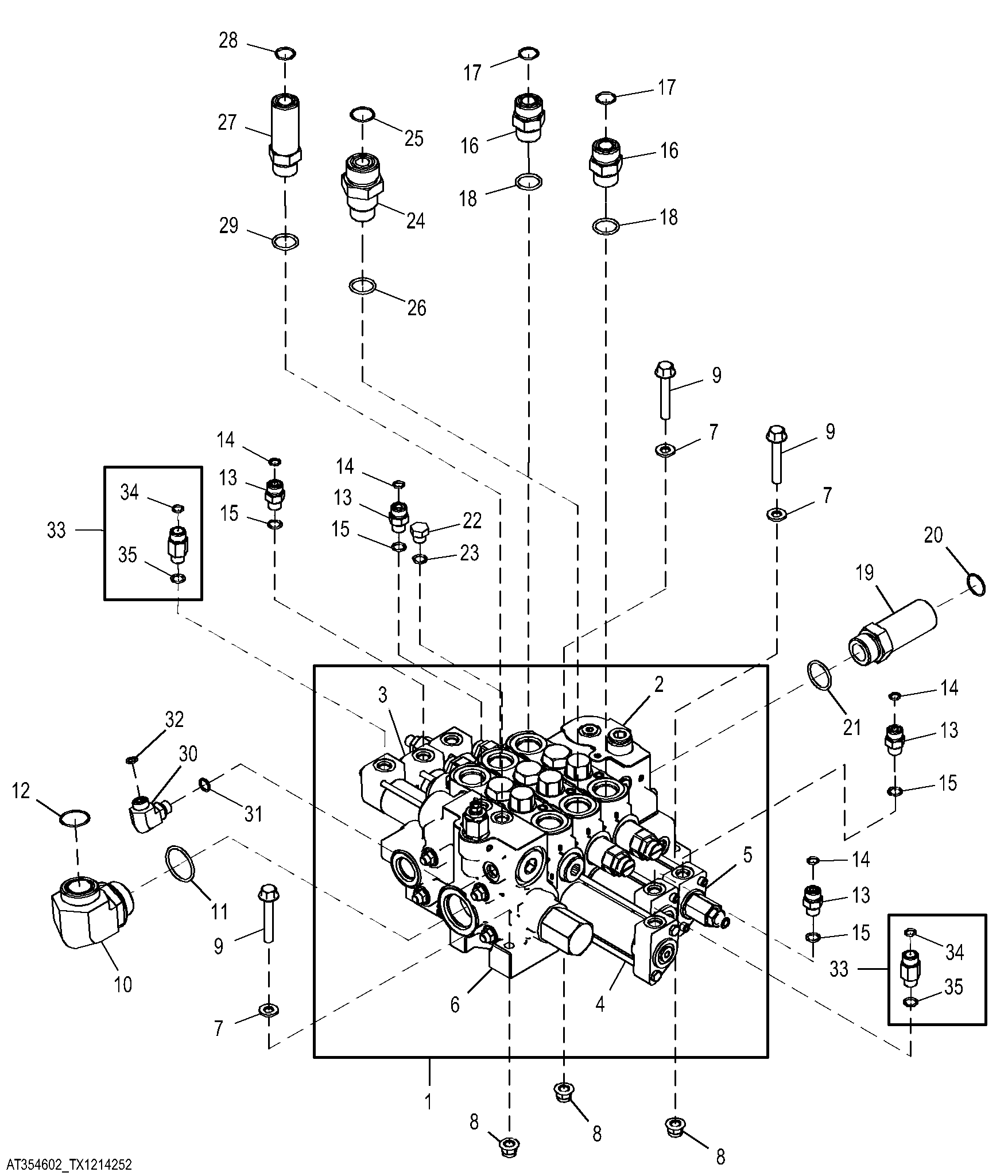

Three Spool Loader Control Valve (High Lift)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT209749	1	Rod	Three Spool Stud Assembly
1	AT316047	1	Hyd Actuated Control Valve	Three Spool
2	AT314008	1	Valve	Inlet Valve Section Components On Separate Page
3	AT314009	1	Valve	Bucket Valve Section Components On Separate Page
4	AT314018	1	Valve	Boom Valve Section Components On Separate Page
5	AT314046	1	Valve	Auxiliary Valve Section Components On Separate Page
6	AT314022	1	Flow Control Hyd. Valve	Outlet Valve Section Components On Separate Page
7	24M7239	3	Washer	10.700 X 21 X 2.500 mm
8	14M7400	3	Lock Nut	M10
9	19M7807	3	Screw	M10 X 60
10	38H1008	1	Elbow Fitting	-
11	U13639	1	O-Ring	-
12	T78612	1	O-Ring	-
13	38H1160	4	Adapter Fitting	-
14	T77613	4	O-Ring	-
15	R26448	4	O-Ring	-
16	38H1163	2	Adapter Fitting	-
17	T77858	2	O-Ring	-
18	U12547	2	O-Ring	-
19	38H1216	1	Adapter Fitting	-
20	T76938	1	O-Ring	-
21	R29936	1	O-Ring	-
22	R27218	1	Fitting Plug	-
23	R26448	1	O-Ring	-
24	T210479	1	Fitting	-
25	T76938	1	O-Ring	-
26	U12547	1	O-Ring	-
27	38H1215	1	Adapter Fitting	-
28	T77858	1	O-Ring	-
29	U12547	1	O-Ring	-
30	38H1004	1	Elbow Fitting	-
31	R26448	1	O-Ring	-
32	T77613	1	O-Ring	-
33	AT353746	2	Check Valve	-
34	T77613	1	O-Ring	-
35	R26448	1	O-Ring	-

Three Spool Loader Control Valve (High Lift)
