Three Lever To Four Lever Pilot Controller Conversion Kit (Z-Bar)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT364820	1	Field Installation Kit	Whole Goods
2	12H327	2	Lock Washer	3/4"
3	19M7805	1	Screw	M10 X 45
4	38H1418	2	Fitting	-
5	38H1160	2	Adapter Fitting	-
6	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1163	2	Adapter Fitting	-
9	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
10	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	38H1276	2	Adapter Fitting	-
12	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	62H1001	2	Adapter Fitting	SUB FOR 63H1001
14	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	AT191285	2	Hydraulic Hose	-
16	AT225432	1	Hydr./Pilot Control Valve	4-Lever Components Listed On Separate Page
17	AT314026	4	Rod	Four Spool Stud Assembly Not Illustrated
18	AT314046	1	Valve	Auxiliary Valve Section Components Listed On Separate Page
19	AT315136	1	Oil Line	-
20	AT315137	1	Oil Line	-
21	AT336507	2	Hydraulic Hose	Fabricate
22	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	AT340580	2	Hydraulic Hose	Fabricate
24	AT341524	1	Plate	-
25	AT349459	1	Hydraulic Hose	-
25	AT369295	1	Hydraulic Hose	Fabricate
26	N189220	2	Tie Band	-
27	T160549	1	Clamp	-
28	T174275	2	Lock Washer	30.950 mm (1-7/32")
29	T228348	1	Cover	-
30	T238029	2	Adjusting Strap	-
31	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
32	T78707	2	Nut	30.175 mm (1-3/16")
33	T81029	2	Nut	17.475 mm (11/16")

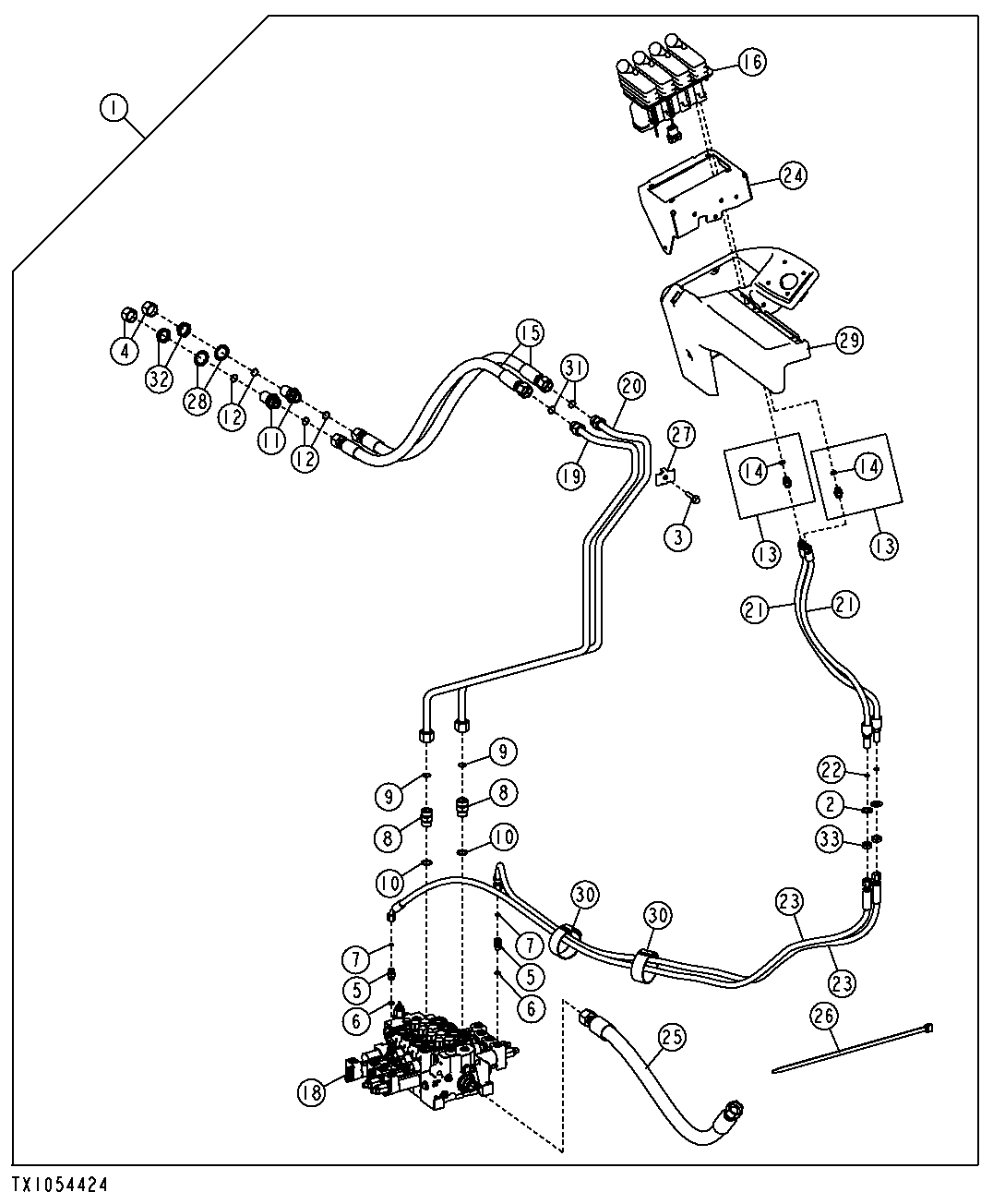

Three Lever To Four Lever Pilot Controller Conversion Kit (Z-Bar)

Нет текстового описания
