Открытый узел

Can Vehicle Gateway Field Kit

Can Vehicle Gateway Field Kit

Can Vehicle Gateway Field Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

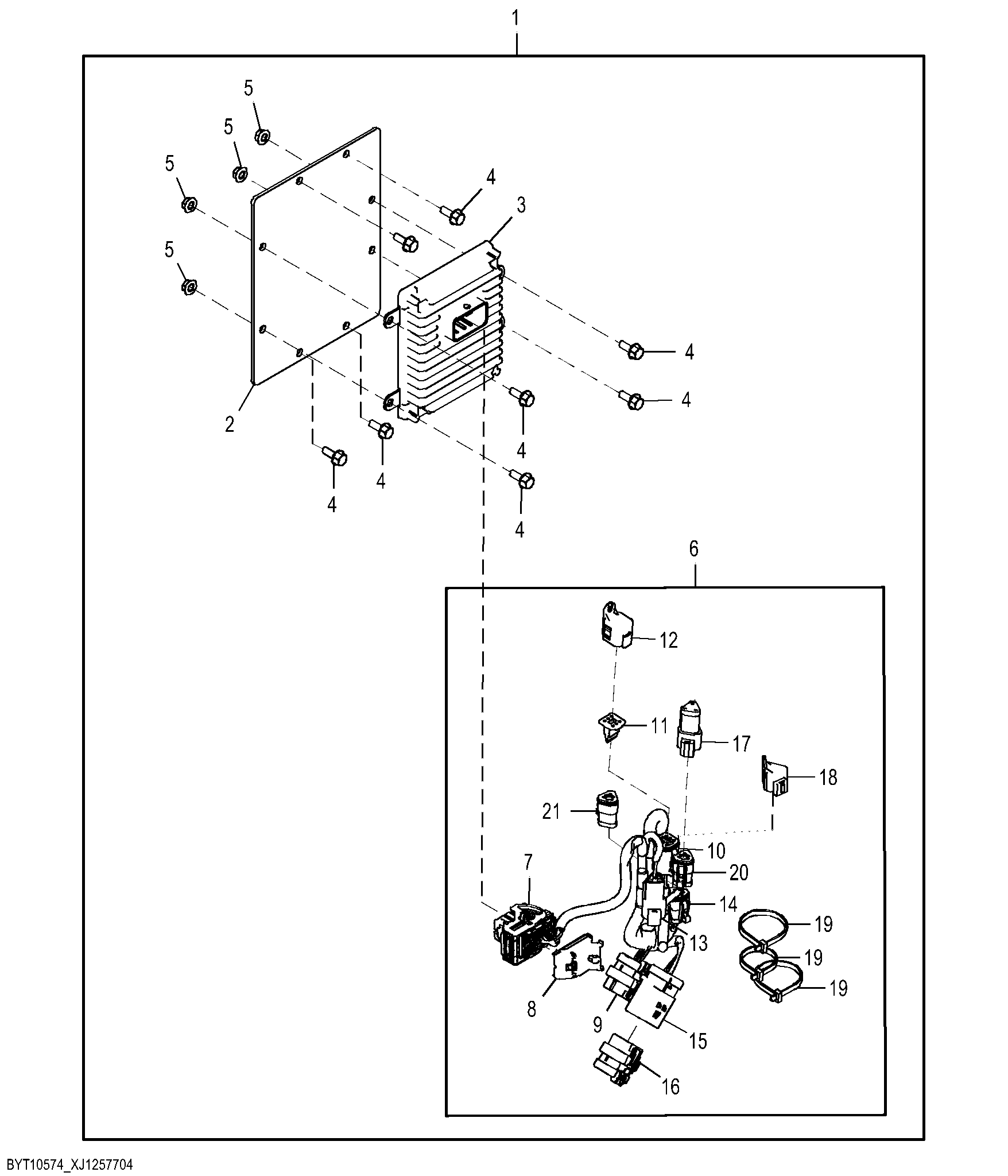

Can Vehicle Gateway Field Kit

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10574	1	Universal Monitor	Whole Goods
2	T398897	1	Plate	-
3	AT411098	1	Electronic Control Unit	-
4	19M7775	8	Screw	M6 X 16
5	14M7303	4	Flange Nut	M6
6	AT485438	1	Wiring Harness	Can Vehicle Gateway
7	57M10614	1	Elec. Connector Housing	To M50 Connector
7	57M10333	36	Elec. Connector Cavity Plug	-
7	57M10334	5	Elec. Connector Cavity Plug	-
7	57M10330	4	Elec. Connector Terminal	-
7	57M10617	3	Elec. Connector Housing	-
8	57M10613	1	Elec. Connector Housing	-
9	57M9800	1	Elec. Connector Housing	MTG To Main Cab
9	57M10631	3	Elec. Connector Terminal	-
9	57M9809	6	Elec. Connector Terminal	-
9	57M9814	3	Elec. Connector Cavity Plug	-
10	57M9957	1	Elec. Connector Housing	Third Party Can Connection
10	R78065	5	Elec. Connector Terminal	-
10	R78069	1	Elec. Connector Cavity Plug	-
11	57M8013	1	Elec.Connect Locking Device	-
12	57M11287	1	Elec. Connector Accessory	-
13	R78066	3	Elec. Connector Terminal	-
13	57M7676	1	Elec. Connector Terminal	-
13	57M13009	1	Elec. Connector Housing	Can 1/2
14	57M9652	1	Elec. Connector Terminal	Third Party Can
14	R78065	2	Elec. Connector Terminal	-
14	R78069	1	Elec. Connector Cavity Plug	-
14	57M8221	1	Elec.Connect Locking Device	-
15	57M9804	1	Elec. Connector Housing	To MTG Harness
15	R78066	9	Elec. Connector Terminal	-
15	57M9814	4	Elec. Connector Cavity Plug	-
16	57M9801	1	Elec. Connector Housing	-
17	57M8131	1	Electronic Terminator	-
18	57M11285	1	Elec. Connector Accessory	-
19	R44302	3	Tie Band	-
20	57M9652	3	Elec. Connector Terminal	Can1
20	R78065	3	Elec. Connector Terminal	-
20	57M8019	1	Elec. Connector Terminal	-
21	57M9652	1	Elec. Connector Terminal	Can2
21	R78065	1	Elec. Connector Terminal	-
21	57M8019	1	Elec. Connector Terminal	-
