Открытый узел

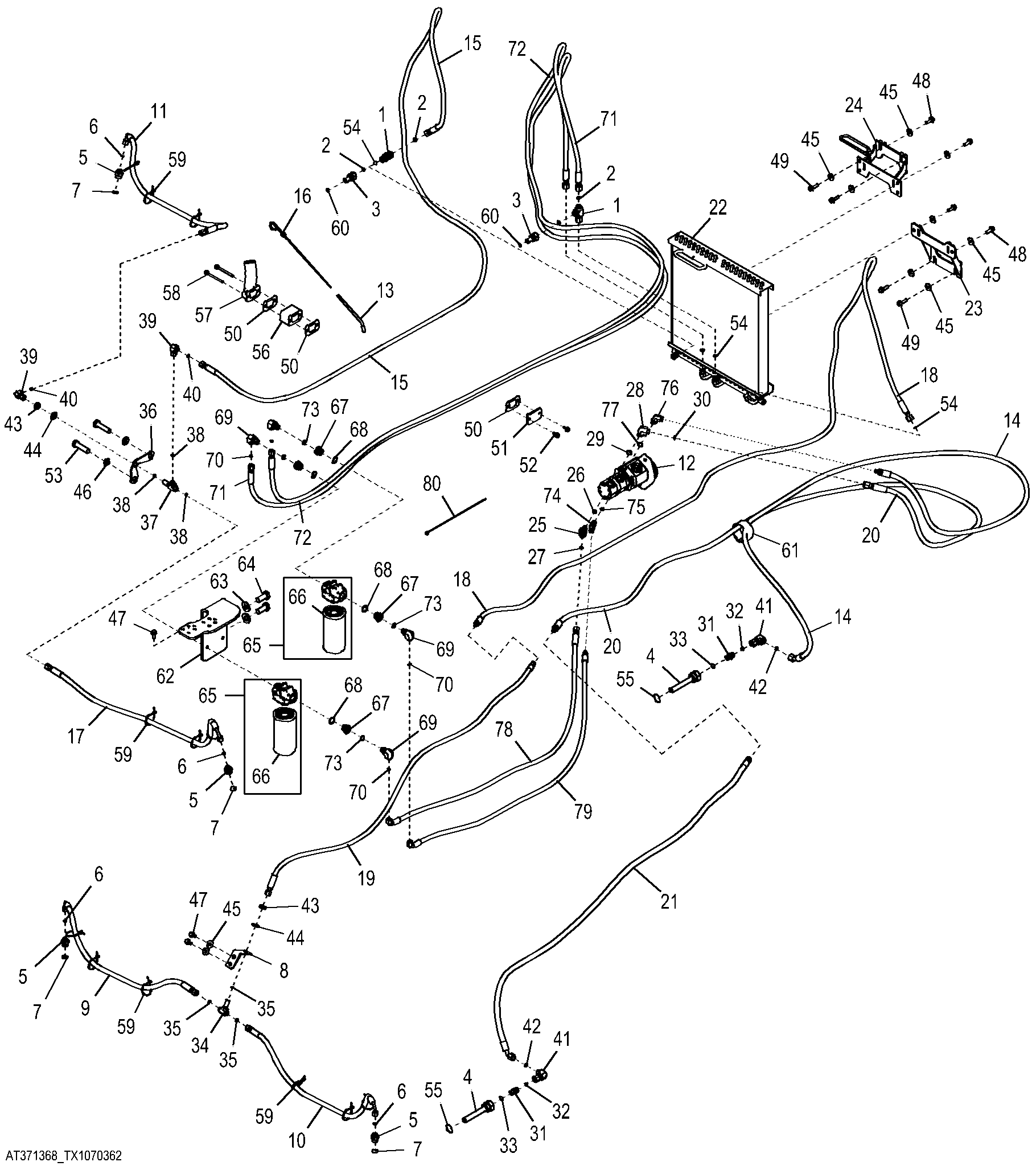

Axle Cooling System (Z-Bar) (626438 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1031	1	Tee Fitting	-
2	T77857	2	O-Ring	-
3	AT312932	2	Fitting	-
4	AT318157	2	Oil Filter	-
5	T213505	1	Fitting	-
6	T77613	1	O-Ring	-
7	R82198	1	O-Ring	-
8	AT318300	1	Plate	-
9	AT318377	1	Hydraulic Hose	Fabricate
10	AT318377	1	Hydraulic Hose	Fabricate
11	AT318569	1	Hydraulic Hose	Fabricate
12	AT338292	1	Pump	Fan Drive
12	AT338293	1	Oil Pump	Axle Oil Circulation
12	AT322735	1	Seal Kit	-
12	-	1	Part 12	Furnish Components
13	T225866	1	Dipstick Tube	-
14	AT371084	1	Hydraulic Hose	Fabricate
15	AT334170	1	Hydraulic Hose	Fabricate
16	AT329269	1	Dipstick	-
17	AT320846	1	Hydraulic Hose	Fabricate
18	AT332602	1	Hydraulic Hose	Fabricate
19	AT332601	1	Hydraulic Hose	Fabricate
20	AT332606	1	Hydraulic Hose	Fabricate
21	AT332605	1	Hydraulic Hose	-
22	AT330592	1	Oil Cooler	-
23	AT330606	1	Bracket	-
24	AT330678	1	Bracket	-
25	38H1004	1	Elbow Fitting	-
26	R26448	1	O-Ring	-
27	T77613	1	O-Ring	-
28	38H1005	1	Elbow Fitting	-
29	R26375	1	O-Ring	-
30	T77857	1	O-Ring	-
31	38H1161	1	Adapter Fitting	-
32	T77857	1	O-Ring	-
33	R26375	1	O-Ring	-
34	38H1291	1	Tee Fitting	-
35	T77613	3	O-Ring	-
36	T214468	1	Plate	-
37	38H1503	1	Tee Fitting	-
38	T77613	3	O-Ring	-
39	38H1094	1	Elbow Fitting	-
40	T77613	1	O-Ring	-
41	38H1095	1	Elbow Fitting	-
42	T77857	1	O-Ring	-
43	T81029	2	Nut	-
44	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
45	24M7296	10	Washer	10.500 X 30 X 2.500 mm
46	24M7361	2	Washer	19 X 34 X 3 mm
47	19M7785	10	Screw	M10 X 25
48	19M7786	4	Screw	M10 X 30
49	19M7835	4	Screw	M10 X 35
50	R136495	3	Gasket	-
51	R116296	1	Cover	-
52	19M7866	2	Screw	M8 X 20
53	19M8857	2	Cap Screw	M18 X 70
54	T77857	4	O-Ring	-
55	T215423	2	O-Ring	-
56	R136514	1	Spacer	-
57	R517353	1	Filler Neck	-
58	R504604	2	Cap Screw	-
59	R44302	12	Tie Band	-
60	T218003	2	Label	Axle Oil Circulation
61	T238029	1	Adjusting Strap	-
62	AT380104	1	Bracket	-
63	24M7242	2	Washer	21.400 X 42 X 5 mm
64	19M7950	2	Cap Screw	M20 X 45
65	AT371099	2	Filter	-
66	AT367635	2	Filter Element	-
67	R70921	4	Adapter Fitting	-
68	U12547	4	O-Ring	-
69	38H1010	1	Elbow Fitting	-
70	T77613	1	O-Ring	-
71	AT369202	1	Hydraulic Hose	Front Fabricate
72	AT369203	1	Hydraulic Hose	Rear Fabricate
73	R26375	1	O-Ring	-
74	62H1011	1	Adapter Fitting	(INCLUDES R26448)
75	R26448	1	O-Ring	-
76	62H1012	1	Adapter Fitting	(INCLUDES R26375)
77	R26375	1	O-Ring	-
78	AT380661	1	Hydraulic Hose	Front Fabricate, (SUB FOR AT369200)
79	AT380662	1	Hydraulic Hose	Rear Fabricate, (SUB FOR AT369201)
80	H77698	1	Tie Band	-

Axle Cooling System (Z-Bar) (626438 - )

Нет текстового описания
