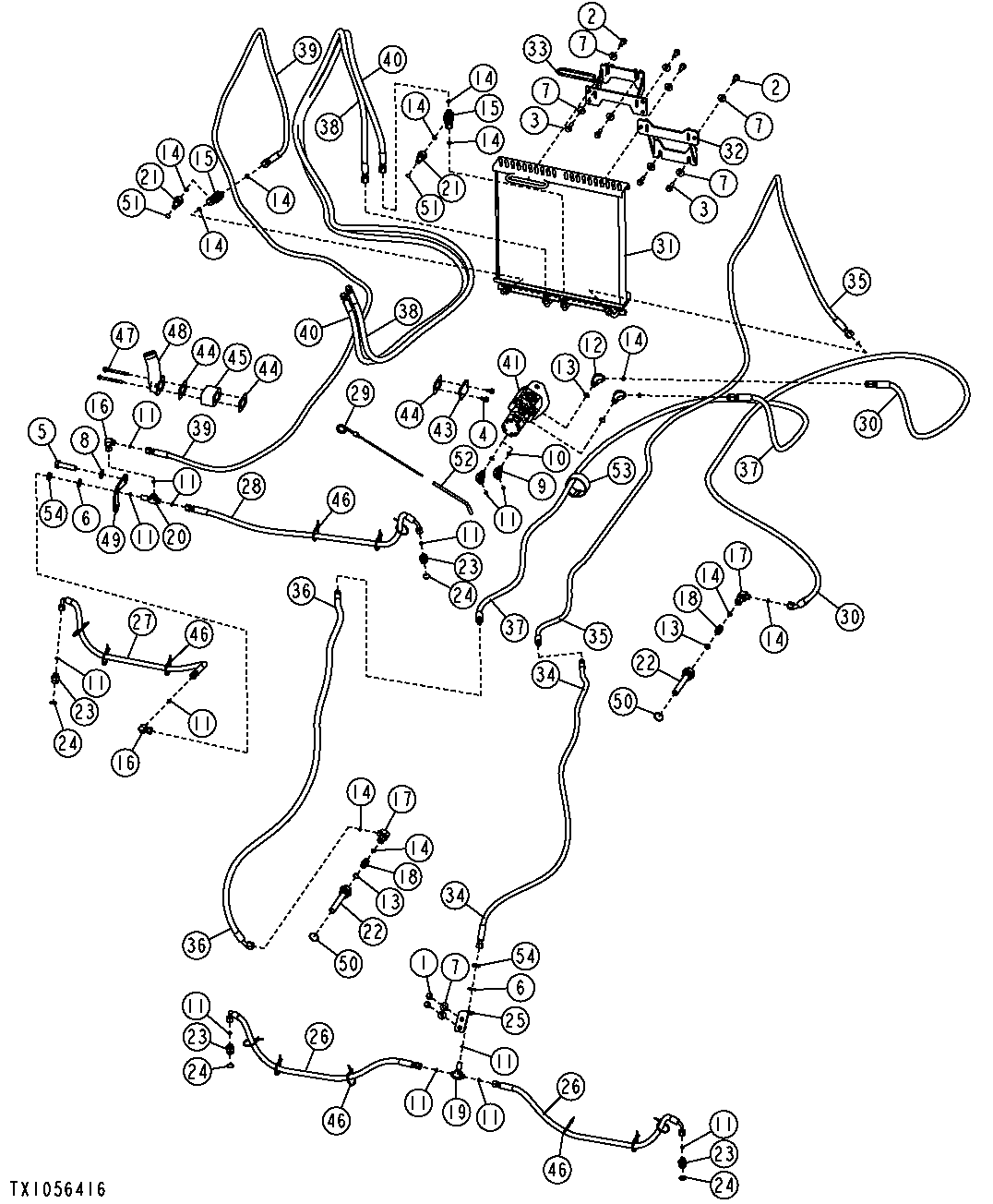

Axle Cooling System (Z-Bar) ( - 626437)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7785	2	Screw	M10 X 25
2	19M7786	4	Screw	M10 X 30
3	19M7835	4	Screw	M10 X 35
4	19M7866	2	Screw	M8 X 20
5	19M8857	2	Cap Screw	M18 X 70
6	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
7	24M7296	10	Washer	10.500 X 30 X 2.500 mm
8	24M7361	2	Washer	19 X 34 X 3 mm
9	38H1004	2	Elbow Fitting	-
10	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	14	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1005	2	Elbow Fitting	-
13	R26375	4	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
14	T77857	14	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
15	38H1031	2	Tee Fitting	-
16	38H1094	2	Elbow Fitting	-
17	38H1095	2	Elbow Fitting	-
18	38H1161	2	Adapter Fitting	-
19	38H1291	1	Tee Fitting	-
20	38H1503	1	Tee Fitting	-
21	AT312932	2	Fitting	-
22	AT318157	2	Oil Filter	-
23	T213505	4	Fitting	-
24	R82198	4	O-Ring	21 X 2 mm (0.827" X 0.079")
25	AT318300	1	Plate	-
26	AT318377	2	Hydraulic Hose	17.4752" X 1000 mm (39-1/4") X 17.4752", Fabricate
27	AT318569	1	Hydraulic Hose	17.4752" X 950 mm (37-1/2") X 17.4752", Fabricate
28	AT320846	1	Hydraulic Hose	17.4752" X 1150 mm (45-1/4") X 17.4752", Fabricate
29	AT329269	1	Dipstick	-
30	AT330267	1	Hydraulic Hose	13/16" X 3700 mm (145-3/4") X 13/16", Fabricate
31	AT330592	1	Oil Cooler	-
31	AT340697	1	Oil Cooler	Harsh Environment
32	AT330606	1	Bracket	-
33	AT330678	1	Bracket	-
34	AT332601	1	Hydraulic Hose	17.4752" X 2175 mm (85-3/4") X 17.4752", Fabricate
35	AT332602	1	Hydraulic Hose	Fabricate
36	AT332605	1	Hydraulic Hose	-
37	AT332606	1	Hydraulic Hose	Fabricate
38	AT333459	1	Hydraulic Hose	17.4752" X 3950 mm (155-1/2") X 13/16", Fabricate
39	AT334170	1	Hydraulic Hose	17.4752" X 4000 mm (157-1/2") X 13/16", Fabricate
40	AT334639	1	Hydraulic Hose	17.4752" X 3950 mm (155-1/2") X 13/16", Fabricate
41	AT322735	1	Seal Kit	-
41	AT338293	1	Oil Pump	Axle Oil Circulation
41	AT338292	1	Pump	Fan Drive
42	H77698	4	Tie Band	Not Illustrated
43	R116296	1	Cover	-
44	R136495	3	Gasket	-
45	R136514	1	Spacer	-
46	R44302	12	Tie Band	-
47	R504604	2	Cap Screw	-
48	R517353	1	Filler Neck	-
49	T214468	1	Plate	-
50	L156164	2	O-Ring	33 X 2.200 mm (1.299" X 0.087")
51	T218003	2	Label	Axle/Gearbox Oil
52	T225866	1	Dipstick Tube	-
53	T238029	1	Adjusting Strap	-
54	T81029	2	Nut	17.475 mm (11/16")

Axle Cooling System (Z-Bar) ( - 626437)
