Открытый узел

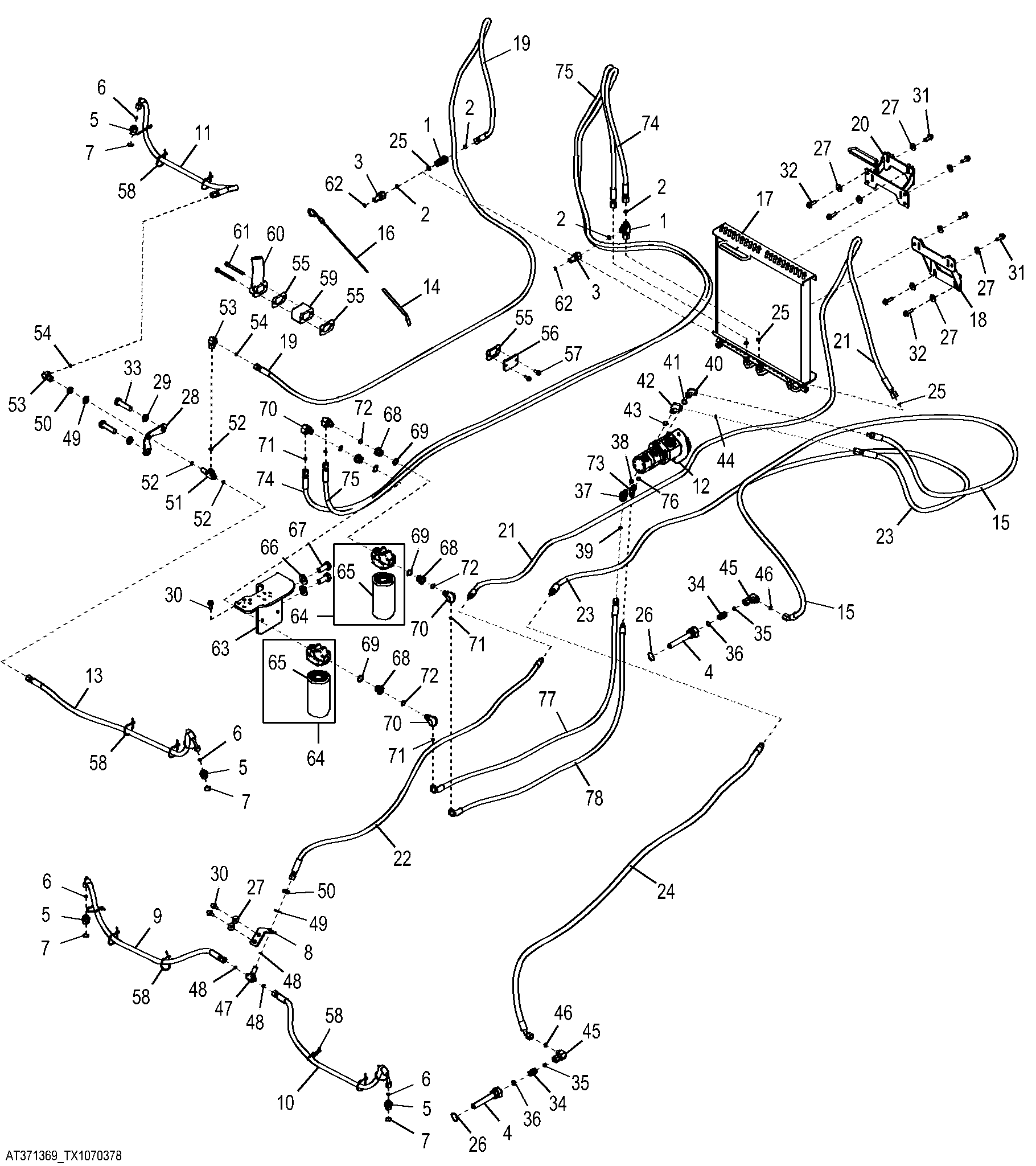

Axle Cooling System (Powerllel™) (626438 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1031	1	Tee Fitting	-
2	T77857	2	O-Ring	-
3	AT312932	2	Fitting	-
4	AT318157	2	Oil Filter	-
5	T213505	1	Fitting	-
6	T77613	1	O-Ring	-
7	R82198	1	O-Ring	-
8	AT318300	1	Plate	-
9	AT318377	1	Hydraulic Hose	-
10	AT318377	1	Hydraulic Hose	-
11	AT318569	1	Hydraulic Hose	-
12	AT338292	1	Pump	Fan Drive
12	AT338293	1	Oil Pump	Axle Oil Circulation
12	AT322735	1	Seal Kit	-
12	-	1	Part 12	Furnish Components
13	AT320846	1	Hydraulic Hose	-
14	T225866	1	Dipstick Tube	-
15	AT371084	1	Hydraulic Hose	-
16	AT329269	1	Dipstick	-
17	AT330592	1	Oil Cooler	-
18	AT330606	1	Bracket	-
19	AT334170	1	Hydraulic Hose	-
20	AT330678	1	Bracket	-
21	AT332602	1	Hydraulic Hose	-
22	AT332601	1	Hydraulic Hose	-
23	AT332606	1	Hydraulic Hose	-
24	AT332605	1	Hydraulic Hose	-
25	T77857	4	O-Ring	-
26	T215423	2	O-Ring	-
27	24M7296	10	Washer	10.500 X 30 X 2.500 mm
28	T214468	1	Plate	-
29	24M7361	2	Washer	19 X 34 X 3 mm
30	19M7785	10	Screw	M10 X 25
31	19M7786	4	Screw	M10 X 30
32	19M7835	4	Screw	M10 X 35
33	19M8857	2	Cap Screw	M18 X 70
34	38H1161	1	Adapter Fitting	-
35	T77857	1	O-Ring	-
36	R26375	1	O-Ring	-
37	38H1004	1	Elbow Fitting	-
38	R26448	1	O-Ring	-
39	T77613	1	O-Ring	-
40	62H1012	1	Adapter Fitting	(INCLUDES R26375)
41	R26375	1	O-Ring	-
42	38H1005	1	Elbow Fitting	-
43	R26375	1	O-Ring	-
44	T77857	1	O-Ring	-
45	38H1095	1	Elbow Fitting	-
46	T77857	1	O-Ring	-
47	38H1291	1	Tee Fitting	-
48	T77613	3	O-Ring	-
49	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
50	T81029	2	Nut	-
51	38H1503	1	Tee Fitting	-
52	T77613	3	O-Ring	-
53	38H1094	1	Elbow Fitting	-
54	T77613	1	O-Ring	-
55	R136495	3	Gasket	-
56	R116296	1	Cover	-
57	19M7866	2	Screw	M8 X 20
58	R44302	12	Tie Band	-
59	R136514	1	Spacer	-
60	R517353	1	Filler Neck	-
61	R504604	2	Cap Screw	-
62	T218003	2	Label	Axle Oil Circulation
63	AT380104	1	Bracket	-
64	AT371099	2	Filter	-
65	AT367635	2	Filter Element	-
66	24M7242	2	Washer	21.400 X 42 X 5 mm
67	19M7950	2	Cap Screw	M20 X 45
68	R70921	4	Adapter Fitting	-
69	U12547	4	O-Ring	-
70	38H1010	1	Elbow Fitting	-
71	T77613	1	O-Ring	-
72	R26375	1	O-Ring	-
73	62H1011	1	Adapter Fitting	(INCLUDES R26448)
74	AT369202	1	Hydraulic Hose	Front
75	AT369203	1	Hydraulic Hose	Rear
76	R26448	1	O-Ring	-
77	AT380661	1	Hydraulic Hose	Front, (SUB FOR AT369200)
78	AT380662	1	Hydraulic Hose	Rear, (SUB FOR AT369201)

Axle Cooling System (Powerllel™) (626438 - )

Нет текстового описания
