Joystick to Dual Joystick Conversion Kit (Z-Bar)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7400	1	Lock Nut	M10
2	19M7786	2	Screw	M10 X 30
3	19M7805	1	Screw	M10 X 45
4	19M8553	8	Screw	M6 X 16
5	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
6	38H1418	2	Fitting	-
7	38H1160	2	Adapter Fitting	-
8	R26448	5	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
9	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	38H1163	2	Adapter Fitting	-
11	T77858	8	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
12	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	38H1212	1	Adapter Fitting	-
14	38H1276	2	Adapter Fitting	-
15	62H1001	2	Adapter Fitting	SUB FOR 63H1001
16	AT208760	1	Multi-Functional Controller	-
38	AT226615	2	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
39	AT228260	1	Plate	-
40	AT304880	1	Oil Line	-
42	AT304881	1	Oil Line	-
43	U46753	2	Hose Clamp	-
44	AT313424	2	Hydraulic Hose	13/16" X 1550 mm (61") X 13/16", Fabricate
45	AT314046	1	Valve	-
45	AT314013	1	Seal Kit	-
46	AT209750	2	Pressure Relief Valve	-
46	AT209748	1	Seal Kit	-
48	AT314011	1	Valve	-
49	AT314012	1	Valve	-
52	AT322559	1	Oil Line	-
54	AT322567	1	Oil Line	-
55	T201887	1	Spacer	-
56	T210447	1	Plate	-
57	T215434	2	Clamp	-
59	T78707	2	Nut	30.175 mm (1-3/16")
60	T174275	2	Lock Washer	30.950 mm (1-7/32")
65	AT314763	1	Control Lever	Furnish Components Whole Goods, NLA

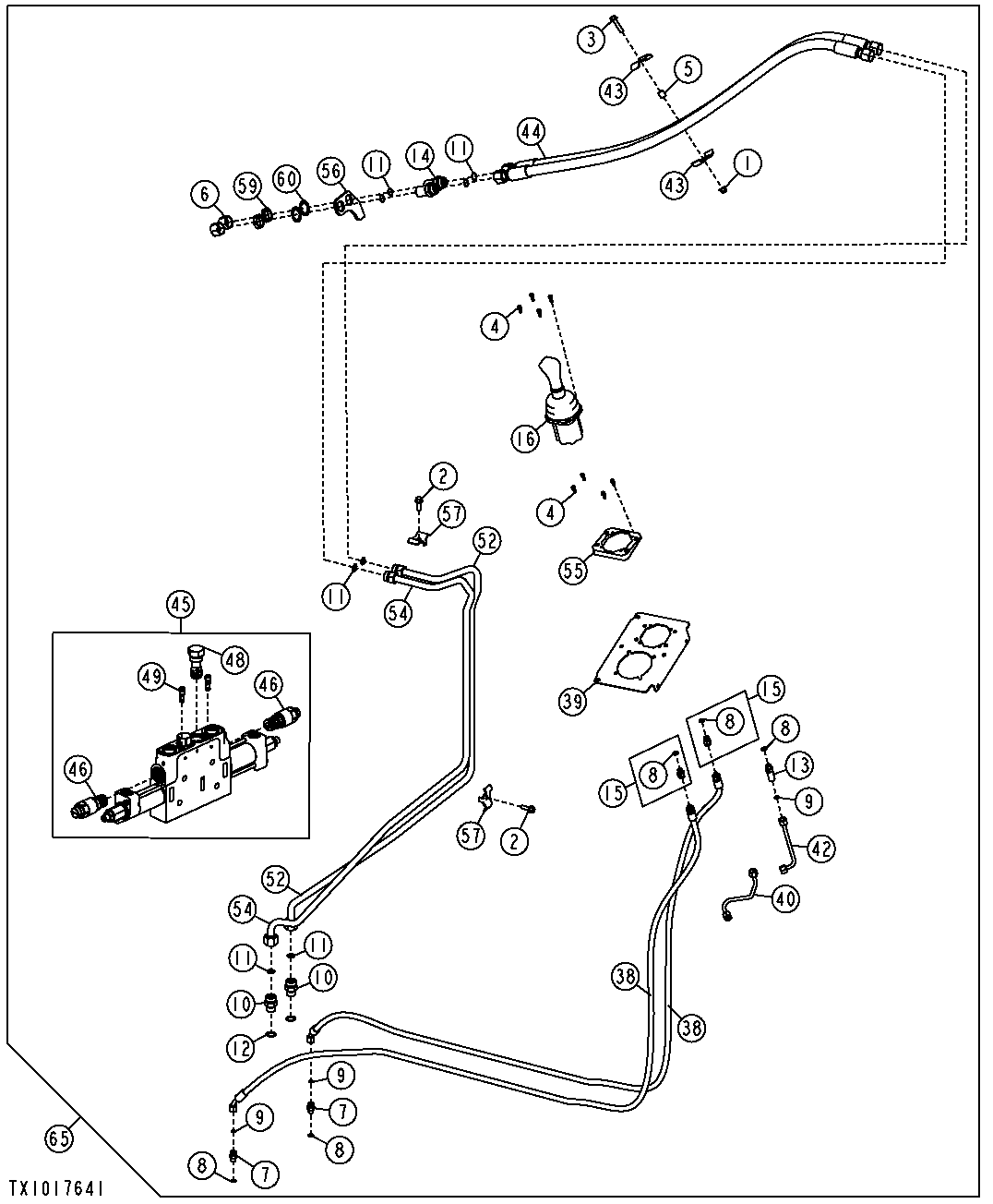

Joystick to Dual Joystick Conversion Kit (Z-Bar)

Нет текстового описания
