Открытый узел

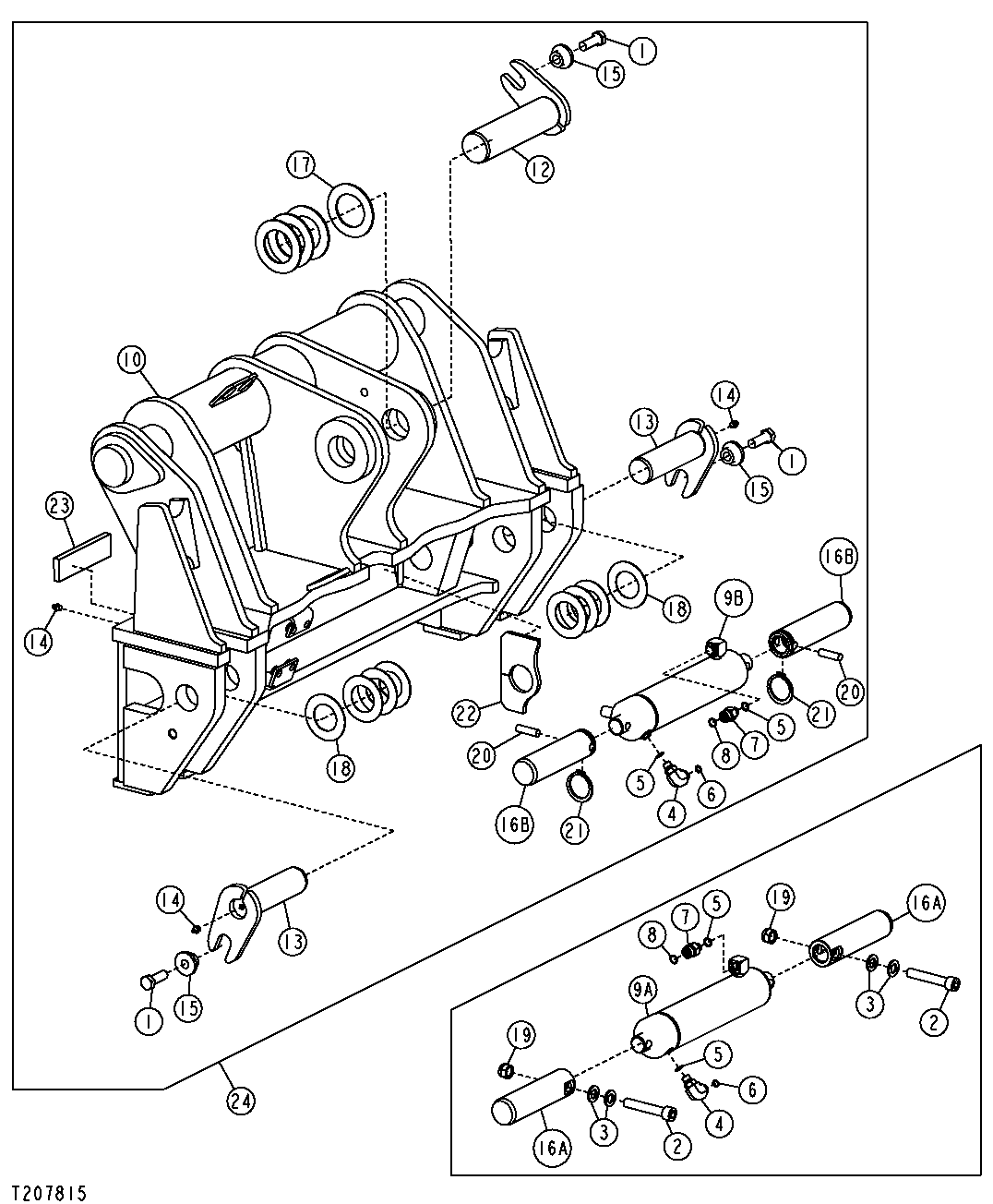

Standard Coupler (Z-Bar) ( - 609732)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7489	3	Cap Screw	M16 X 45
2	19M8342	2	Screw	M16 X 90
3	24M7338	6	Washer	17 X 30 X 3 mm
4	38H1004	1	Elbow Fitting	-
5	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	38H1173	1	Adapter Fitting	-
8	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	-	1	Part 11	( AT300956 NLA), (USE WITH AH212349 ) (SUB AT311386)
10	-	1	Part 12	( AT317966 NLA), (USE WITH <service-part qty="1">AH217541</service-part> ) (SUB <service-part qty="1">AT336444</service-part>, <service-part qty="2">T227405</service-part >, <service-part qty="1">AH223400</service-part>, <service-part qty="2" >T61226</service-part>, <service-part qty="2">H89151</service-part >, <service-part qty="4">19M8011</service-part>, <service-part qty="4" >24M7240</service-part>, <service-part qty="2">38H1160</service-part > AND <service-part qty="1">T227409</service-part> ) (ALSO ORDER <service-part qty="1">AT336884</service-part> OR <service-part qty="1">AT336885</service-part > (AT336884 WITH STANDARD LIFT) (AT336885 WITH HIGH LIFT))
12	AT308022	1	Pin	-
13	AT308023	2	Pin Fastener	-
14	JD7759	4	Lubrication Fitting	-
15	T176064	3	Bushing	16.300 X 28.600 X 21.900 mm (0.642" X 1.126" X 0.862")
17	T102171	4	Washer	66.500 X 108 X 3 mm (2.618" X 4.252" X 0.118"), (SUB FOR T54474)
18	T63795	8	Washer	51.500 X 89 X 1.500 mm (2.028" X 3.504" X 0.059")
19	14M7328	2	Lock Nut	M16
20	H89151	2	Dowel Pin	12.700 X 45.720 mm (1/2" X 1.800")
21	T61226	2	Snap Ring	-
22	-	1	Part 24	( <service-part>T214141</service-part> NLA)
23	-	1	Part 25	( T213441 NLA)
24	-	1	Part 26	(NLA), (SUB AT311386)
9A	AH212349	1	Hydraulic Cylinder	(COMPONENTS LISTED ON ANOTHER PAGE)
9B	AH217541	1	Hydraulic Cylinder	(COMPONENTS LISTED ON ANOTHER PAGE)
16A	T209423	2	Pin Fastener	(SUB FOR T200758)
16B	T213442	2	Pin Fastener	50.885 X 193 mm (2.003" X 7.598")

Standard Coupler (Z-Bar) ( - 609732)

Нет текстового описания
