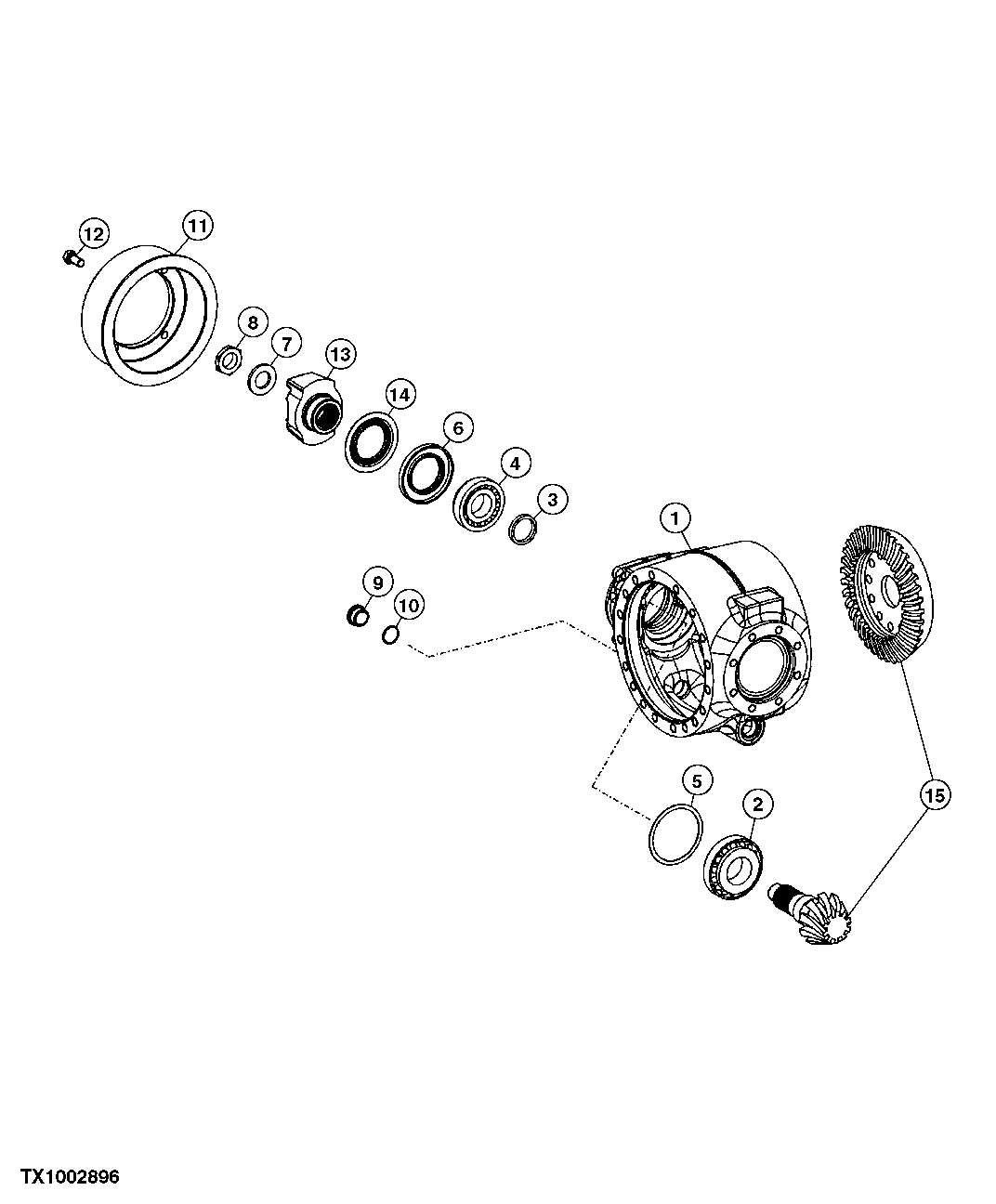

Rear Axle Input Housing, Yoke and Spiral Bevel Gear Set (604690 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T223049	1	Housing	-
2	AT184277	1	Cylindrical Roller Bearing	-
3	TTZF160211	1	Spacer	(9.2 INCHES)
3	TTZF160213	1	Spacer	(9.4 INCHES)
3	TTZF160212	1	Spacer	(9.3 INCHES)
3	TTZF160210	1	Spacer	(9.1 INCHES)
3	AT253076	1	Spacer	(8.9 INCHES)
3	T164866	1	Shim	( <service-part>AT253073</service-part> NLA) (8.3 INCHES)
3	AT253072	1	Spacer	(8.4 INCHES)
3	T164864	1	Shim	( <service-part>AT253071</service-part> NLA) (8.5 INCHES)
3	AT253070	1	Spacer	( <service-part>AT253070</service-part> NLA) (8.6 INCHES)
3	T164862	1	Shim	( <service-part>AT253069</service-part> NLA) (8.7 INCHES)
3	AT253067	1	Spacer	(8.8 INCHES)
4	AT184279	1	Cylindrical Roller Bearing	-
5	T164852	1	Shim	(1.3 INCHES)
5	T164860	1	Shim	(1.1 INCHES)
5	T164859	1	Shim	(2.0 INCHES)
5	T164858	1	Shim	(1.9 INCHES)
5	T164857	1	Shim	(1.8 INCHES)
5	T164856	1	Shim	(1.7 INCHES)
5	T164855	1	Shim	(1.6 INCHES)
5	T164853	1	Shim	(1.4 INCHES)
5	T164851	1	Shim	(1.2 INCHES)
5	T164850	1	Shim	(1.0 INCHES)
5	T164849	1	Shim	(0.9 INCHES)
5	T164848	1	Shim	(0.8 INCHES)
5	T164847	1	Shim	(0.7 INCHES)
5	T164854	1	Shim	(1.5 INCHES)
6	AT259765	1	Seal	-
7	T164872	1	Washer	-
8	T164873	1	Nut	-
9	AT327281	1	Plug	-
10	Z77164	1	O-Ring	(SUB FOR AT321403)
11	T222894	1	Pressed Flanged Housing	-
12	19M8035	1	Cap Screw	M16 X 35
13	T219319	1	Flange	-
14	AT253115	1	Dust Shield	-
15	AT329870	1	Bevel Gear Drive	-

Rear Axle Input Housing, Yoke and Spiral Bevel Gear Set (604690 - )
