Hydraulic Actuated Differential Carrier Assembly (604690 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T219322	1	Housing	-
2	T219323	1	Clutch Plate	-
3	T219325	2	Spacer	-
4	T219330	2	Clutch Plate	-
5	T219333	2	Pinion	-
6	T219334	4	Bevel Gear	-
7	T219340	4	Thrust Washer	-
8	T219343	1	Pinion Shaft	-
9	T219344	2	Pinion Shaft	-
10	34M7044	2	Spring Pin	6 X 50 mm, (SUB FOR AT259571, THIS APPLICATION)
11	T219345	6	Pin	-
12	T219346	11	Disk With Outer Spline	(1.2 INCHES)
12	T219358	11	Disk With Outer Spline	(1.3 INCHES)
12	T219360	11	Disk With Outer Spline	(1.4 INCHES)
13	AT184334	7	Disk With Inner Spline	-
14	T219363	1	Disk With Outer Spline	-
15	T164938	12	Lever	-
16	T164970	1	Retainer	-
17	T219364	1	Cover	-
18	T219365	12	Self-Locking Screw	-
19	T219366	1	Piston	-
20	T116867	1	O-Ring	-
21	AT321454	1	O-Ring	-
22	AT184309	1	Needle Bearing	-
23	T219367	1	Actuator	-
24	T164980	1	Compression Spring	-
25	T159519	1	Snap Ring	-
26	T219371	1	Actuator	-
27	T219373	1	Hub	-
28	AT258957	1	Snap Ring	-
29	AT327285	1	Tapered Roller Bearing	-
30	AT184284	1	Tapered Roller Bearing	-
31	34M7049	1	Spring Pin	8 X 50 mm

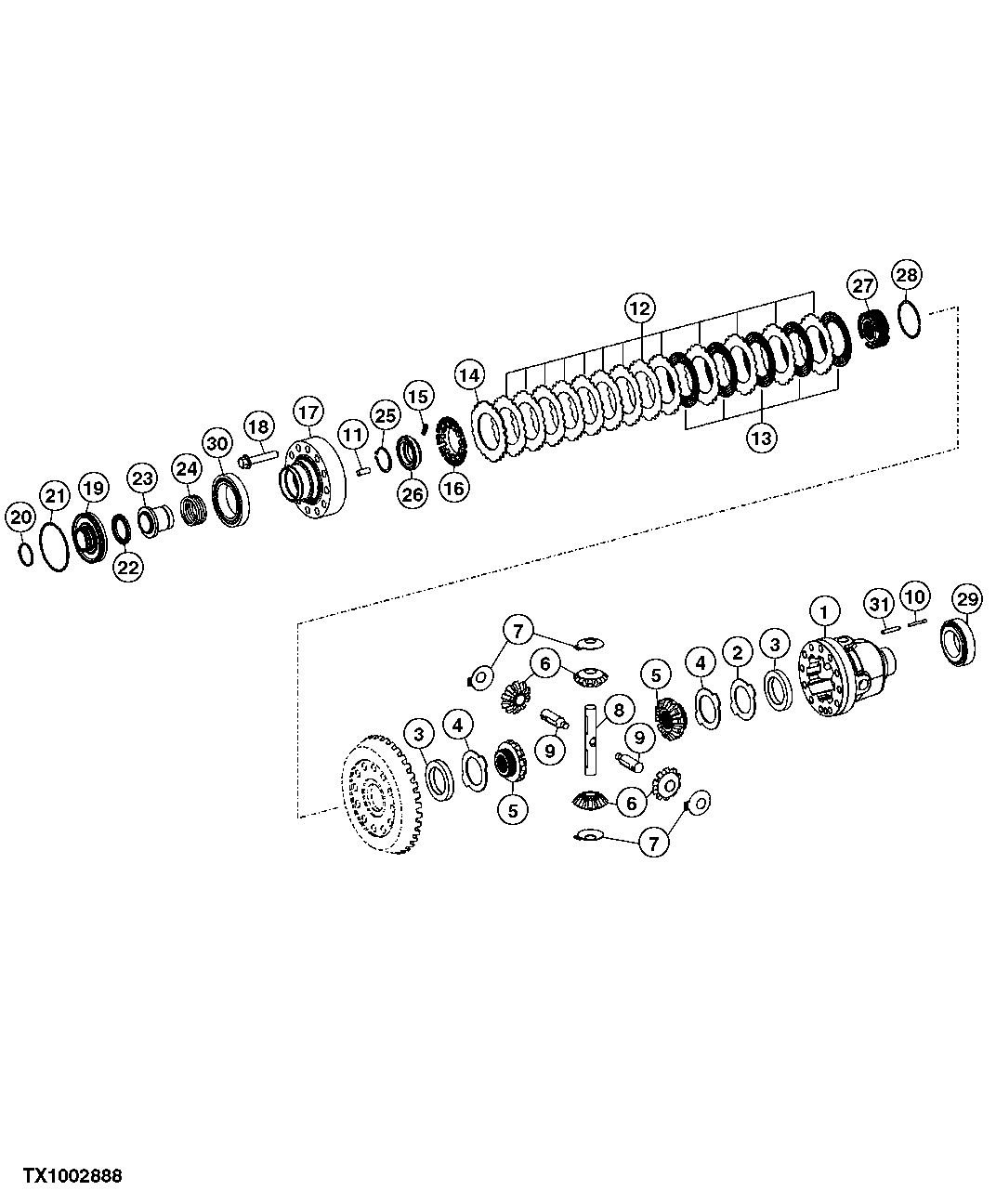

Hydraulic Actuated Differential Carrier Assembly (604690 - )
