Addition of Auxiliary to Joystick Controller Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

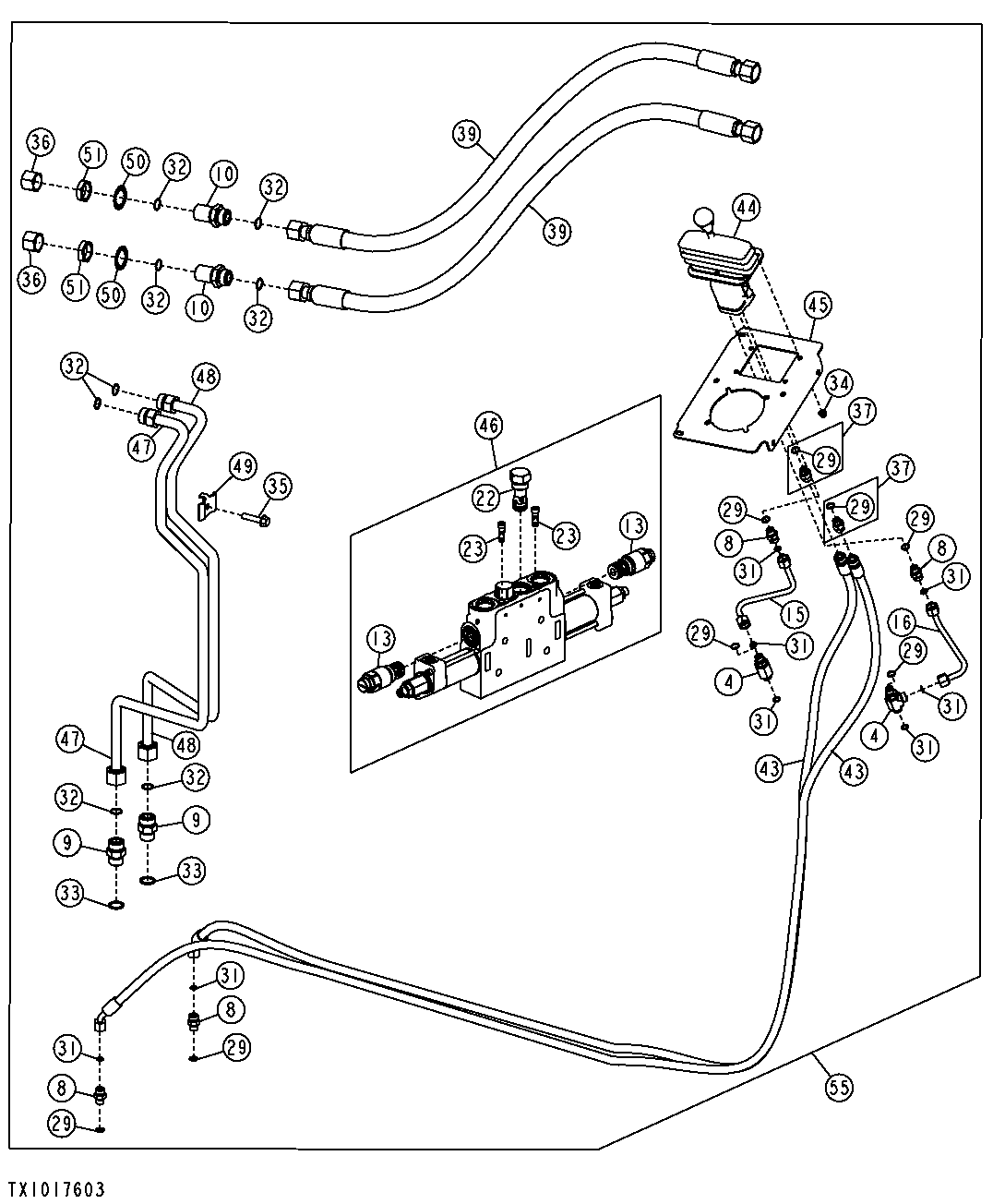

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	38H1023	2	Tee Fitting	-
8	38H1160	4	Adapter Fitting	-
9	38H1163	2	Adapter Fitting	-
10	38H1276	2	Adapter Fitting	-
13	AT209750	2	Pressure Relief Valve	-
13	AT209748	1	Seal Kit	-
15	AT226132	1	Oil Line	-
16	AT226133	1	Oil Line	-
22	AT314011	1	Valve	-
23	AT314012	2	Valve	-
29	R26448	8	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
31	T77613	8	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	T77858	8	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
33	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
34	14M7397	4	Lock Nut	M6
35	19M7805	1	Screw	M10 X 45
36	38H1418	2	Fitting	-
37	62H1001	2	Adapter Fitting	SUB FOR 63H1001
39	AT191285	2	Hydraulic Hose	30.1752" X 1295 mm (51") X 30.1752"
43	AT226615	2	Hydraulic Hose	-
44	AT228250	1	Hydr./Pilot Control Valve	-
45	AT228261	1	Plate	-
46	AT314046	1	Valve	-
46	AT314013	1	Seal Kit	-
47	AT315134	1	Oil Line	-
48	AT315135	1	Oil Line	-
49	T160549	1	Clamp	-
50	T174275	2	Lock Washer	30.950 mm (1-7/32")
51	T78707	2	Nut	30.175 mm (1-3/16")
55	AT316507	1	Assembly Line Parts	Order Components, NLA

Addition of Auxiliary to Joystick Controller Kit

Нет текстового описания
