Two Spool Loader Control Valve ( - 589004)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT225787	1	Spool Valve	(FOR USE WITH TOOL CARRIER), (SUB FOR AT224143)
1	AT225784	1	Spool Valve	(SUB FOR AT224136)
1	AT225790	1	Spool Valve	HIGH LIFT, (SUB FOR AT224142)
1	AT211574	1	Seal Kit	(INCLUDES SEALS FOR SEALING BETWEEN FOUR SECTION JOINTS) (NOT ILLUSTRATED)
2	U12547	4	O-Ring	-
3	T176944	1	Orifice	(USED ONLY WITH Z-BAR LINKAGE), (SUB FOR T172883)
4	38H1179	2	Adapter Fitting	-
5	38H1163	2	Adapter Fitting	-
6	R29936	1	O-Ring	-
6	R29936	2	O-Ring	-
7	38H1194	1	Adapter Fitting	-
8	R26448	6	O-Ring	-
9	38H1004	1	Elbow Fitting	-
10	38H1160	3	Adapter Fitting	(BUCKET SECTION) (INLET SECTION)
10	AT220096	2	Check Valve	(BOOM SECTION) (DO NOT USE WITH T169955 ORIFICE), (SUB FOR (2) AT220388)
11	38H1030	1	Tee Fitting	-
12	24M7239	3	Washer	10.700 X 21 X 2.500 mm
13	19M8528	1	Screw	M10 X 55
14	19M7944	2	Screw	M10 X 120
15	14M7400	3	Lock Nut	M10
16	38H1196	1	Adapter Fitting	-
17	T77613	9	O-Ring	-
18	T77858	3	O-Ring	-
18	T77858	5	O-Ring	-
19	T78612	2	O-Ring	-
20	T76938	2	O-Ring	-
21	38H1176	1	Adapter Fitting	-
22	T77857	1	O-Ring	-
23	38H1416	1	Fitting	-
24	T170062	2	Fitting	(USE WITH TOOL CARRIER)
25	R29936	2	O-Ring	-
26	T177440	1	Plate	Orifice
27	38H1026	1	Tee Fitting	-
28	AT210663	1	Tee Fitting	-
28	38H1572	1	Tee Fitting	-
29	38H1033	2	Tee Fitting	(USE WITH TOOL CARRIER)

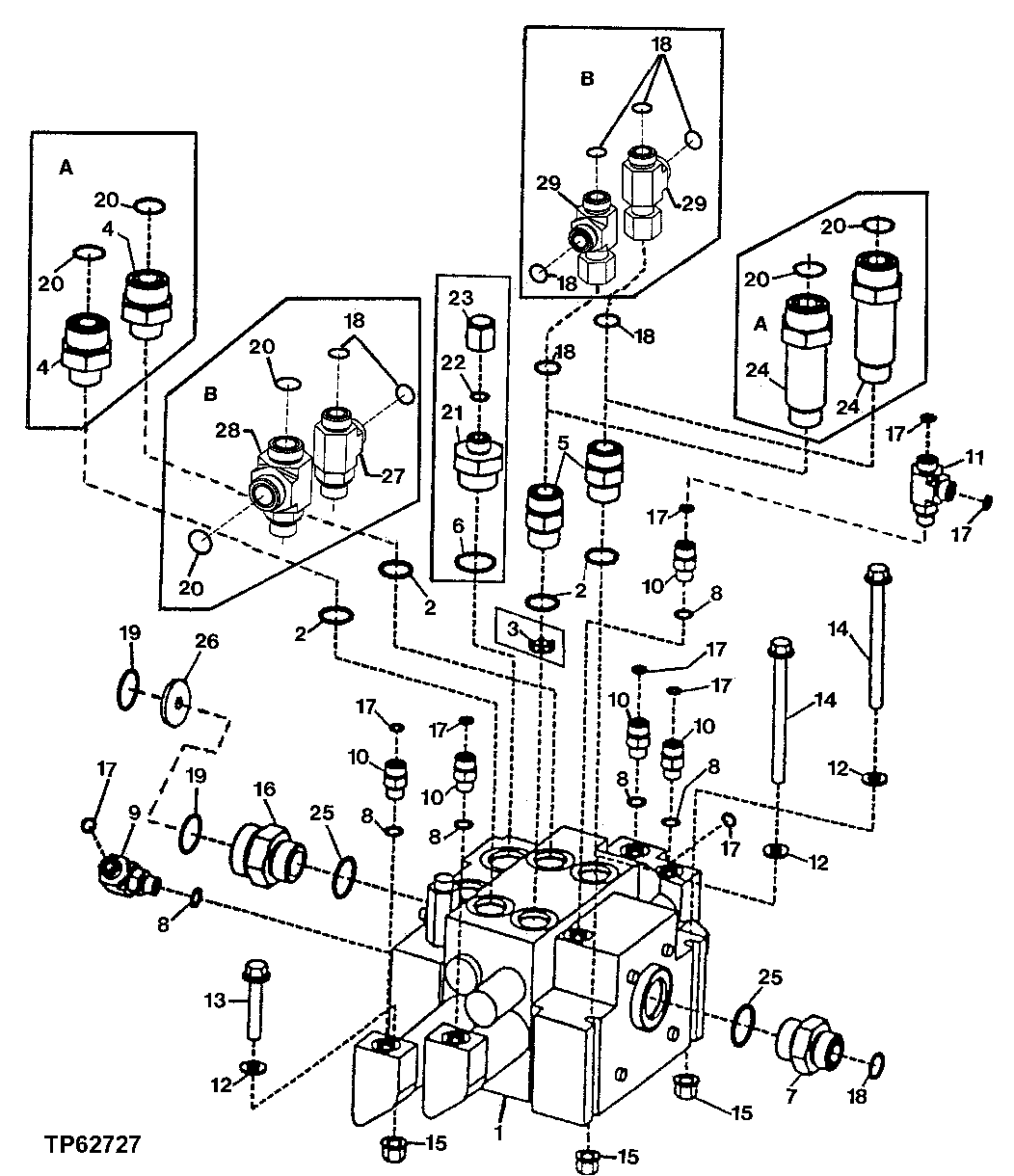

Two Spool Loader Control Valve ( - 589004)
