Открытый узел

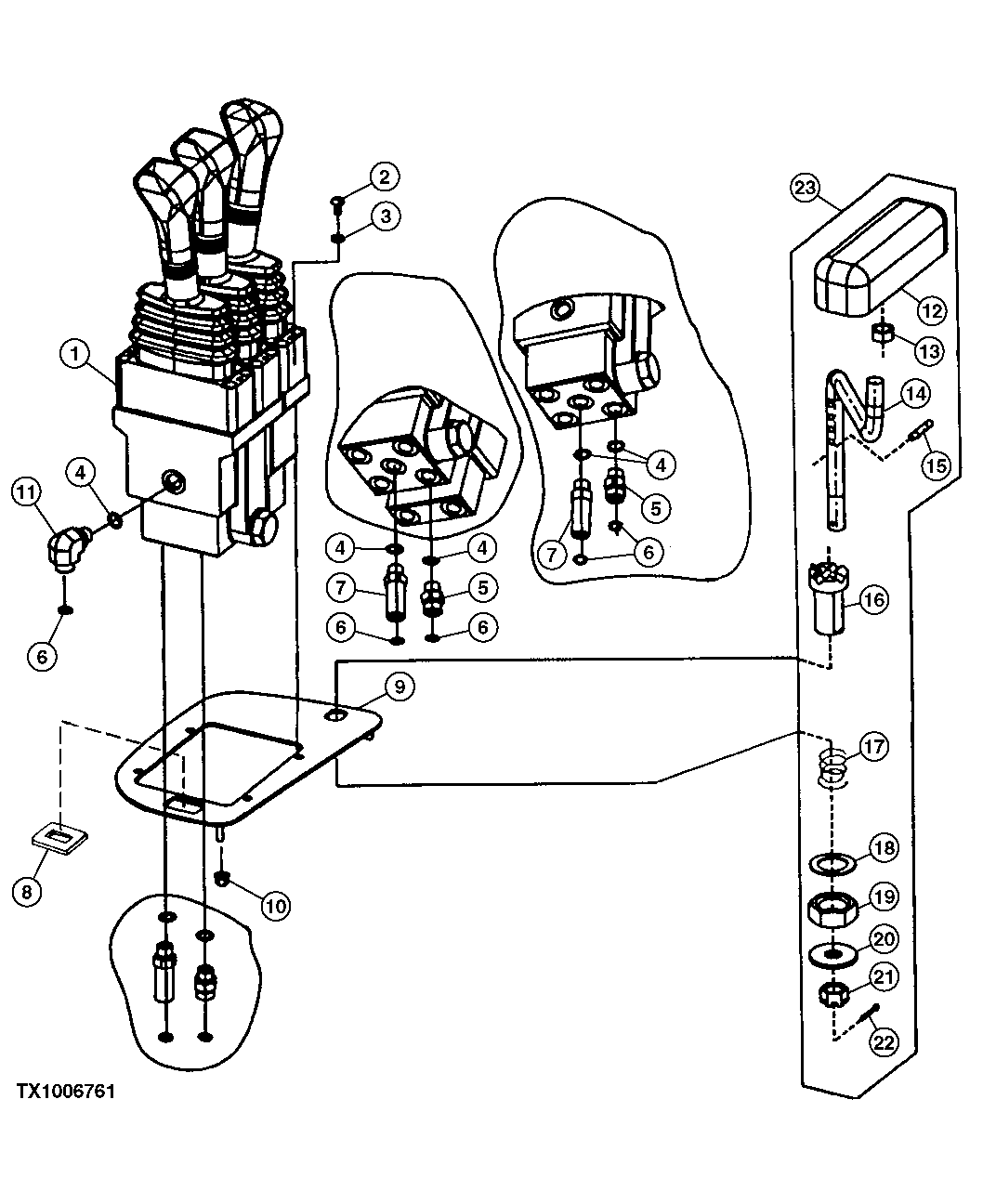

Two Lever Pilot Controller With or Without Third and Forth Functions (562231 - 585700)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT210210	1	Valve	(WITHOUT AUXILIARY)
1	AT210211	1	Hyd Actuated Control Valve	(WITH AUXILIARY), NLA
1	AT209628	1	Electronic Control Unit	(WITH TWO AUXILIARY SECTIONS) USE WITH TOOL CARRIER AND LOG LOADER, NLA
1	AT208129	1	Hyd Actuated Control Valve	(WITHOUT AUXILIARY) USE WITH TOOL CARRIER AND LOG LOADER, NLA
1	AT210212	1	Electronic Control Unit	(WITH TWO AUXILIARY SECTIONS), NLA
1	AT208130	1	Hyd Actuated Control Valve	(WITH AUXILIARY) USE WITH TOOL CARRIER AND LOG LOADER, NLA
2	21M7285	6	Screw	M6 X 12, (WITH AUXILIARY)
2	21M7285	4	Screw	M6 X 12, (WITHOUT AUXILIARY)
3	24M7054	6	Washer	6.400 X 12 X 1.600 mm, (WITH AUXILIARY)
3	24M7054	4	Washer	6.400 X 12 X 1.600 mm, (WITHOUT AUXILIARY)
4	R26448	8	O-Ring	(WITH AUXILIARY)
4	R26448	6	O-Ring	(WITHOUT AUXILIARY)
5	38H1160	6	Adapter Fitting	(WITH AUXILIARY)
5	38H1160	4	Adapter Fitting	(WITHOUT AUXILIARY)
6	T77613	8	O-Ring	(WITH AUXILIARY)
6	T77613	6	O-Ring	(WITHOUT AUXILIARY)
7	38H1212	1	Adapter Fitting	-
8	T171587	1	Label	-
9	AT224245	1	Plate	GRAY (WITH TWO AUXILIARY SECTIONS), NLA
9	AT224244	1	Plate	GRAY (WITHOUT AUXILIARY)
9	AT224243	1	Plate	GRAY (WITH ONE AUXILIARY SECTION)
9	AT203086	1	Plate	(WITHOUT AUXILIARY), NLA
9	AT203088	1	Plate	(WITH ONE AUXILIARY SECTION)
9	AT207968	1	Plate	(WITH TWO AUXILIARY SECTIONS), NLA
10	14M7397	3	Lock Nut	M6
11	38H1004	1	Elbow Fitting	-
12	AT162171	1	Plate	-
13	R27296	1	Nut	-
14	T171500	1	Rod	-
15	34H282	1	Spring Pin	3/16" X 1"
16	T171502	1	Support	-
17	T148177	1	Spring	-
18	12H328	1	Lock Washer	7/8"
19	14H810	1	Nut	7/8"
20	24M7180	1	Washer	13 X 37 X 3 mm
21	14H926	1	Nut	1/2"
22	11M7081	1	Cotter Pin	2.500 X 20 mm
23	-	1	Part 38	( AT206780 NLA), (ORDER COMPONENT PARTS)
..	AT209781	1	Seal Kit	CONTAINS ALL PARTS NECESSARY TO REPAIR AT210211 AND AT208130
..	AT209782	1	Seal Kit	CONTAINS ALL PARTS NECESSARY TO REPAIR AT210211 AND AT208130
..	AT115146	1	Seal Kit	PLUNGER PIN, (SUB FOR AT305841)
..	AT305842	4	O-Ring	BETWEEN STACKABLE SECTIONS

Two Lever Pilot Controller With or Without Third and Forth Functions (562231 - 585700)

Нет текстового описания
