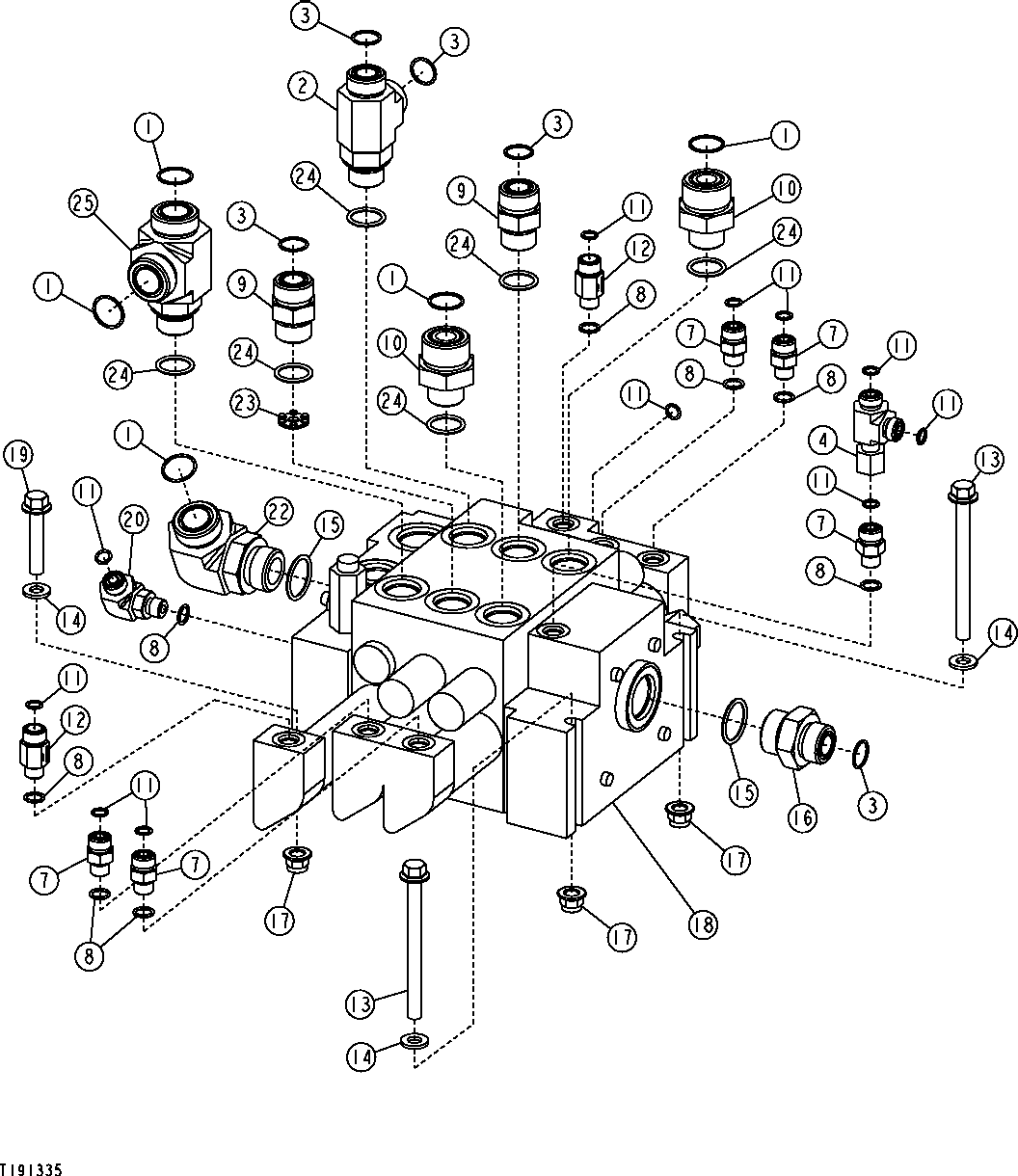

Three Spool Loader Control Valve (568718 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76938	5	O-Ring	-
2	38H1026	1	Tee Fitting	-
3	T77858	5	O-Ring	-
3	T77858	9	O-Ring	(USE WITH TOOL CARRIER)
4	38H1030	1	Tee Fitting	-
5	38H1033	2	Tee Fitting	(USE WITH TOOL CARRIER)
6	T77613	11	O-Ring	-
7	38H1160	5	Adapter Fitting	-
8	R26448	8	O-Ring	-
9	38H1163	2	Adapter Fitting	-
10	38H1179	2	Adapter Fitting	-
10	38H1163	2	Adapter Fitting	(USE WITH TOOL CARRIER)
12	AT220096	2	Check Valve	(SUB FOR (2) AT220388)
13	19M7944	2	Screw	M10 X 120
14	24M7239	3	Washer	10.700 X 21 X 2.500 mm
15	R29936	2	O-Ring	-
16	38H1194	1	Adapter Fitting	-
17	14M7400	3	Lock Nut	M10
18	AT225785	1	Spool Valve	(SUB FOR AT224137)
18	AT225788	1	Hyd Actuated Control Valve	(FOR USE WITH TOOL CARRIER), (SUB FOR AT224144)
18	AT225791	1	Spool Valve	(HIGH LIFT), (SUB FOR AT224146)
18	AT211574	1	Seal Kit	(INCLUDES SEALS FOR SEALING BETWEEN FOUR SECTION JOINTS) (NOT ILLUSTRATED)
19	19M8528	1	Screw	M10 X 55
20	38H1004	1	Elbow Fitting	-
22	38H1196	1	Adapter Fitting	-
22	38H1037	1	Elbow Fitting	-
23	T176944	1	Orifice	-
24	U12547	6	O-Ring	-
25	AT210663	1	Tee Fitting	-
25	38H1572	1	Tee Fitting	-

Three Spool Loader Control Valve (568718 - )
