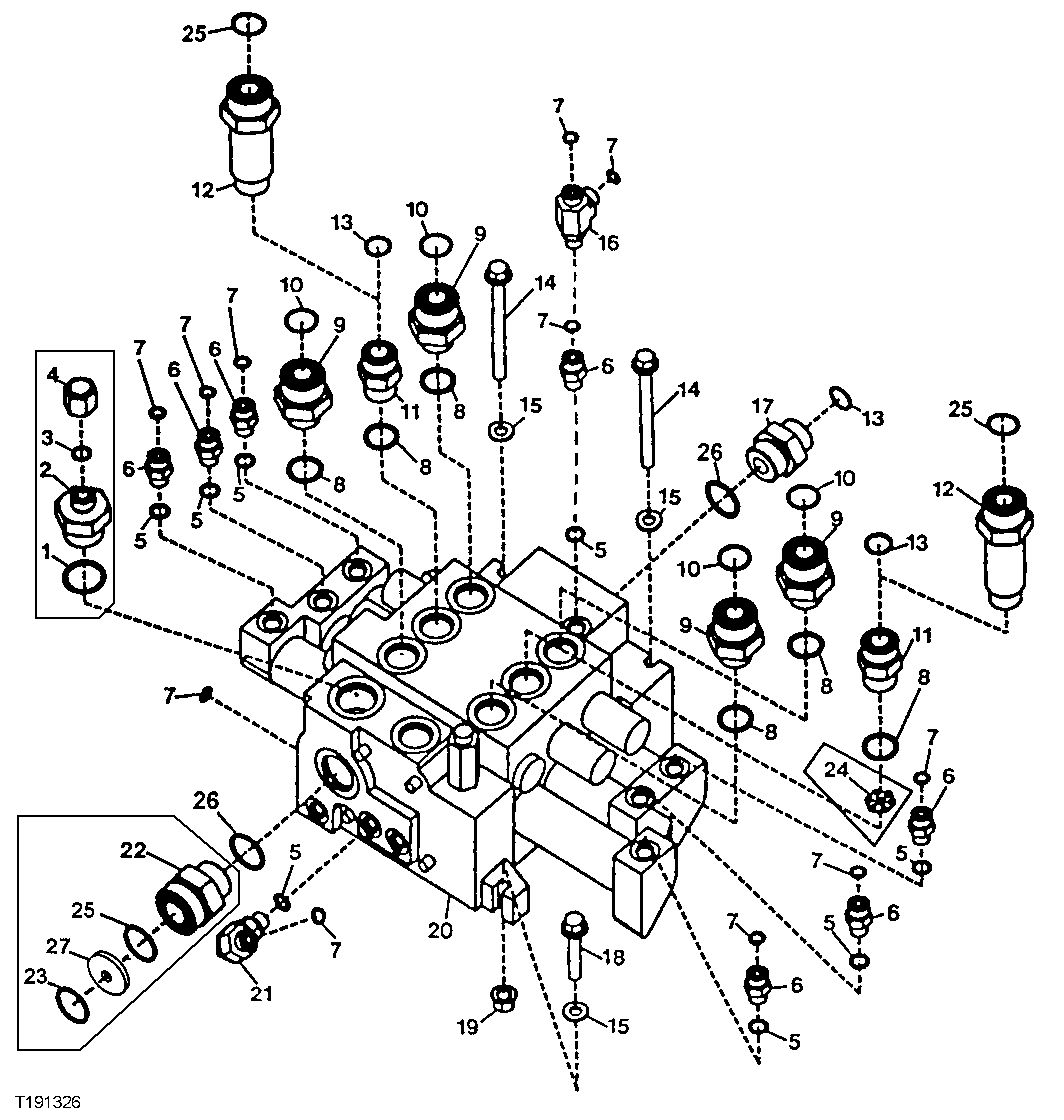

Three Spool Loader Control Valve ( - 568717)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	1	O-Ring	(BUCKET AND AUXILIARY SECTIONS)
2	38H1176	1	Adapter Fitting	-
3	T77857	1	O-Ring	-
4	38H1416	1	Fitting	-
5	R26448	8	O-Ring	-
6	38H1160	5	Adapter Fitting	(BUCKET AND AUXILIARY SECTIONS) (INLET SECTION)
6	AT220096	2	Check Valve	(BOOM SECTION) (DO NOT USE WITH T169955 ORIFICE), (SUB FOR (2) AT220388)
7	T77613	11	O-Ring	-
8	U12547	6	O-Ring	-
9	38H1179	4	Adapter Fitting	-
10	T76938	4	O-Ring	-
11	38H1163	2	Adapter Fitting	-
12	T170062	2	Fitting	(FOR USE WITH TOOL CARRIER)
13	T77858	3	O-Ring	-
14	19M7944	2	Screw	M10 X 120
15	24M7239	3	Washer	10.700 X 21 X 2.500 mm
16	38H1030	1	Tee Fitting	-
17	38H1194	1	Adapter Fitting	-
18	19M8528	1	Screw	M10 X 55
19	14M7400	3	Lock Nut	M10
20	AT225785	1	Spool Valve	(SUB FOR AT224137)
20	AT225788	1	Hyd Actuated Control Valve	(FOR USE WITH TOOL CARRIER), (SUB FOR AT224144)
20	AT225791	1	Spool Valve	(HIGH LIFT), (SUB FOR AT224146)
20	AT211574	1	Seal Kit	(INCLUDES SEALS FOR SEALING BETWEEN FOUR SECTION JOINTS) (NOT ILLUSTRATED)
21	38H1004	1	Elbow Fitting	-
22	38H1037	1	Elbow Fitting	-
22	38H1196	1	Adapter Fitting	-
23	T78612	2	O-Ring	-
23	T78612	1	O-Ring	-
24	T176944	1	Orifice	(USED ONLY WITH Z-BAR LINKAGE), (SUB FOR T172883)
25	T76938	2	O-Ring	(FOR USE WITH TOOL CARRIER)
25	T76938	3	O-Ring	-
26	R29936	2	O-Ring	-
27	T177440	1	Plate	Orifice
27	T201843	1	Orifice	(ORIFICE -16)

Three Spool Loader Control Valve ( - 568717)
