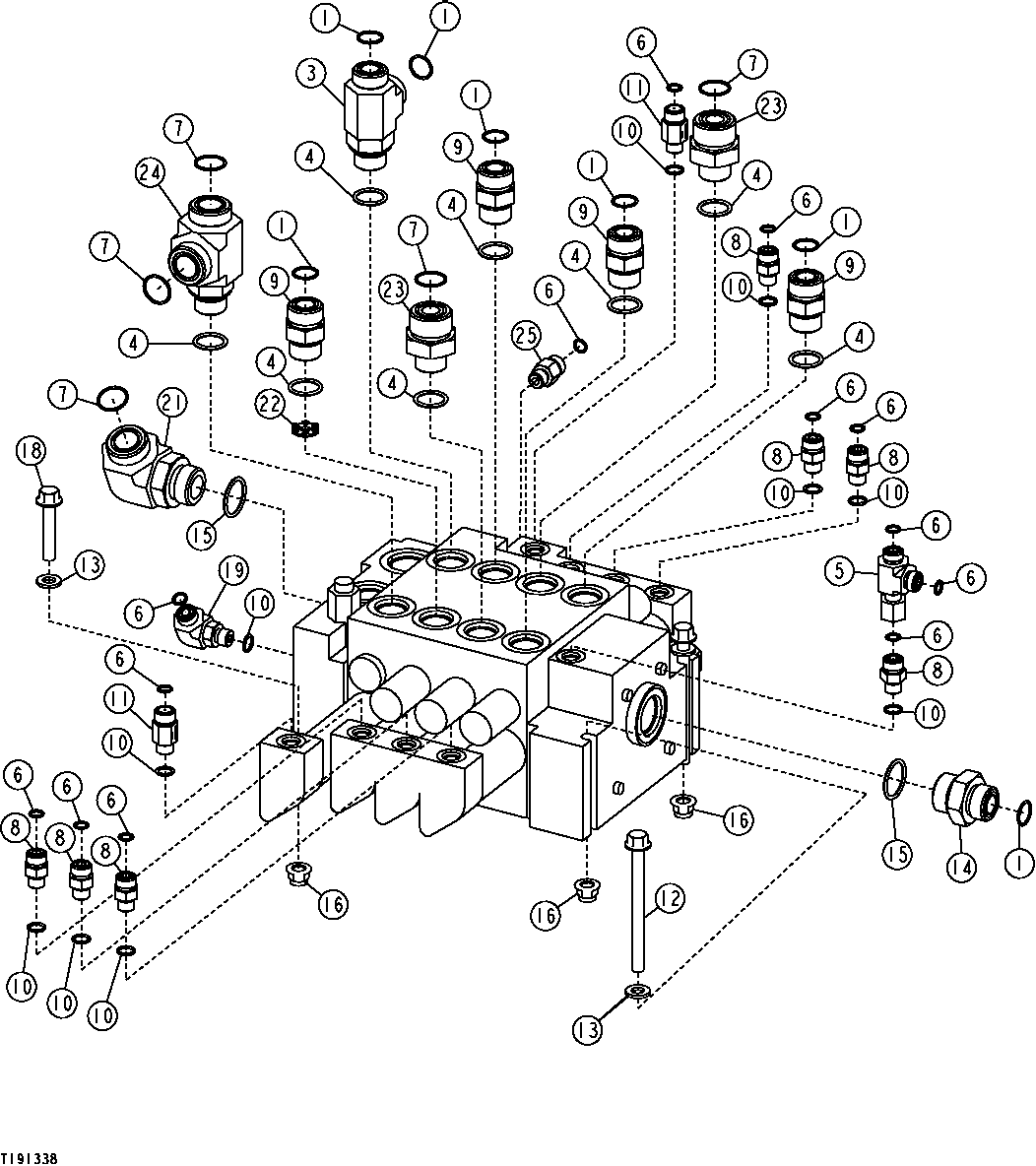

Four Spool Loader Control Valve (568718 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	11	O-Ring	(USE WITH TOOL CARRIER)
1	T77858	7	O-Ring	-
3	38H1026	1	Tee Fitting	-
4	U12547	8	O-Ring	-
5	38H1030	1	Tee Fitting	-
6	T77613	13	O-Ring	-
7	T76938	5	O-Ring	-
8	38H1160	7	Adapter Fitting	-
9	38H1163	4	Adapter Fitting	-
9	38H1163	6	Adapter Fitting	(USE WITH TOOL CARRIER)
10	R26448	10	O-Ring	-
11	AT220096	2	Check Valve	(SUB FOR AT220388)
12	19M7944	2	Screw	M10 X 120
13	24M7239	3	Washer	10.700 X 21 X 2.500 mm
14	38H1194	1	Adapter Fitting	-
15	R29936	2	O-Ring	-
16	14M7400	3	Lock Nut	M10
17	AT225786	1	Spool Valve	(SUB FOR AT224138)
17	AT225789	1	Spool Valve	(USE WITH TOOL CARRIER), (SUB FOR AT224145)
17	AT211574	1	Seal Kit	(INCLUDES SEALS FOR SEALING BETWEEN FOUR SECTION JOINTS)
18	19M8528	1	Screw	M10 X 55
19	38H1004	1	Elbow Fitting	-
21	38H1196	1	Adapter Fitting	-
21	38H1037	1	Elbow Fitting	-
22	T176944	1	Orifice	-
23	38H1179	2	Adapter Fitting	-
23	38H1163	2	Adapter Fitting	(USE WITH TOOL CARRIER)
24	AT210663	1	Tee Fitting	-
24	38H1572	1	Tee Fitting	-

Four Spool Loader Control Valve (568718 - )

Нет текстового описания
