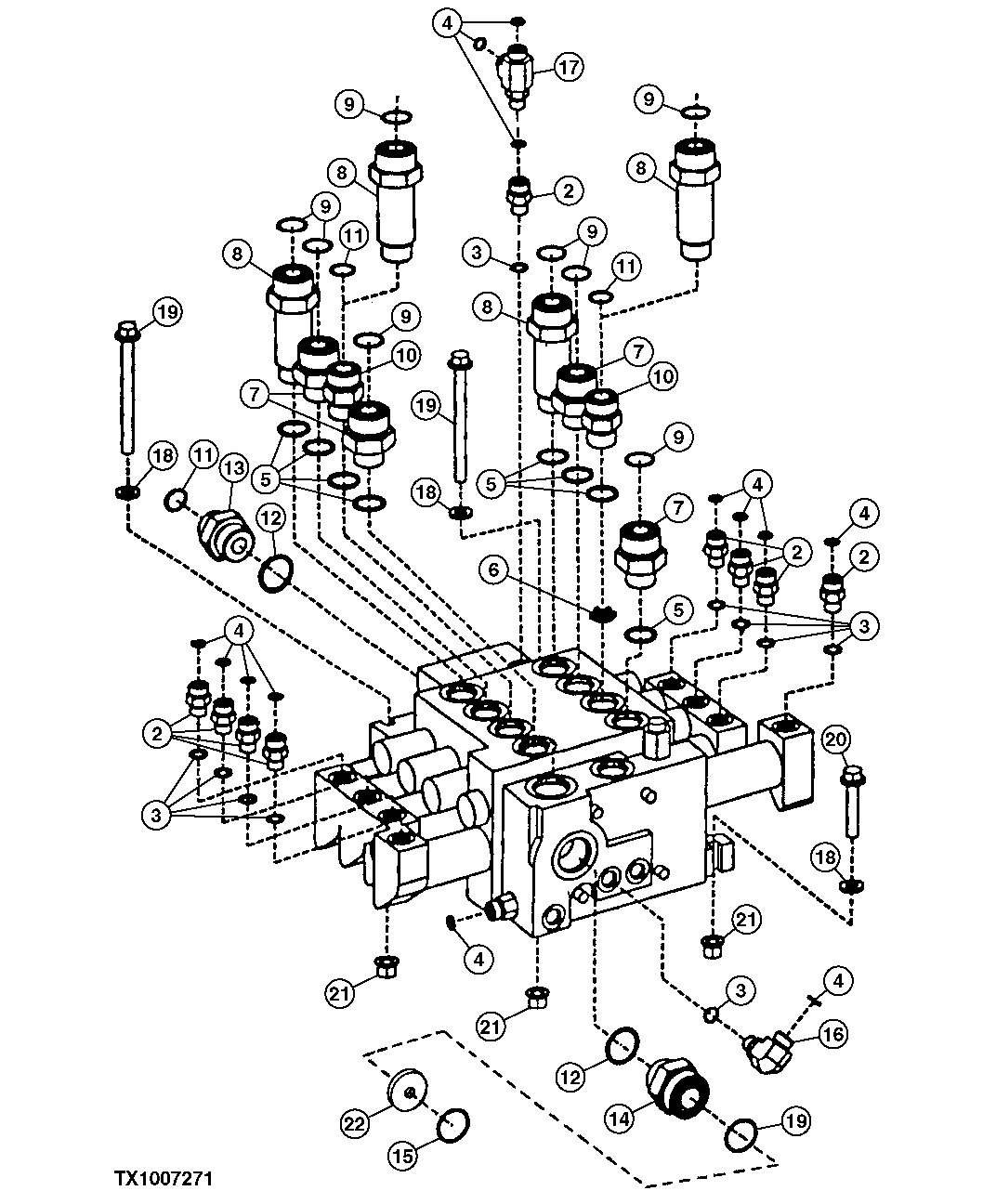

Four Spool Loader Control Valve ( - 568717)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT225789	1	Spool Valve	(USE WITH TOOL CARRIER), (SUB FOR AT224145)
1	AT211574	1	Seal Kit	(INCLUDES SEALS FOR SEALING BETWEEN FOUR SECTION JOINTS) (NOT ILLUSTRATED)
1	AT225786	1	Spool Valve	(SUB FOR AT224138)
2	38H1160	7	Adapter Fitting	(BUCKET AND AUXILIARY SECTIONS) (INLET SECTION)
2	AT220096	2	Check Valve	(SUB FOR <service-part qty="2">AT220388</service-part>)(BOOM SECTION) (DO NOT USE WITH <service-part>T169955</service-part> ORIFICE)
3	R26448	10	O-Ring	-
4	T77613	13	O-Ring	-
5	U12547	8	O-Ring	-
6	T176944	1	Orifice	(USE WITH Z-BAR LINKAGE), (SUB FOR T172883)
7	38H1179	4	Adapter Fitting	-
8	T170062	2	Fitting	-
9	T76938	6	O-Ring	-
9	T76938	7	O-Ring	-
10	38H1163	2	Adapter Fitting	-
11	T77858	3	O-Ring	-
12	R29936	2	O-Ring	-
13	38H1194	1	Adapter Fitting	-
14	38H1196	1	Adapter Fitting	-
14	38H1037	1	Elbow Fitting	-
15	T78612	2	O-Ring	-
15	T78612	1	O-Ring	-
16	38H1004	1	Elbow Fitting	-
17	38H1030	1	Tee Fitting	-
18	24M7239	3	Washer	10.700 X 21 X 2.500 mm
19	19M7944	2	Screw	M10 X 120
20	19M8528	1	Screw	M10 X 55
21	14M7400	3	Lock Nut	M10
22	T177440	1	Plate	Orifice
22	T201843	1	Orifice	(ORIFICE -16)
