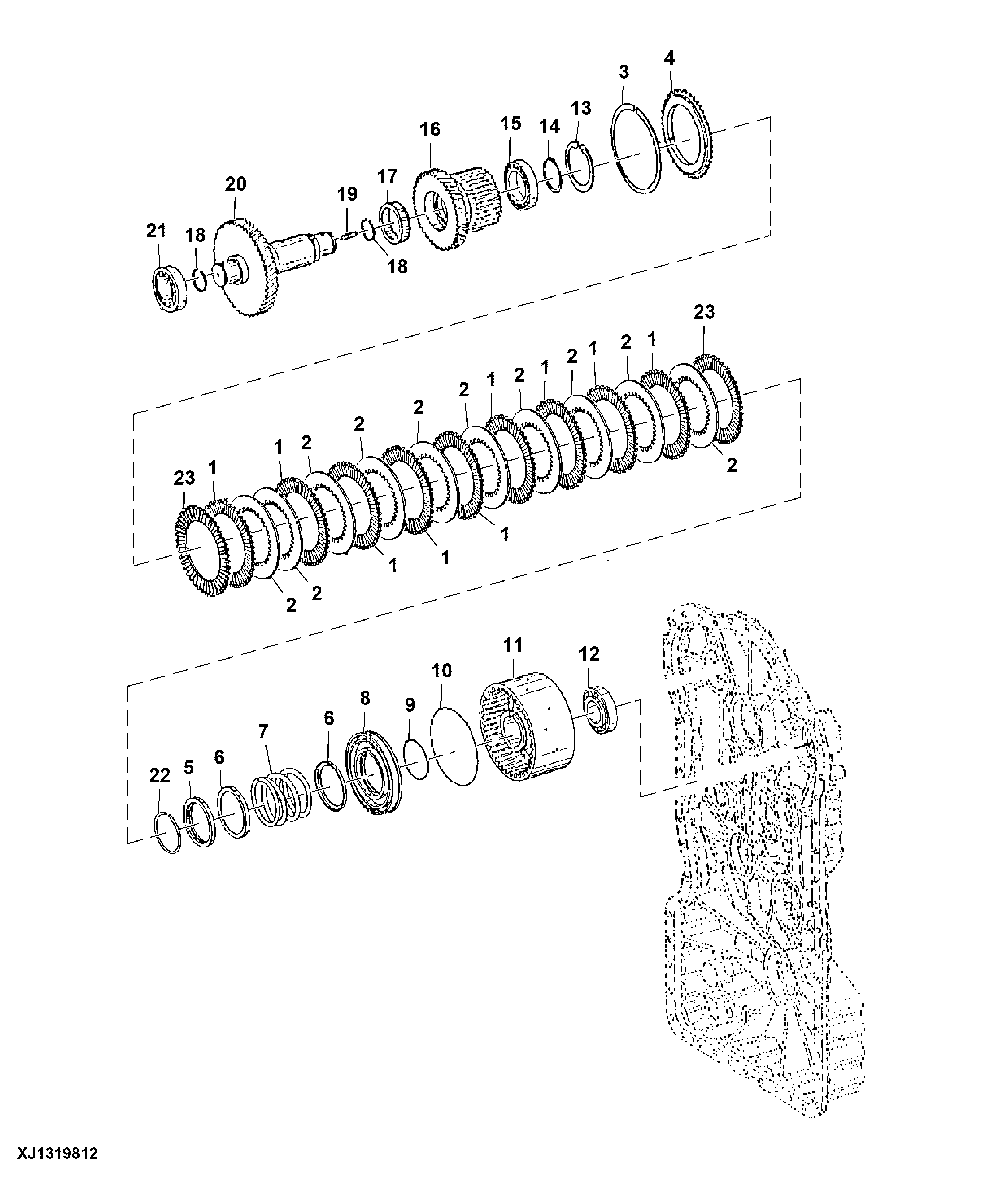

Forward Clutch Assembly Components ( - 001923)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T173637	9	Disk With Outer Spline	-
2	T173638	10	Disk With Inner Spline	-
3	T172247	1	Snap Ring	TK = 3.60 mm (0.141 inch)
3	T172251	1	Snap Ring	TK = 4.20 mm (0.165 inch)
3	T181873	1	Snap Ring	TK = 2.4 mm (0.095 inch)
3	T181874	1	Snap Ring	TK = 2.7 mm (0.106 inch)
3	T181875	1	Snap Ring	TK = 2.9 mm (0.116 inch)
3	T181876	1	Snap Ring	TK = 3.3 mm (0.128 inch)
4	T294876	1	Solid Shim	SUB FOR T173639
5	T173066	1	Snap Ring	-
6	T173644	2	Ring	-
7	T173065	1	Compression Spring	-
8	T173853	1	Piston	SUB FOR T171221
9	T173958	1	O-Ring	This Application, SUB FOR L53888
10	T173960	1	O-Ring	This Application, SUB FOR L53854
11	T172818	1	Disk	-
12	T294935	1	Bearing	IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. DO NOT SUBSTITUTE STANDARD BEARING., SUB FOR T171156
13	40M7060	1	Snap Ring	-
14	T159519	1	Snap Ring	-
15	T197553	1	Ball Bearing	SUB FOR T171218
16	T172817	1	Gear	-
17	T172302	1	Needle Bearing	-
18	T172115	2	Piston Ring	-
19	T171153	1	Stud	-
20	T294882	1	Pinion Shaft	SUB FOR T171217
21	T294935	1	Bearing	IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. DO NOT SUBSTITUTE STANDARD BEARING., SUB FOR T171156
22	T173067	1	Snap Ring	-
23	T173636	2	Disk With Outer Spline	-

Forward Clutch Assembly Components ( - 001923)
