Открытый узел

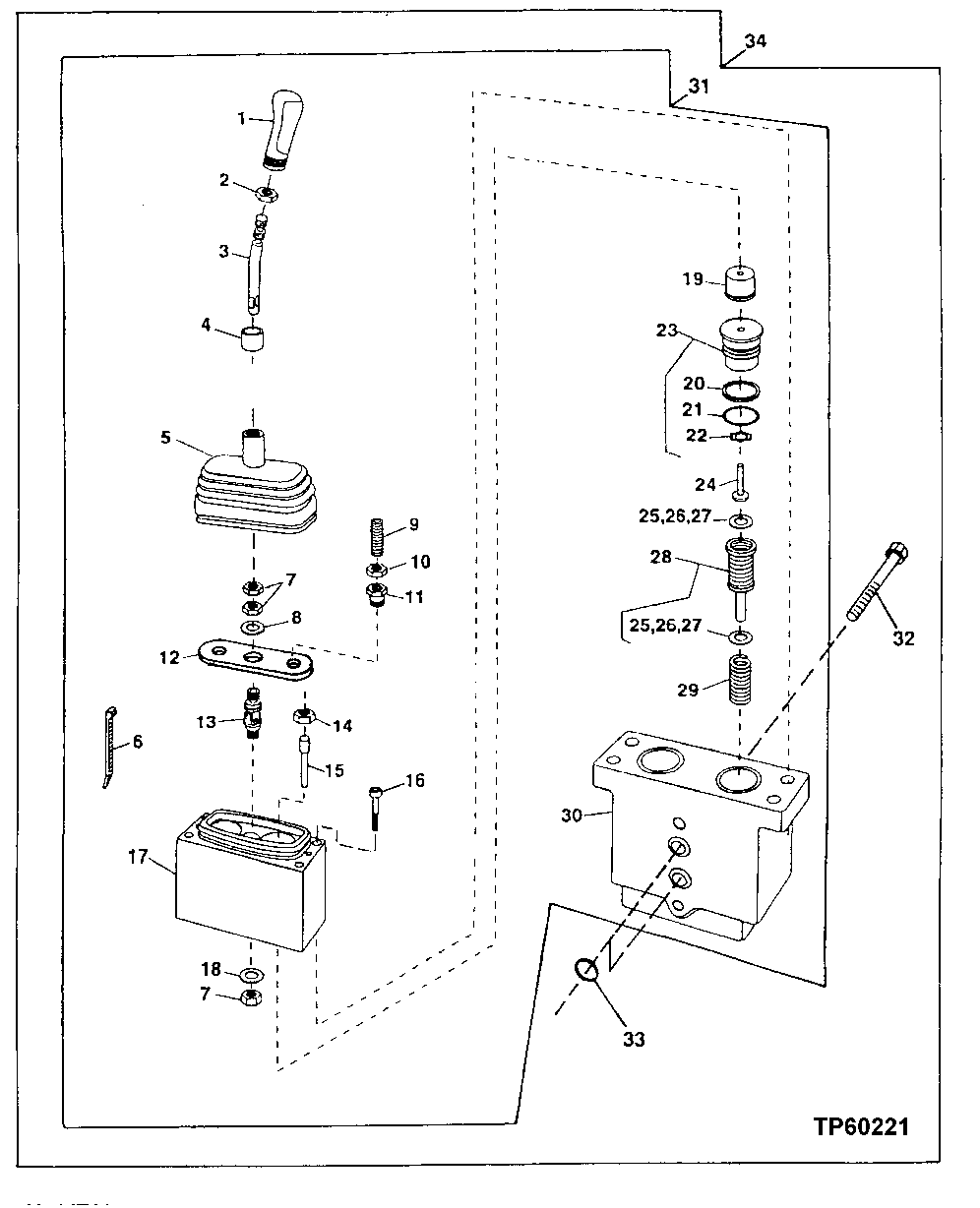

Auxiliary Controller (562231 - 585700)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT172629	1	Grip	-
2	T170269	1	Nut	-
3	T173226	1	Lever	Illustrated, USE WITH AT210215
3	T173229	1	Lever	Illustrated, USE WITH AT210213
4	AT208911	1	Retainer	-
5	T170295	1	Boot	ALSO ORDER AT208911
6	H77698	1	Tie Band	-
7	T173219	3	Nut	-
8	T173205	1	Washer	-
9	T172523	2	Set Screw	-
10	T170275	2	Nut	-
11	T170273	2	Fitting	-
12	T173210	1	Plate	-
13	AT210263	1	Universal Joint	-
14	T170272	2	Nut	-
15	T170274	2	Pin	-
16	T170367	4	Cap Screw	-
17	-	1	Part 18	SUB FOR AT210213, AT210214 OR AT210215
18	T172609	1	Washer	-
19	T170278	2	Bushing	-
20	T170307	1	Back-Up Ring	-
21	T170306	1	Seal	-
22	T131617	1	Ring	-
23	AT208178	2	Retainer	-
24	T170285	2	Plunger	-
25	T103092	1	Shim	TK = 0.102 mm
26	T103093	1	Shim	TK = 0.178 mm
27	T103094	1	Shim	TK = 0.381 mm
28	AT208182	2	Spool	-
29	T170288	2	Spring	-
30	-	1	Part 31	SUB FOR AT210213, AT210214 OR AT210215
31	AT210213	1	Hyd Actuated Control Valve	USE WITH SINGLE LEVER CONTROLLER
31	AT210214	1	Hyd Actuated Control Valve	USE WITH TWO-LEVER CONTROLLER, NLA
31	AT210215	1	Hyd Actuated Control Valve	(USE WITH TWO-LEVER CONTROLLER) (FOURTH FUNCTION AUXILIARY SECTION) (NOT ILLUSTRATED)
32	T170381	2	Cap Screw	USE WITH AT210214
32	T171072	2	Cap Screw	USE WITH AT210215
33	T13119	2	O-Ring	USE WITH THIRD FUNCTION ONLY
33	T13119	4	O-Ring	USE WITH FOURTH FUNCTION ONLY
34	AT225393	1	Kit	(I) THIRD FUNCTION TWO LEVER (WHOLE GOODS), SUB FOR AT206851
34	AT225391	1	Kit	(I) THIRD FUNCTION TWO LEVER (WHOLE GOODS), SUB FOR AT221676
34	-	1	Part 41	(I) ( AT225400 NLA) THIRD FUNCTION SINGLE LEVER (WHOLE GOODS), SUB FOR AT206852
34	-	1	Part 42	(I) THIRD FUNCTION SINGLE LEVER, SUB FOR AT221683 ( AT225397 NLA) (WHOLE GOODS))
34	AT225357	1	Kit	(I) THIRD FUNCTION SINGLE LEVER (TOOL CARRIER) (WHOLE GOODS)
34	AT225383	1	Kit	(I) THIRD FUNCTION TWO LEVER PLUS AUXILIARY (TOOL CARRIER) (WHOLE GOODS), (SUB FOR AT220355)
34	AT225385	1	Kit	(I) FOURTH FUNCTION FOUR LEVER (TOOL CARRIER) (WHOLE GOODS), (SUB FOR AT220357)

Auxiliary Controller (562231 - 585700)
