TRANSMISSION OIL LINES, FILTER AND UNLOADING VALVE (000307 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT122476	1	Oil Tube	-
1	TH103950	1	O-Ring	-
2	19M8334	4	Screw	M6 X 30
4	-	1	Part 6	( AT122216 NO LONGER AVAILABLE FOR SERVICE) (SUB T145959 BULK MATERIAL CUT TO 500 MM)
5	TY22467	2	Clamp	(SUB FOR TH101909, OR AR21839THIS APPLICATION ) (SUB FOR AT145650)
6	19M8505	4	Screw	M6 X 25
7	AT121200	1	Flange	-
8	TH103950	1	O-Ring	-
10	38H1004	1	Elbow Fitting	-
13	T77613	3	O-Ring	(SUB FOR AT121256)
15	12M7066	2	Lock Washer	10 mm
17	AT121602	1	Hydraulic Hose	-
18	AT123266	1	Hydraulic Hose	-
18	-	1	Part 24	(SUB FOR AT122895 ) (SUB AT123266 ) (ALSO ORDER 38H1160 AND R26448)
34	AT122896	1	Valve	-
35	38H1160	1	Adapter Fitting	(SUB FOR AT121305 AND AE48027)
36	T77613	2	O-Ring	(SUB FOR AT121256)
44	38H1160	1	Adapter Fitting	(SUB FOR AE48027)
44	38H1004	1	Elbow Fitting	(SUB FOR AT121308)
45	T77613	1	O-Ring	(SUB FOR AT121256)
45	T77613	2	O-Ring	(SUB FOR AT121256)
46	AT122897	1	Hydraulic Hose	-
47	38H1160	1	Adapter Fitting	(SUB FOR AT121305 AND AE48027)
49	19M7274	2	Cap Screw	M8 X 70
50	24M7055	2	Washer	8.400 X 16 X 1.600 mm
77	T24432	1	Clamp	(SUB FOR TH108595)
90	-	5	Part 41	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
91	H77698	10	Tie Band	-
95	T24432	1	Clamp	(SUB FOR TH108595)
3A	AT122367	1	Bracket	-
3B	AT187507	1	Bracket	-
10A	R26448	1	O-Ring	-
11A	-	1	Part 13	( 4191300 & AT122314 NO LONGER AVAILABLE), (ALSO ORDER (2) AT187516, (2) AT205811, AT187507 AND (2) 14M7274)
11B	4631976	1	Oil Filter	(SUB FOR 4191300 OR TH108402)
12A	38H1413	2	Elbow Fitting	(SUB FOR AT122242)
12B	AT187516	2	Elbow Fitting	-
14A	19M7402	2	Cap Screw	M10 X 25
14B	AT205811	2	Bolt	-
16A	U12547	2	O-Ring	-
16B	U46489	2	O-Ring	-
35A	R26448	1	O-Ring	-
44A	R26448	1	O-Ring	-
47A	R26448	1	O-Ring	-

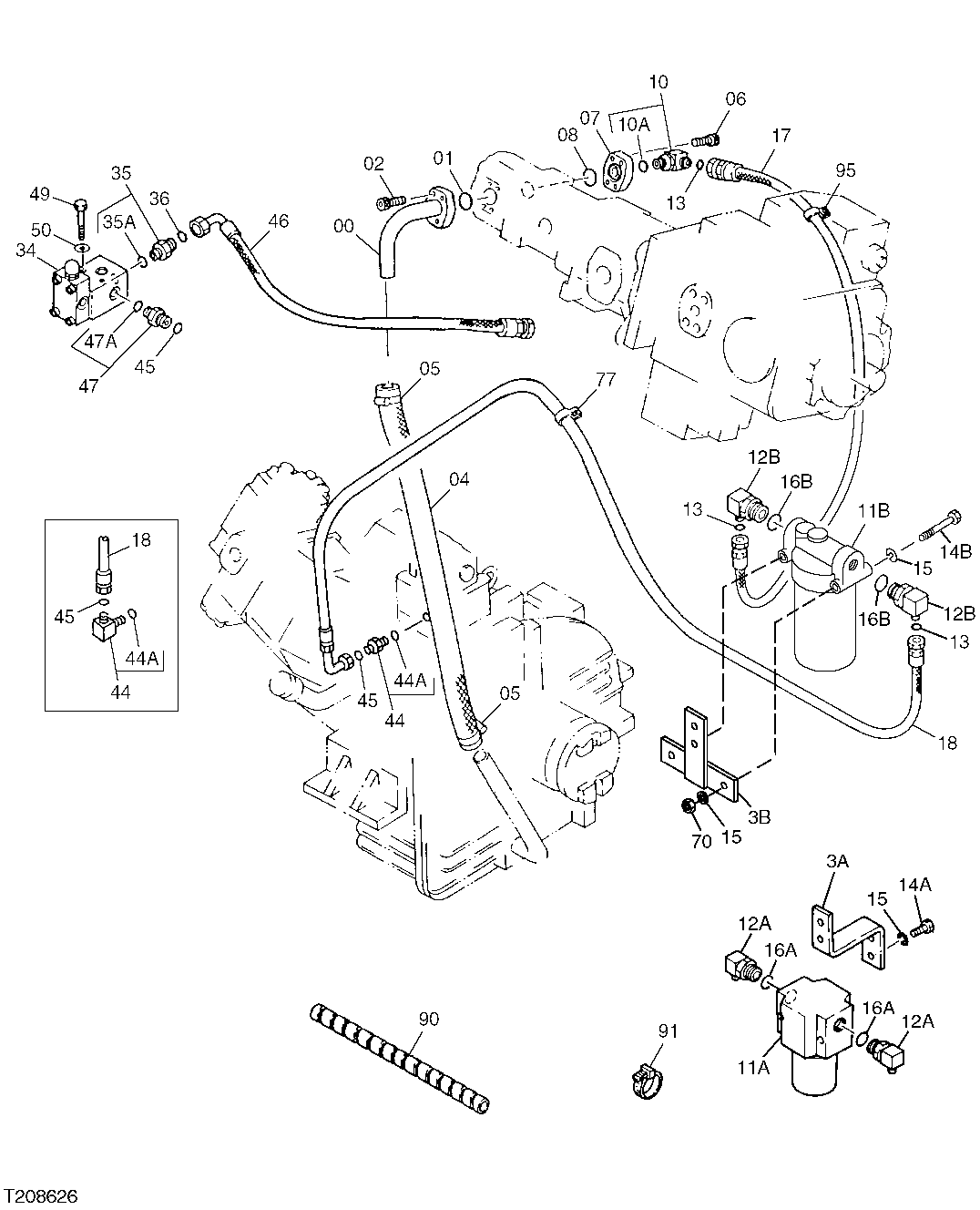

TRANSMISSION OIL LINES, FILTER AND UNLOADING VALVE (000307 - )
