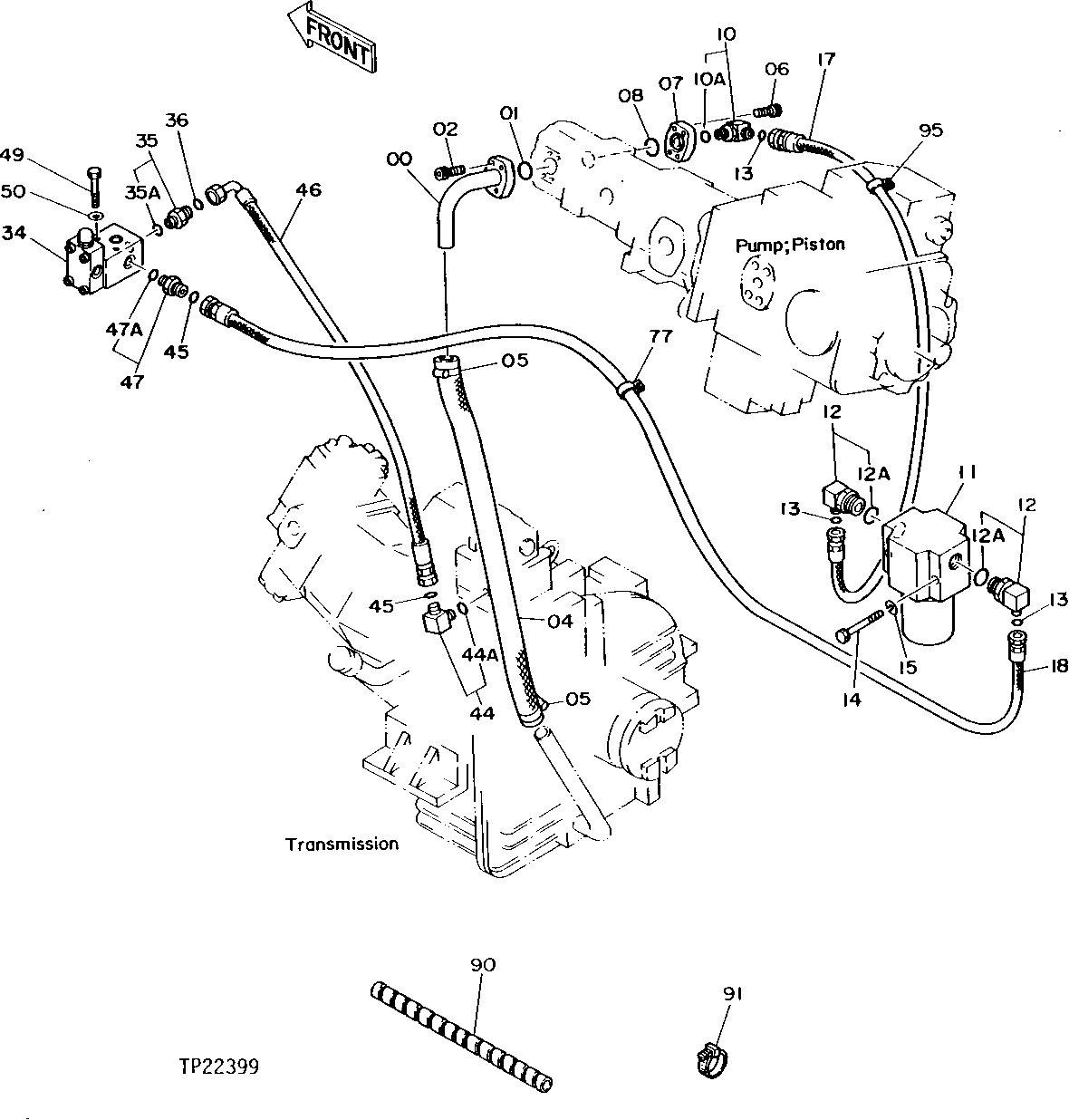

TRANSMISSION OIL LINES, FILTER AND UNLOADING VALVE ( - 000306)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT121766	1	Pipe	-
1	TH103950	1	O-Ring	-
2	19M8334	4	Screw	M6 X 30
4	-	1	Part 4	( AT121250 NO LONGER AVAILABLE FOR SERVICE) (SUB T145959 BULK MATERIAL CUT TO 500MM)
5	TY22467	2	Clamp	(SUB FOR TH101909, OR AR21839THIS APPLICATION ) (SUB FOR AT145650)
6	19M8505	4	Screw	M6 X 25
7	AT121200	1	Flange	-
8	TH103950	1	O-Ring	-
10	38H1435	1	Elbow Fitting	(SUB FOR AT121308)
11	AT121621	1	Filter	-
12	AT87415	2	Elbow Fitting	(SUB FOR AT121318)
13	T77613	3	O-Ring	(SUB FOR AT121256)
14	AT121864	2	Bolt	-
15	12M7066	2	Lock Washer	10 mm
17	AT121602	1	Hydraulic Hose	-
18	AT121603	1	Hydraulic Hose	-
34	AT121468	1	Valve	-
35	AE48027	1	Fitting	(SUB FOR AT121305)
36	T77613	1	O-Ring	(SUB FOR AT121256)
44	38H1435	1	Elbow Fitting	(SUB FOR AT121308)
45	T77613	2	O-Ring	(SUB FOR AT121256)
46	AT121339	1	Hydraulic Hose	17.4752" X 750 mm (29-1/2") X 17.4752", (SUB FOR AT121339)
47	AE48027	1	Fitting	(SUB FOR AT121305)
49	19M7274	2	Cap Screw	M8 X 70
50	24M7055	2	Washer	8.400 X 16 X 1.600 mm
77	T24432	1	Clamp	(SUB FOR TH108595)
90	-	5	Part 32	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
91	H77698	10	Tie Band	-
95	T24432	1	Clamp	(SUB FOR TH108595)
10A	R26448	1	O-Ring	-
12A	R29936	1	O-Ring	-
35A	R26448	1	O-Ring	-
44A	R26448	1	O-Ring	-
47A	R26448	1	O-Ring	-
