Открытый узел

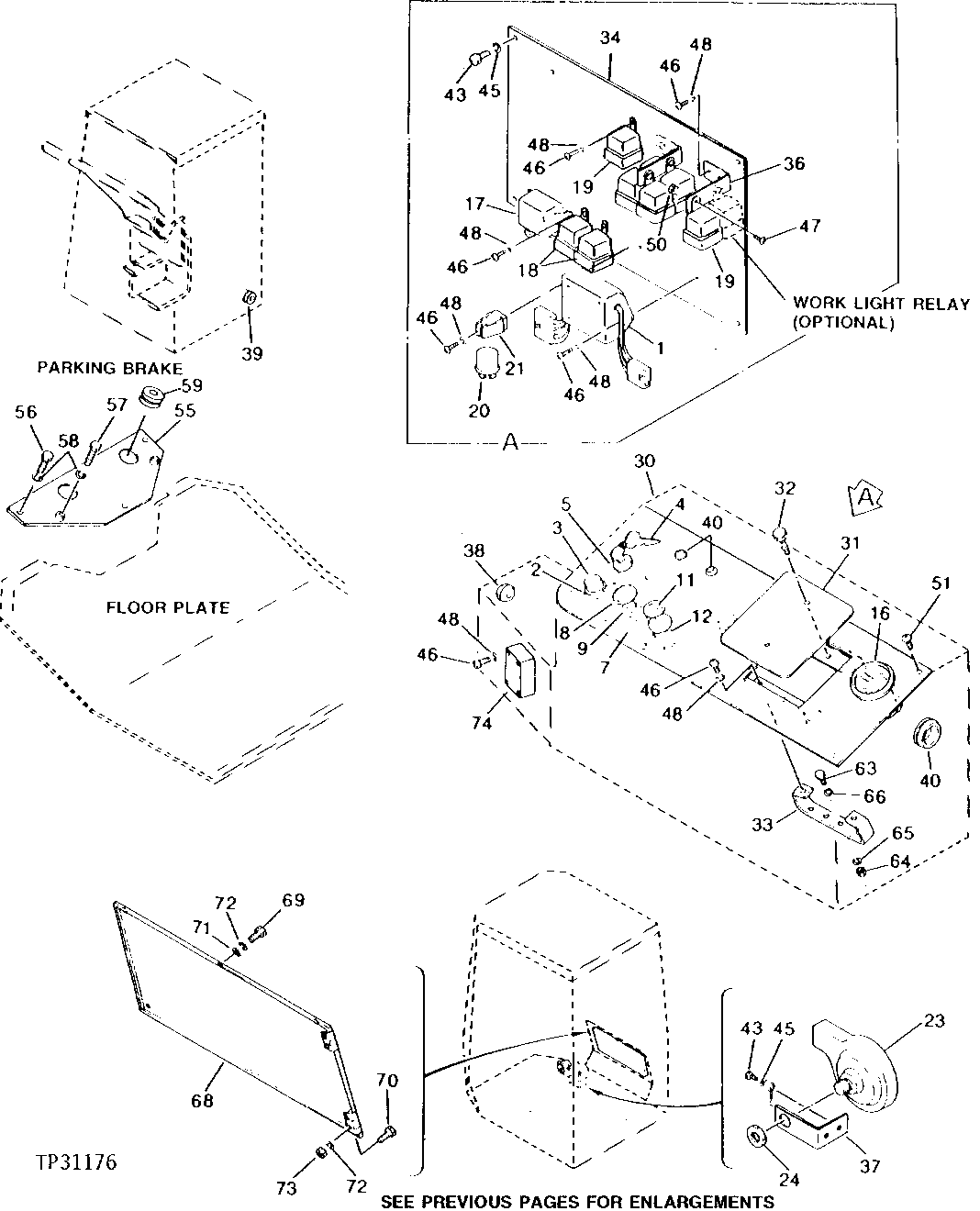

Right-Hand Console Switches and Relays (Canopy) ( - 000476)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT107670	1	Module	MONITOR LOGIC, (SUB FOR AT101644 ) (ALSO ORDER R78055 AND R78056)
2	AT25258	1	SWITCH	(STARTING AID)
3	T53707	1	LABEL	-
3	T55585	1	Cap	-
4	AT194969	1	Key	IGNITION, (SUB FOR TH108552 AND AT147803)
5	4237505	1	SWITCH	IGNITION, (SUB FOR TH108551 OR AT122820)
7	AT39726	1	SWITCH	LIGHT
8	AT25440	1	KNOB	-
9	T23884	1	NUT	-
11	AR60937	1	Electrical Lighter	-
12	AT78633	1	Housing	-
16	AT226353	1	Hour Meter	(SUB FOR AT86509)
17	AT103228	1	Relay	ACCESSORY
18	AT103228	1	Relay	STARTER
18	AT75769	2	Relay	-
19	AT75769	5	Relay	-
19	AT75769	6	Relay	-
20	AU41465	1	Flasher	TURN SIGNAL
20	CB01484165	1	Flasher	TURN SIGNAL (HEAVY DUTY) (X TERMINAL: POWER) (L TERMINAL: OUTPUT)
21	T29417	1	BRACKET	-
23	AT39043	1	High Note Horn	-
24	R11278	1	Nut	-
30	AT122142	1	Panel	-
31	AT121978	1	Cover	FUSE BLOCK
32	AT121972	2	Screw	-
33	AT122154	2	Bracket	-
34	AT122153	1	Plate	-
36	AT121965	2	Angle	-
37	AT121969	1	Bracket	-
38	TH110221	1	Grommet	-
39	AT122152	1	Grommet	-
40	TH106275	1	Grommet	-
41	AT121326	2	Bushing	-
43	19M7865	6	Screw	M8 X 16
45	12M7065	6	Lock Washer	8 mm
46	21M7285	20	Screw	M6 X 12
47	21M7267	3	Screw	M6 X 20
48	12M7006	23	Lock Washer	6 mm
50	14M7272	3	Nut	M6
51	T108221	8	Screw	-
55	AT122136	1	Plate	-
56	19M7402	2	Cap Screw	M10 X 25
57	19M8451	3	Cap Screw	M10 X 14
58	12M7066	5	Lock Washer	10 mm
59	U15091	2	Grommet	-
63	21M7022	8	Screw	M5 X 20
64	14M7297	8	Nut	M5
65	12M7064	8	Lock Washer	5 mm
66	24M7027	8	Washer	5.300 X 10 X 1 mm
68	AT122147	1	Cover	-
69	19M7865	4	Screw	M8 X 16
70	19M7162	4	Cap Screw	M8 X 16
71	24M7055	4	Washer	8.400 X 16 X 1.600 mm
72	12M7065	8	Lock Washer	8 mm
73	14M7273	4	Nut	M8
74	AT122561	1	Transmission Controller	(SUB AT123113 AND AT123114)
74	AT123113	1	Transmission Controller	(SUB FOR AT122968 AND AT122676 ) (ALSO ORDER AT123114)

Right-Hand Console Switches and Relays (Canopy) ( - 000476)
