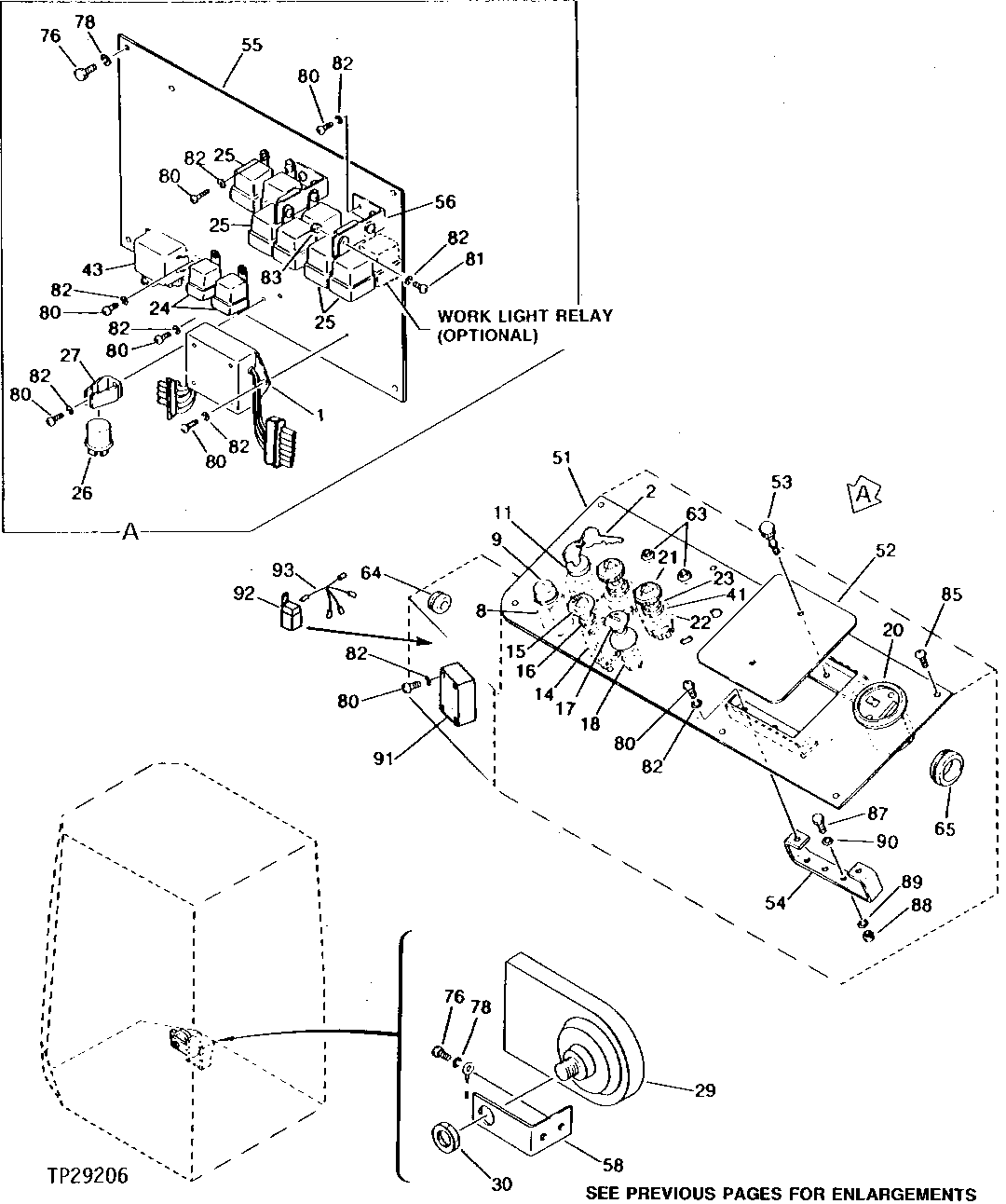

Right-Hand Console Switches and Relays (Cab With Heater) ( - 000686)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT134934	1	Module	-
1	AT107670	1	Module	(SUB FOR AT101644 ) (ALSO ORDER R78055 AND R78056)(MONITOR LOGIC)
2	AT194969	1	Key	IGNITION, (SUB FOR TH108552 AND AT147803)
8	AT25258	1	SWITCH	START AID
9	T55585	1	Cap	-
9	T53707	1	LABEL	-
11	4237505	1	SWITCH	IGNITION, (SUB FOR TH108551, AT122820)
14	AT39726	1	SWITCH	LIGHT
15	AT25440	1	KNOB	-
16	T23884	1	NUT	-
17	AR60937	1	Electrical Lighter	-
18	AT78633	1	Housing	-
20	AT226353	1	Hour Meter	(SUB FOR AT86509)
21	AT60729	2	KNOB	-
22	AT73836	2	SWITCH	WIPER
23	E46066	2	Nut	-
24	AT103228	1	Relay	STARTER
24	AT75769	2	Relay	-
25	AT75769	8	Relay	-
25	AT75769	9	Relay	-
26	AU41465	1	Flasher	-
26	CB01484165	1	Flasher	(HEAVY DUTY) (X TERMINAL: POWER) (L TERMINAL: OUTPUT)
27	T29417	1	BRACKET	-
29	AT39043	1	High Note Horn	-
30	R11278	1	Nut	-
41	R44165	2	Lock Nut	-
43	AT103228	1	Relay	ACCESSORY RELAY
51	AT122971	1	Panel	(SUB FOR AT122135)
52	AT121978	1	Cover	FUSE BLOCK
53	AT121972	2	Screw	-
54	AT122154	2	Bracket	-
55	AT122153	1	Plate	-
56	AT121965	2	Angle	-
58	AT121969	1	Bracket	-
63	AT121326	2	Bushing	-
64	TH110221	1	Grommet	-
65	TH106275	1	Grommet	-
76	19M7865	6	Screw	M8 X 16
78	12M7065	6	Lock Washer	8 mm
80	21M7285	21	Screw	M6 X 12
81	21M7267	4	Screw	M6 X 20
82	12M7006	25	Lock Washer	6 mm
83	14M7272	4	Nut	M6
85	T108221	8	Screw	-
87	21M7022	8	Screw	M5 X 20
88	14M7297	8	Nut	M5
89	12M7064	8	Lock Washer	5 mm
90	24M7027	8	Washer	5.300 X 10 X 1 mm
91	AT122561	1	Transmission Controller	(SUB AT123113 AND AT123114)
91	AT123113	1	Transmission Controller	(SUB FOR AT122968 AND AT122676 ) (ALSO ORDER AT123114)
92	AT75769	1	Relay	-
93	AT123126	1	Wiring Harness	-

Right-Hand Console Switches and Relays (Cab With Heater) ( - 000686)
