Main Wiring Harness (Cab With Heater) (000877 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT123246	1	Wiring Harness	(SUB FOR AT123246)(REAR FRAME)
1	AT123007	2	Wiring Lead	-
2	AT123016	1	Wiring Harness	(ENGINE)
3	AT123006	1	Wiring Harness	(SUB AT123484 AND AT123485)(FRONT FRAME)
3	AT123484	1	Wiring Harness	-
4	AT121956	1	Wiring Harness	-
5	AT123488	1	Battery Cable	(SUB FOR AT102983 ) (ALSO ORDER T107117, R44302, T74405)
6	AR69238	1	BATTERY CABLE	(SUB FOR AT116118)(GROUND)
7	R36545	1	Ground Cable	-
8	AT123008	1	Wiring Harness	(USE- THEN SUB AT123182), (FRONT CONSOLE)
8	AT157164	1	Wiring Harness	(SUB FOR AT123008, AT123182 ) (USE WITH AT169957)
9	AT123017	1	Wiring Harness	(FLOOR PLATE)
10	AT122011	1	Wiring Lead	-
11	AT122012	1	Wiring Lead	-
12	AT123009	1	Wiring Harness	-
13	AT123010	1	Connector	-
15	T28585	2	Electrical Connector Assy	-
16	T28586	2	Electrical Connector Assy	-
18	TH110500	1	Diode	-
20	H77698	10	Tie Band	(SUB FOR M88199)
21	AR65293	2	Clamp	(SUB FOR AR21840, THIS APPLICATION)
25	T30367	18	Clamp	-
26	TH109649	8	Clip	-
27	TH108600	8	Clip	-
28	TH108598	4	Clip	-
29	R73384	8	Clamp	(SUB FOR TH108597 OR 4190253)
30	T28949	6	Clamp	(SUB FOR TH108460 OR 4190273)
31	T28949	6	Clamp	(SUB FOR TH108458 OR 4190274)
32	T24432	2	Clamp	(SUB FOR TH108595)
33	R72659	1	Clamp	(SUB FOR TH108594 OR 4235654)
34	4215445	1	Clamp	(SUB FOR AT121981)
35	T32854	2	Clamp	(SUB FOR AT121964)
37	19M8324	58	Cap Screw	M10 X 16
38	19M7938	3	Cap Screw	M10 X 20
39	12M7066	63	Lock Washer	10 mm
39	24M7028	1	Washer	10.500 X 20 X 2 mm
40	14M7274	2	Nut	M10
45	AT122017	1	Bolt	-
46	12H317	1	Lock Washer	9/16"
50	19H1648	1	Cap Screw	3/8" X 3/4"
51	AT123012	1	Bracket	-
52	AT123013	1	Bracket	-
54	21M7285	2	Screw	M6 X 12
57	AT123463	1	Wiring Harness	(SUB FOR AT123014)
60	AT123485	1	Wiring Harness	-
63	19M7162	1	Cap Screw	M8 X 16
64	12M7065	1	Lock Washer	8 mm
65	14M7273	1	Nut	M8
0A	AT123247	1	Connector	FUSIBLE LINK (100 AMP FUSE), (SUB FOR AT123380)
0B	AT123248	1	Strap	-

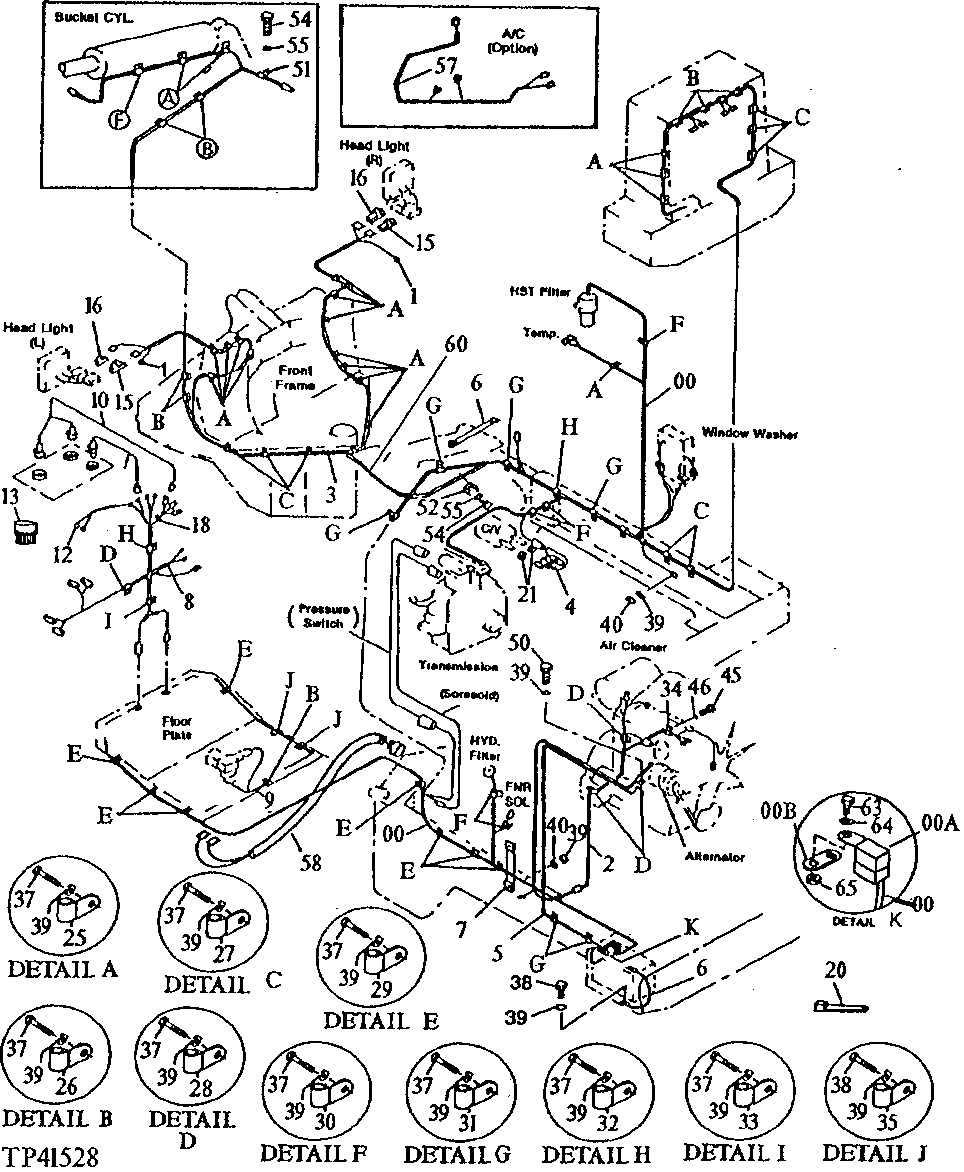

Main Wiring Harness (Cab With Heater) (000877 - )
