Main Wiring Harness (Cab With Heater) ( - 000476)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT123099	1	Wiring Harness	-
0	AT121841	1	Wiring Harness	-
0	AT121841	1	Wiring Harness	-
1	AT121958	1	Wiring Harness	-
2	AT123098	1	Wiring Harness	-
3	AT121947	1	Wiring Harness	-
4	AT121956	1	Wiring Harness	-
5	AT102983	1	Cable	(ALSO ORDER T107117 BATTERY COVER AND R44302 BAND)
6	AR69238	1	BATTERY CABLE	(SUB FOR AT116118)
6	AT72173	1	BATTERY CABLE	(USE WITH DUAL BATTERIES), (SUB FOR AT116119)
7	R36545	2	Ground Cable	-
8	AT122497	1	Wiring Harness	-
9	AT121957	1	Wiring Harness	-
10	AT122011	1	Wiring Lead	-
11	AT122012	1	Wiring Lead	-
15	T28585	2	Electrical Connector Assy	-
16	T28586	2	Electrical Connector Assy	-
18	TH110500	1	Diode	-
20	H77698	10	Tie Band	(SUB FOR TH102001 AND M88199)
21	AR65293	2	Clamp	(SUB FOR AR21840, THIS APPLICATION)
24	TH108601	2	Clip	-
25	TH109650	20	Clip	-
26	TH109649	7	Clip	-
27	TH108600	9	Clip	-
28	TH108598	3	Clip	-
29	R73384	11	Clamp	(SUB FOR TH108597 OR 4190253)
30	T28949	17	Clamp	(SUB FOR TH108460 OR 4190273)
31	T28949	4	Clamp	(SUB FOR TH108458 OR 4190274)
32	T24432	2	Clamp	(SUB FOR TH108595)
33	R72659	4	Clamp	(SUB FOR TH108594 OR 4235654)
34	4215445	1	Clamp	(SUB FOR AT121981)
35	AT121964	2	Clip	-
37	19M8324	66	Cap Screw	M10 X 16
38	19M7938	9	Cap Screw	M10 X 20
39	12M7066	77	Lock Washer	10 mm
40	14M7274	2	Nut	M10
41	14M7272	1	Nut	M6
42	24M7054	1	Washer	6.400 X 12 X 1.600 mm
43	12M7006	1	Lock Washer	6 mm
45	AT122017	1	Bolt	-
46	12H294	1	Lock Washer	5/8"
47	14M7297	3	Nut	M5
48	24M7027	3	Washer	5.300 X 10 X 1 mm
49	12M7064	3	Lock Washer	5 mm

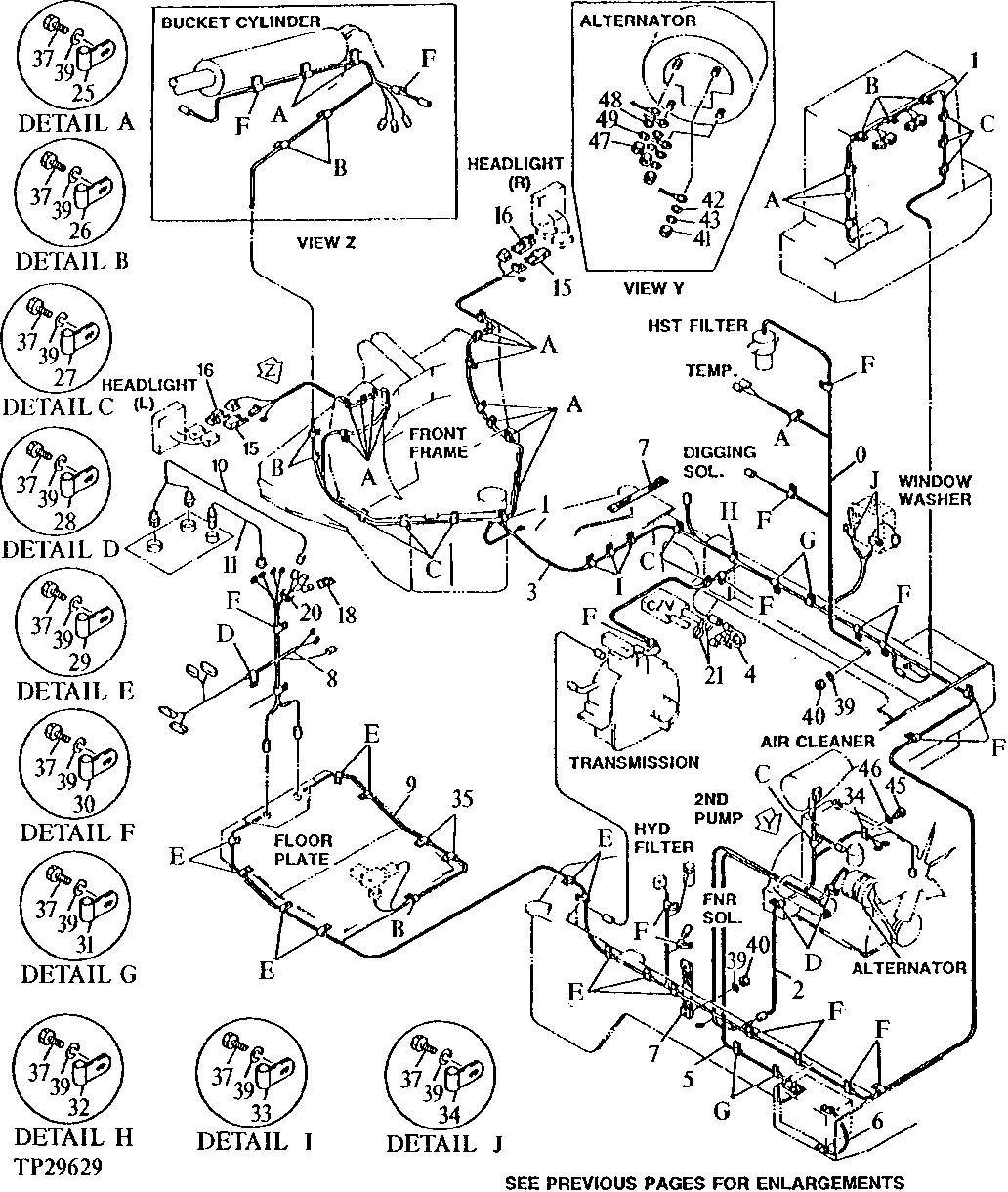

Main Wiring Harness (Cab With Heater) ( - 000476)

Нет текстового описания
